Housing:

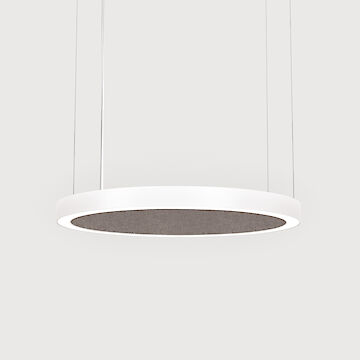

Extruded Aluminum made of 2.375" wide profile. LED surface-mounted luminaire. Direct only light distribution. 13 different diameters from 2' to 26'. Fully enclosed and damp rated.
Optical System:
Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting.
Surface Finish:
Surface white, silver, graphite, black, champagne, or copper coated. For further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low, Medium, or High Power. Custom lumen output upon request. Lifetime L85/50000h.
Certification & Warranty:
cETLus. 5 Years Warranty.
Product adjustments
Snow White
Radiant Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (in) | Optical system | Surface finish | Color temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| 1RA3AWD-835E-D900 | Ringo Star-A3 | D=35,4'' | Microprismatic screen | Snow White | 3500K | Dimmable (0-10V) | 3190lm | 40W | |
| 1RA3ABD-835M-D900 | Ringo Star-A3 | D=35,4'' | Microprismatic screen | Jet Black | 3500K | Dimmable (0-10V) | 4650lm | 59W | |
| 1RA3ABE-830E-D600 | Ringo Star-A3 | D=23,6'' | Microprismatic screen | Jet Black | 3000K | Switchable | 1870lm | 25W | |
| 1RA3OWE-840E-D600 | Ringo Star-A3 | D=23,6'' | Opal diffuser | Snow White | 4000K | Switchable | 2170lm | 25W | |
| 1RA3AWD-827M-D2000 | Ringo Star-A3 | D=78,7'' | Microprismatic screen | Snow White | 2700K | Dimmable (0-10V) | 10033lm | 142W | |
| 1RA3AWE-835E-D1200 | Ringo Star-A3 | D=47,2'' | Microprismatic screen | Snow White | 3500K | Switchable | 4450lm | 57W | |
| 1RA3ASD-830E-D2500 | Ringo Star-A3 | D=98,4'' | Microprismatic screen | Radiant Silver | 3000K | Dimmable (0-10V) | 8546lm | 114W | |
| 1RA3ASE-830H-D4000 | Ringo Star-A3 | D=157,5'' | Microprismatic screen | Radiant Silver | 3000K | Switchable | 27367lm | 405W | |
| 1RA3ABD-830H-D600 | Ringo Star-A3 | D=23,6'' | Microprismatic screen | Jet Black | 3000K | Dimmable (0-10V) | 3703lm | 53W | |
| 1RA3ABE-827E-D3000 | Ringo Star-A3 | D=118,1'' | Microprismatic screen | Jet Black | 2700K | Switchable | 10509lm | 138W |
