Housing:
Extruded Aluminum. LED surface-mounted luminaire for walls or ceilings made of 2.125" wide profile. Direct only light distribution. Bespoke lengths possible. Fully enclosed and damp rated.
Optical System:
Direct light using precision lenses with louver for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louver available in various color finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Recessed screen with optimized glare reduction and decorative lighting impact.
Surface Finish:
Outer housing and all-around reflector ring available in various finishes and combinations. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low, Medium, or High Power. Custom lumen output upon request. Lifetime L85/50000h.
Certification & Warranty:
cETLus.
5 Years Warranty.
Product adjustments
Snow White | Snow White
Satin Silver | Snow White
Satin Silver | Jet Black
Jet Black | Satin Gold

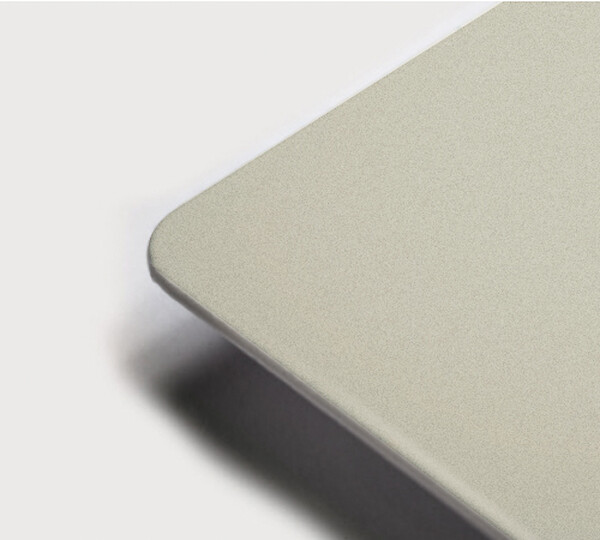

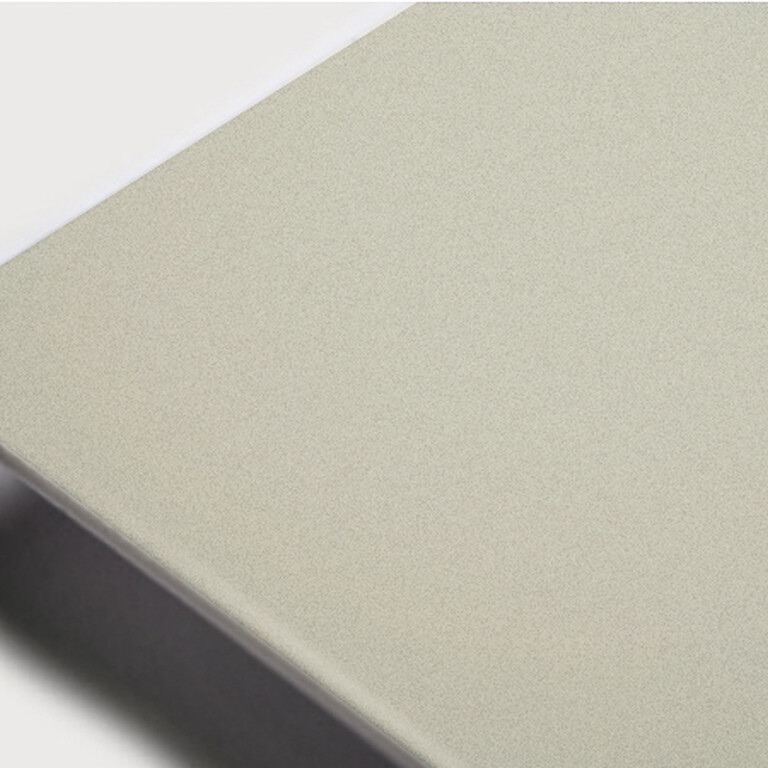

Jet Black | Anodic Champagne
Snow White | Satin Copper
Snow White | Snow White
Satin Silver | Snow White
Jet Black | Satin Silver
Jet Black | Jet Black
Jet Black | Satin Gold
Satin Copper | Snow White
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (in) | Optical system | Surface finish | Color temperature | Control | Reflector Color Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LA9AWE-830E-Lxxxx-W | Matric-A9 | L=xxxx'' | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Snow White | 281lm/ft | 3W/ft | |
| 1LA9AWE-830E-Lxxxx-B | Matric-A9 | L=xxxx'' | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Jet Black | 281lm/ft | 3W/ft | |
| 1LA9AWE-830E-Lxxxx-G | Matric-A9 | L=xxxx'' | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Satin Gold | 281lm/ft | 3W/ft | |
| 1LA9AAE-830E-Lxxxx-A | Matric-A9 | L=xxxx'' | Microprismatic screen | Satin Silver | 3000K | Switchable | Reflector: Satin Silver | 281lm/ft | 3W/ft | |
| 1LA9ABE-830E-Lxxxx-B | Matric-A9 | L=xxxx'' | Microprismatic screen | Jet Black | 3000K | Switchable | Reflector: Jet Black | 281lm/ft | 3W/ft | |
| 1LA9ABE-830E-Lxxxx-G | Matric-A9 | L=xxxx'' | Microprismatic screen | Jet Black | 3000K | Switchable | Reflector: Satin Gold | 281lm/ft | 3W/ft | |
| 1LA9AWE-840E-Lxxxx-W | Matric-A9 | L=xxxx'' | Microprismatic screen | Snow White | 4000K | Switchable | Reflector: Snow White | 300lm/ft | 3W/ft | |
| 1LA9AWE-840E-Lxxxx-B | Matric-A9 | L=xxxx'' | Microprismatic screen | Snow White | 4000K | Switchable | Reflector: Jet Black | 300lm/ft | 3W/ft | |
| 1LA9AWE-840E-Lxxxx-G | Matric-A9 | L=xxxx'' | Microprismatic screen | Snow White | 4000K | Switchable | Reflector: Satin Gold | 300lm/ft | 3W/ft | |
| 1LA9AAE-840E-Lxxxx-A | Matric-A9 | L=xxxx'' | Microprismatic screen | Satin Silver | 4000K | Switchable | Reflector: Satin Silver | 300lm/ft | 3W/ft |
