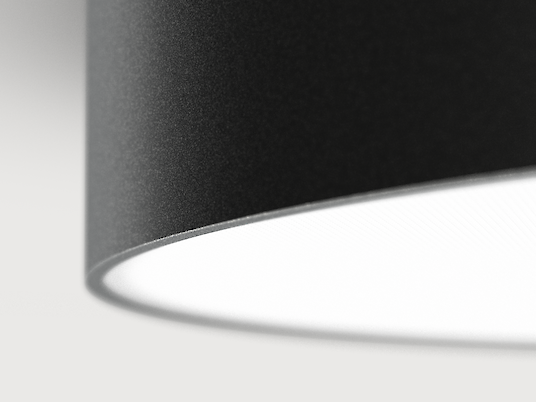

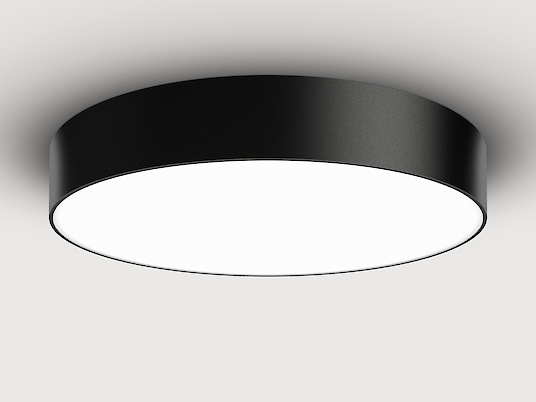

Housing:
Extruded Aluminum. LED surface-mounted luminaire for walls or ceilings. Direct only light distribution. 6 different diameters from 11.75" to 47.25" – with overall height of 3". Fully enclosed and damp rated.

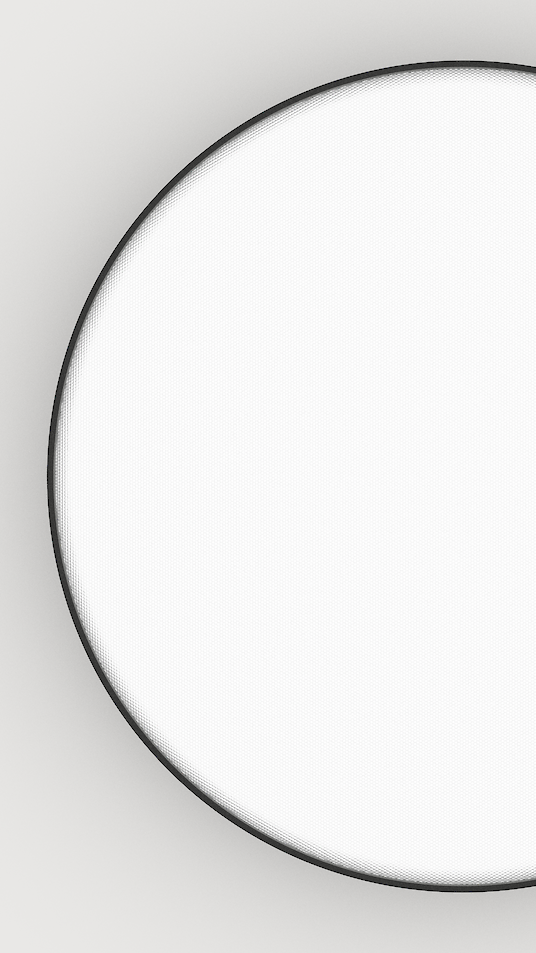

Optical System:

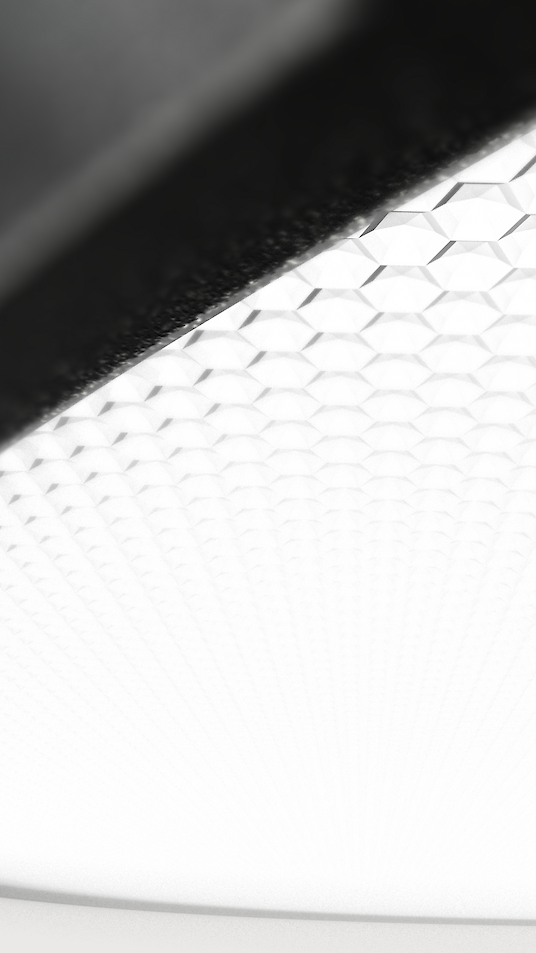

Microprismatic screen with optimized glare reduction especially for workplaces. Opal diffuser made of acrylic glass.

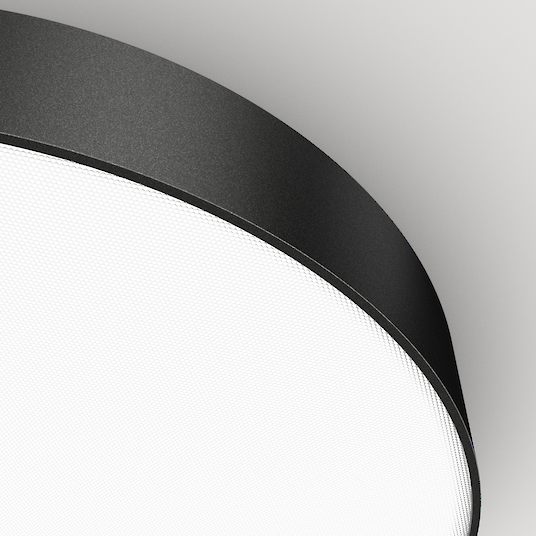

Surface Finish:
Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low or Medium Power. Lifetime L85/50000h.
Certification & Warranty:
cETLus. 5 Years Warranty.
![](/site/assets/files/5537/basic-max-surface-a1-0001-.0x556.png)
![](/site/assets/files/5537/basic-max-surface-a1-0002.0x556.png)
![](/site/assets/files/5537/basic-max-surface-a1-0003.0x556.png)
![](/site/assets/files/5537/basic-max-surface-a1-0004.0x556.png)
![](/site/assets/files/5537/basic-max-surface-a1-0005.0x556.png)
Product adjustments
![](/site/assets/files/5381/basic-superflat-surface-snow-white-002-kopie.92x92.jpg)
Snow White
![](/site/assets/files/5382/basic-superflat-surface-radiant-silver-002-kopie--.92x92.jpg)
Radiant Silver
![](/site/assets/files/5383/basic-superflat-surface-urban-graphite-002-kopie.92x92.jpg)
Urban Graphite
![](/site/assets/files/5384/basic-superflat-surface-jet-black-002-kopie.92x92.jpg)
Jet Black
![](/site/assets/files/5385/basic-superflat-surface-satin-titanium-002-kopie.92x92.jpg)
Anodic Champagne
![](/site/assets/files/5386/basic-superflat-surface-satin-copper-002-kopie.92x92.jpg)
Satin Copper
Configuration and data download
Downloads | Article code | Productname | Length L/Diameter D (in) | Optical system | Surface finish | Color temperature | Control | Luminous Flux | Power consumption |
---|---|---|---|---|---|---|---|---|---|
1BA1ABE-830M-D400 | Basic-A1 | D=15,7'' | Microprismatic screen | Jet Black | 3000K | Switchable | 3347lm | 25W | |
1BA1ASD-830E-D400 | Basic-A1 | D=15,7'' | Microprismatic screen | Radiant Silver | 3000K | Dimmable (0-10V) | 1627lm | 13W | |
1BA1ABD-830E-D400 | Basic-A1 | D=15,7'' | Microprismatic screen | Jet Black | 3000K | Dimmable (0-10V) | 1627lm | 13W | |
1BA1AWD-840E-D400 | Basic-A1 | D=15,7'' | Microprismatic screen | Snow White | 4000K | Dimmable (0-10V) | 1740lm | 13W | |
1BA1ASD-840E-D400 | Basic-A1 | D=15,7'' | Microprismatic screen | Radiant Silver | 4000K | Dimmable (0-10V) | 1740lm | 13W | |
1BA1ABD-840E-D400 | Basic-A1 | D=15,7'' | Microprismatic screen | Jet Black | 4000K | Dimmable (0-10V) | 1740lm | 13W | |
1BA1AWE-830M-D400 | Basic-A1 | D=15,7'' | Microprismatic screen | Snow White | 3000K | Switchable | 3347lm | 25W | |
1BA1ASE-830M-D400 | Basic-A1 | D=15,7'' | Microprismatic screen | Radiant Silver | 3000K | Switchable | 3347lm | 25W | |
1BA1ASD-830E-D500 | Basic-A1 | D=19,7'' | Microprismatic screen | Radiant Silver | 3000K | Dimmable (0-10V) | 2319lm | 17W | |
1BA1AWD-830M-D400 | Basic-A1 | D=15,7'' | Microprismatic screen | Snow White | 3000K | Dimmable (0-10V) | 3347lm | 25W |
