Housing:

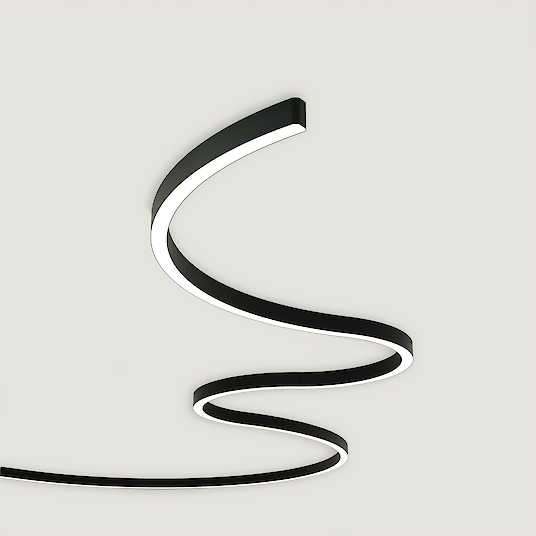

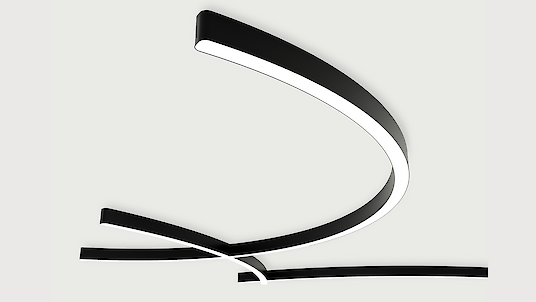

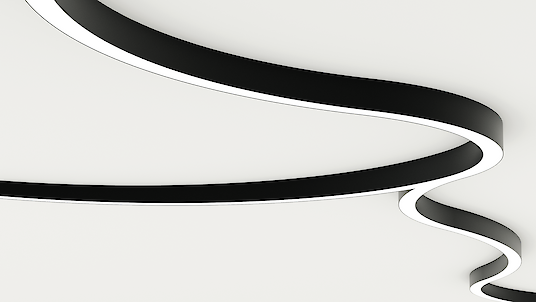

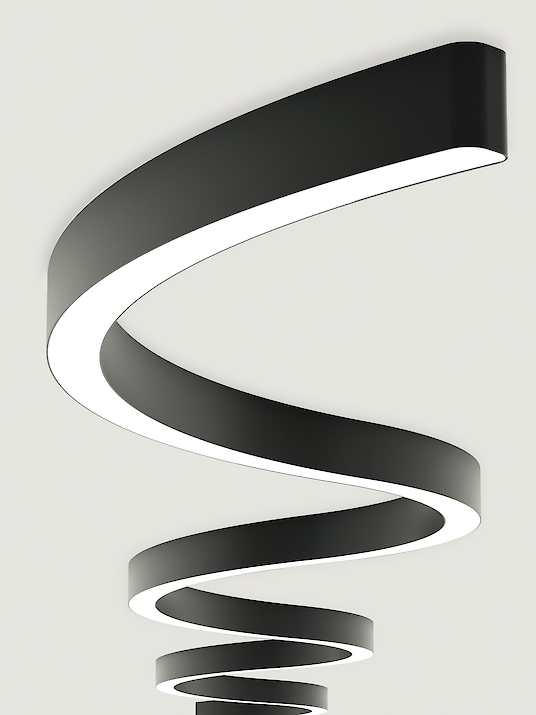

LED surface mounted light system made with 2.375" wide profile. Direct only light distribution. Fully enclosed and damp rated.
Optical System:
Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting.
Surface Finish:
Standard color finishes white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3 -step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low, Medium, or High Power. Custom lumen output upon request. Lifetime L85/50000h.
Certification & Warranty:
cETLus. 5 Years Warranty.
![](/site/assets/files/5557/liquid-line-a3-system-60mm-surface-0001.0x556.png)
![](/site/assets/files/5557/liquid-line-a3-system-60mm-surface-0002.0x556.png)
![](/site/assets/files/5557/liquid-line-a3-system-60mm-surface-0003.0x556.png)
![](/site/assets/files/5557/liquid-line-a3-system-60mm-surface-0004.0x556.png)
Product adjustments
![](/site/assets/files/6102/ringo-star-surface-snow-white-1.92x92.jpg)
Snow White
![](/site/assets/files/6103/ringo-star-surface-radiant-silver-1.92x92.jpg)
Satin Silver
![](/site/assets/files/6104/ringo-star-surface-urban-graphite-1-kopie.92x92.jpg)
Urban Graphite
![](/site/assets/files/6105/ringo-star-surface-jet-black-1.92x92.jpg)
Jet Black
![](/site/assets/files/6106/ringo-star-surface-satin-titanium-1.92x92.jpg)
Anodic Champagne
![](/site/assets/files/6107/ringo-star-surface-satin-copper-1.92x92.jpg)
Satin Copper
Configuration and data download
Downloads | Article code | Productname | Optical system | Surface finish | Color temperature | Control | Luminous Flux | Power consumption |
---|---|---|---|---|---|---|---|---|
1QA3OWE-830E-STRUCTURE-Lxxxx | Liquid Line-A3 | Opal diffuser | Snow White | 3000K | Switchable | 374lm/feet | 5W/feet | |
1QA3OWE-830M-STRUCTURE-Lxxxx | Liquid Line-A3 | Opal diffuser | Snow White | 3000K | Switchable | 542lm/feet | 7W/feet | |
1QA3OWE-830H-STRUCTURE-Lxxxx | Liquid Line-A3 | Opal diffuser | Snow White | 3000K | Switchable | 711lm/feet | 9W/feet | |
1QA3OWE-840E-STRUCTURE-Lxxxx | Liquid Line-A3 | Opal diffuser | Snow White | 4000K | Switchable | 400lm/feet | 5W/feet | |
1QA3OWE-840M-STRUCTURE-Lxxxx | Liquid Line-A3 | Opal diffuser | Snow White | 4000K | Switchable | 580lm/feet | 7W/feet | |
1QA3OWE-840H-STRUCTURE-Lxxxx | Liquid Line-A3 | Opal diffuser | Snow White | 4000K | Switchable | 760lm/feet | 9W/feet | |
1QA3OWD-830E-STRUCTURE-Lxxxx | Liquid Line-A3 | Opal diffuser | Snow White | 3000K | Dimmable (0-10V) | 374lm/feet | 5W/feet | |
1QA3OWD-830M-STRUCTURE-Lxxxx | Liquid Line-A3 | Opal diffuser | Snow White | 3000K | Dimmable (0-10V) | 542lm/feet | 7W/feet | |
1QA3OWD-830H-STRUCTURE-Lxxxx | Liquid Line-A3 | Opal diffuser | Snow White | 3000K | Dimmable (0-10V) | 711lm/feet | 9W/feet | |
1QA3OWD-840E-STRUCTURE-Lxxxx | Liquid Line-A3 | Opal diffuser | Snow White | 4000K | Dimmable (0-10V) | 400lm/feet | 5W/feet |
