Modular lines of light
Housing:

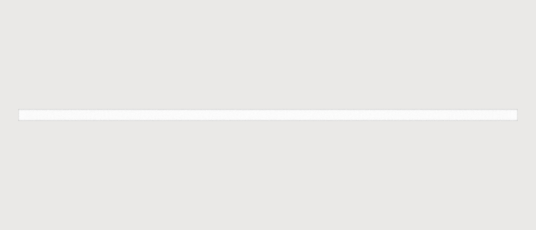

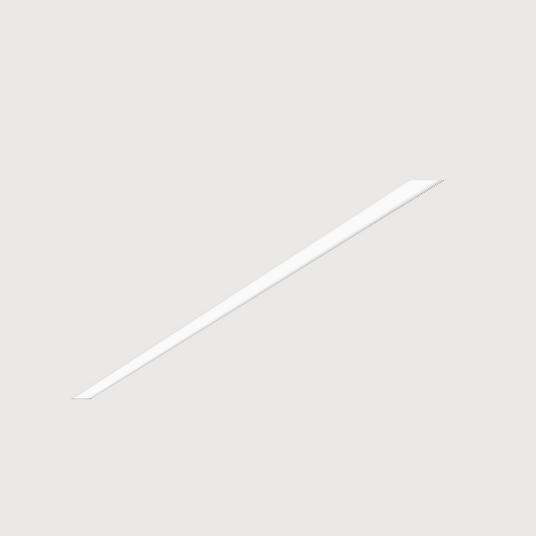

Extruded Aluminum. Recessed mounted LED luminaire for frameless installation in plasterboard ceilings. Direct only light distribution. Fully enclosed and damp rated.
Optical System:

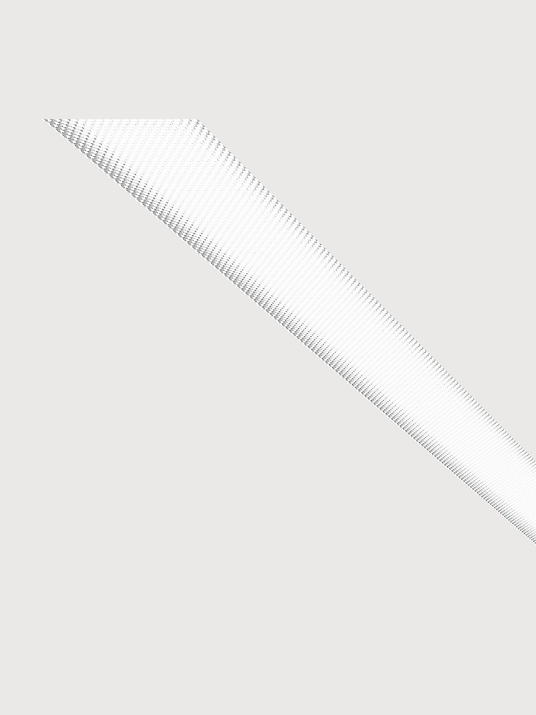

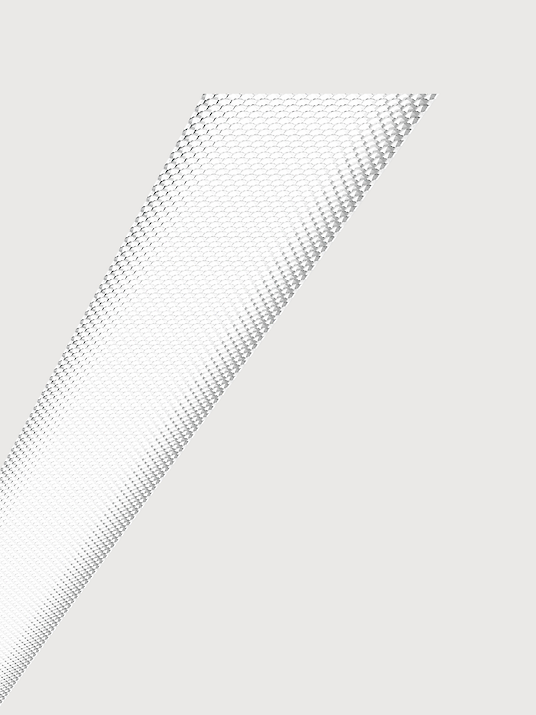

Direct light using precision lenses with louver for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louver available in various color finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces.
Surface Finish:
Surface white coated. Louvre available in various colour finishes.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low, Medium, or High Power. Custom lumen output upon request. Lifetime L85/50000h.
Certification & Warranty:
cETLus.
5 Years Warranty.
Product adjustments
90° Corner Opal/Microprismatic
Snow White | Snow White
Snow White | Satin Silver
Snow White | Jet Black
Snow White | Satin Gold
Snow White | Anodic Champagne
Snow White | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (in) | Optical system | Surface finish | Color temperature | Control | Reflector Color Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LMXAWE-830E-Lxxxx | Matric-MX | L=xxxx'' | Microprismatic screen | Snow White | 3000K | Switchable | 299lm/ft | 3W/ft | ||
| 1LMXAWE-840E-Lxxxx | Matric-MX | L=xxxx'' | Microprismatic screen | Snow White | 4000K | Switchable | 320lm/ft | 3W/ft | ||
| 1LMXAWD-830E-Lxxxx | Matric-MX | L=xxxx'' | Microprismatic screen | Snow White | 3000K | Dimmable (0-10V) | 299lm/ft | 3W/ft | ||
| 1LMXAWD-840E-Lxxxx | Matric-MX | L=xxxx'' | Microprismatic screen | Snow White | 4000K | Dimmable (0-10V) | 320lm/ft | 3W/ft | ||
| 1LMXAWE-830H-Lxxxx | Matric-MX | L=xxxx'' | Microprismatic screen | Snow White | 3000K | Switchable | 533lm/ft | 5W/ft | ||
| 1LMXAWE-840H-Lxxxx | Matric-MX | L=xxxx'' | Microprismatic screen | Snow White | 4000K | Switchable | 570lm/ft | 5W/ft | ||
| 1LMXAWD-830H-Lxxxx | Matric-MX | L=xxxx'' | Microprismatic screen | Snow White | 3000K | Dimmable (0-10V) | 533lm/ft | 5W/ft | ||
| 1LMXAWD-840H-Lxxxx | Matric-MX | L=xxxx'' | Microprismatic screen | Snow White | 4000K | Dimmable (0-10V) | 570lm/ft | 5W/ft | ||
| 1LMXOWE-830M-Lxxxx | Matric-MX | L=xxxx'' | Opal diffuser | Snow White | 3000K | Switchable | 439lm/ft | 4W/ft | ||
| 1LMXOWE-840M-Lxxxx | Matric-MX | L=xxxx'' | Opal diffuser | Snow White | 4000K | Switchable | 470lm/ft | 4W/ft |
