Matric Square GX/RX | System 1.5'' Suspended

Housing:
Extruded Aluminum. LED pendant luminaire made of 1.625" wide profile. Direct-indirect or direct-only light distribution. Fully enclosed and damp rated.

Optical System:
Direct light using precision lenses with louver for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louver available in various color finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Indirect light with innovative lens technology for wideangle ceiling illumination.

Surface Finish:
Surface silver, white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.

Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.

LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low, Medium, or High Power. Custom lumen output upon request. Lifetime L85/50000h.

Installation:
Height-adjustable parallel cord suspension with transparent power supply cable. Color of canopy match to luminaire body.

Certification & Warranty:
cETLus.
5 Years Warranty.

Product adjustments

Snow White

Radiant Silver

Urban Graphite

Jet Black

Anodic Champagne

Satin Copper

Download catalog page and assembly instructions

Configuration and data download

Length L/Diameter D (in)

Light characteristics

Optical system

Surface finish

Color temperature

Control

Current/Power

Suspension

Apply
Filter
Downloads Article code Productname Length L/Diameter D (in) Optical system Surface finish Color temperature Control Suspension Luminous Flux Power consumption
1LGXAWE-830E-Q640-K Matric-GX Square Q=25,2'' Microprismatic screen Snow White 3000K Switchable Parallel cord susp (Set) 2291lm 23W
1LGXASE-830E-Q640-K Matric-GX Square Q=25,2'' Microprismatic screen Radiant Silver 3000K Switchable Parallel cord susp (Set) 2291lm 23W
1LGXABE-830E-Q640-K Matric-GX Square Q=25,2'' Microprismatic screen Jet Black 3000K Switchable Parallel cord susp (Set) 2291lm 23W
1LGXAWE-840E-Q640-K Matric-GX Square Q=25,2'' Microprismatic screen Snow White 4000K Switchable Parallel cord susp (Set) 2450lm 23W
1LGXASE-840E-Q640-K Matric-GX Square Q=25,2'' Microprismatic screen Radiant Silver 4000K Switchable Parallel cord susp (Set) 2450lm 23W
1LGXABE-840E-Q640-K Matric-GX Square Q=25,2'' Microprismatic screen Jet Black 4000K Switchable Parallel cord susp (Set) 2450lm 23W
1LGXAWD-830E-Q640-K Matric-GX Square Q=25,2'' Microprismatic screen Snow White 3000K Dimmable (0-10V) Parallel cord susp (Set) 2291lm 23W
1LGXASD-830E-Q640-K Matric-GX Square Q=25,2'' Microprismatic screen Radiant Silver 3000K Dimmable (0-10V) Parallel cord susp (Set) 2291lm 23W
1LGXABD-830E-Q640-K Matric-GX Square Q=25,2'' Microprismatic screen Jet Black 3000K Dimmable (0-10V) Parallel cord susp (Set) 2291lm 23W
1LGXAWD-840E-Q640-K Matric-GX Square Q=25,2'' Microprismatic screen Snow White 4000K Dimmable (0-10V) Parallel cord susp (Set) 2450lm 23W
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11

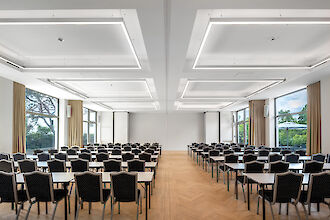

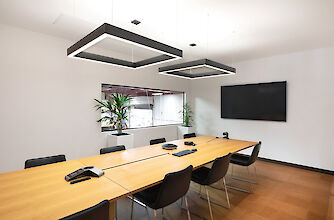

This is how this light works in use

Matric Square GX/RX | System 1.5'' Suspended get to know better
