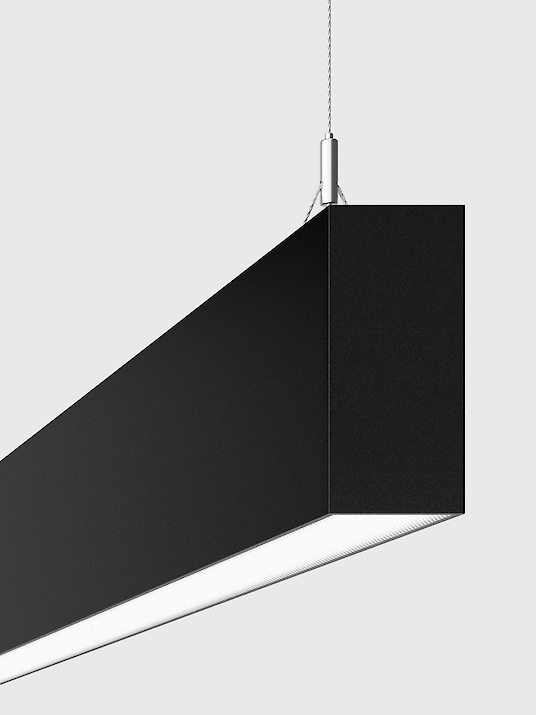

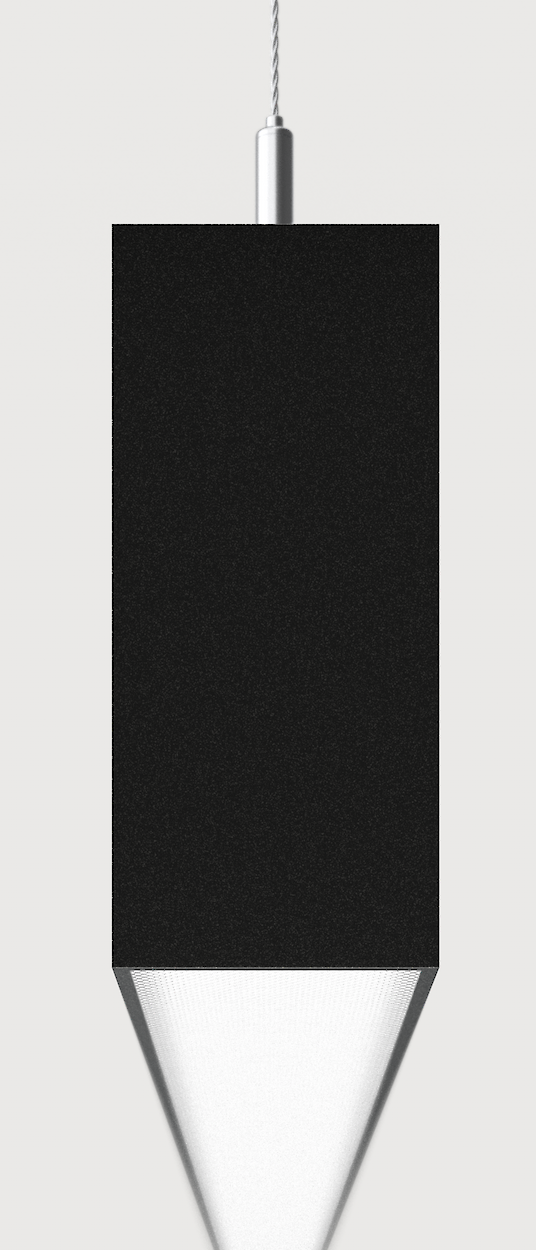

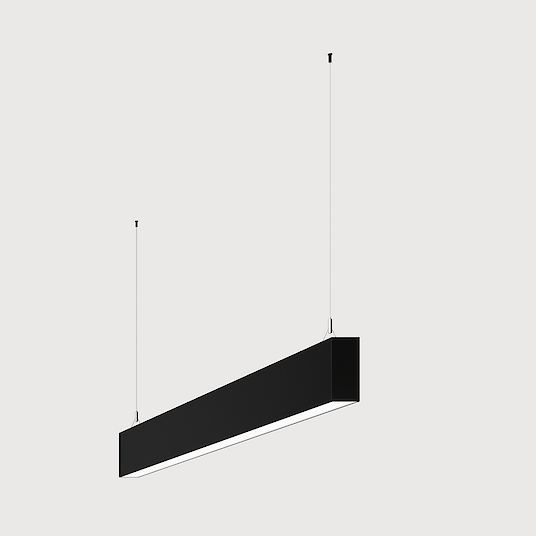

Housing:
Extruded Aluminum. LED pendant luminaire made of 2.125" wide profile. Direct-indirect light distribution. Bespoke lengths are possible. Fully enclosed and damp rated.
Optical System:
Direct light using precision lenses with louver for wide uniform symmetrical light distribution with high glare limitation (UGR<19). Louver available in various color finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces.
Surface Finish:
Surface natural anodized or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low, Medium, or High Power. Custom lumen output upon request. Lifetime L85/50000h.
Installation:

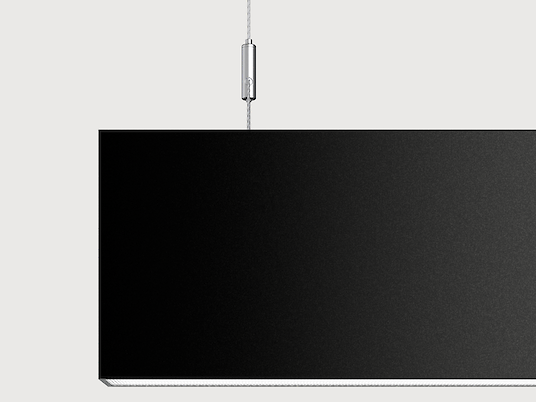

Height-adjustable Y-cord suspension with transparent power supply cable. Color of canopy match to luminaire body.
Certification & Warranty:
cETLus. 5 Years Warranty.
Product adjustments
90° Corner Opal/Microprismatic
Jet Black | Snow White
Jet Black | Satin Silver
Jet Black | Jet Black
Jet Black | Satin Gold
Jet Black | Anodic Champagne
Jet Black | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (in) | Optical system | Surface finish | Color temperature | Control | Suspension | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LR4OED-840M-L1182-Y | Matric-R4 | L=46,5'' | Opal diffuser | Silver Anodised | 4000K | Dimmable (0-10V) | Y-susp. (Set) | 4730lm | 39W | |
| 1LR4OED-840H-L1182-Y | Matric-R4 | L=46,5'' | Opal diffuser | Silver Anodised | 4000K | Dimmable (0-10V) | Y-susp. (Set) | 6600lm | 55W | |
| 1LR4GED-840M-L1182-Y | Matric-R4 | L=46,5'' | Wall-Washer | Silver Anodised | 4000K | Dimmable (0-10V) | Y-susp. (Set) | 3700lm | 37W | |
| 1LR4GED-840H-L1182-Y | Matric-R4 | L=46,5'' | Wall-Washer | Silver Anodised | 4000K | Dimmable (0-10V) | Y-susp. (Set) | 5070lm | 51W | |
| 1LR4OED-830M-L1182-Y | Matric-R4 | L=46,5'' | Opal diffuser | Silver Anodised | 3000K | Dimmable (0-10V) | Y-susp. (Set) | 4423lm | 39W | |
| 1LR4OED-830H-L1182-Y | Matric-R4 | L=46,5'' | Opal diffuser | Silver Anodised | 3000K | Dimmable (0-10V) | Y-susp. (Set) | 6171lm | 55W | |
| 1LR4GED-830M-L1182-Y | Matric-R4 | L=46,5'' | Wall-Washer | Silver Anodised | 3000K | Dimmable (0-10V) | Y-susp. (Set) | 3460lm | 37W | |
| 1LR4GED-830H-L1182-Y | Matric-R4 | L=46,5'' | Wall-Washer | Silver Anodised | 3000K | Dimmable (0-10V) | Y-susp. (Set) | 4740lm | 51W | |
| 1LR4OED-840M-L1475-Y | Matric-R4 | L=58,1'' | Opal diffuser | Silver Anodised | 4000K | Dimmable (0-10V) | Y-susp. (Set) | 5950lm | 48W | |
| 1LR4OED-840H-L1475-Y | Matric-R4 | L=58,1'' | Opal diffuser | Silver Anodised | 4000K | Dimmable (0-10V) | Y-susp. (Set) | 8310lm | 68W |
