Cubic Evolution G6/P6 | Square Suspended

Housing:
Extruded Aluminum. LED pendant luminaire. Direct-Indirect or Direct only light distribution. Fully enclosed.

Optical System:
Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting.

Surface Finish:
Surface natural anodized or white, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.

Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.

LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Medium or High Power. Custom lumen output upon request. Lifetime L85/50000h.

Installation:
Height-adjustable parallel cord suspension with transparent power supply cable or rod suspension. Color of canopy matching luminaire body.

Certification & Warranty:
cETLus. 5 Years Warranty.

Product adjustments

Snow White

Silver Anodised

Urban Graphite

Jet Black

Anodic Champagne

Download catalog page and assembly instructions

Configuration and data download

Length L/Diameter D (in)

Light characteristics

Optical system

Surface finish

Color temperature

Control

Current/Power

Suspension

Apply
Filter
Downloads Article code Productname Length L/Diameter D (in) Optical system Surface finish Color temperature Control Suspension Luminous Flux Power consumption
1CP6OEE-830M-Q300-P Cubic-P6 L=11,8'' Opal diffuser Silver Anodised 3000K Switchable Rod susp. (Set) 1805lm 16W
1CP6OED-830H-Q300-P Cubic-P6 L=11,8'' Opal diffuser Silver Anodised 3000K Dimmable (0-10V) Rod susp. (Set) 2581lm 24W
1CP6OBD-830H-Q300-P Cubic-P6 L=11,8'' Opal diffuser Jet Black 3000K Dimmable (0-10V) Rod susp. (Set) 2581lm 24W
1CP6OWD-840H-Q300-P Cubic-P6 L=11,8'' Opal diffuser Snow White 4000K Dimmable (0-10V) Rod susp. (Set) 2760lm 24W
1CP6OED-840H-Q300-P Cubic-P6 L=11,8'' Opal diffuser Silver Anodised 4000K Dimmable (0-10V) Rod susp. (Set) 2760lm 24W
1CP6OBD-840H-Q300-P Cubic-P6 L=11,8'' Opal diffuser Jet Black 4000K Dimmable (0-10V) Rod susp. (Set) 2760lm 24W
1CP6OWE-840H-Q300-P Cubic-P6 L=11,8'' Opal diffuser Snow White 4000K Switchable Rod susp. (Set) 2760lm 24W
1CP6OEE-840H-Q300-P Cubic-P6 L=11,8'' Opal diffuser Silver Anodised 4000K Switchable Rod susp. (Set) 2760lm 24W
1CP6OBE-840H-Q300-P Cubic-P6 L=11,8'' Opal diffuser Jet Black 4000K Switchable Rod susp. (Set) 2760lm 24W
1CP6OWD-830H-Q300-P Cubic-P6 L=11,8'' Opal diffuser Snow White 3000K Dimmable (0-10V) Rod susp. (Set) 2581lm 24W
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11

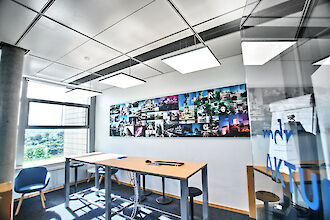

This is how this light works in use
