Housing:

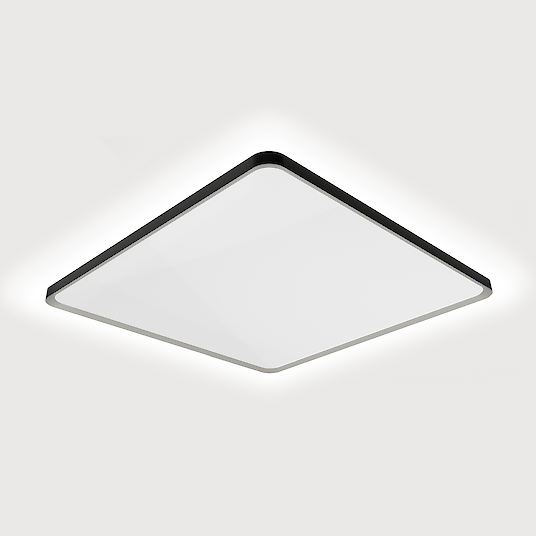

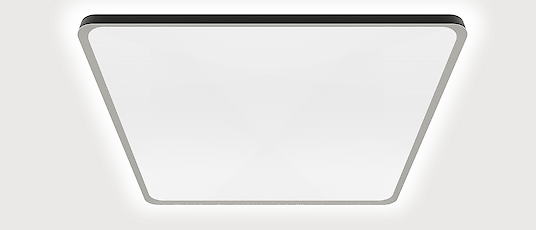

Extruded Aluminum. LED surface-mounted luminaire for walls and ceilings. Direct and indirect light distribution or direct only light distribution. Fully enclosed.
Optical System:

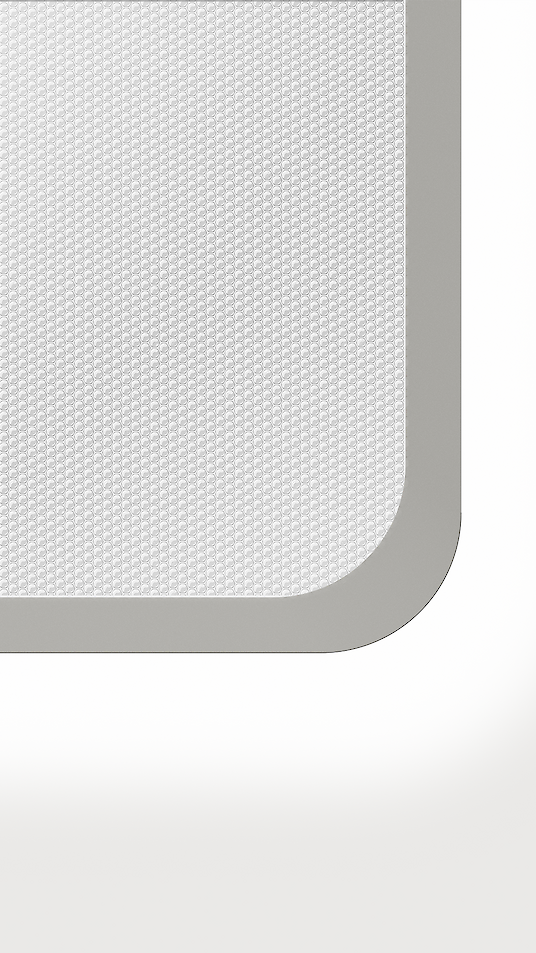

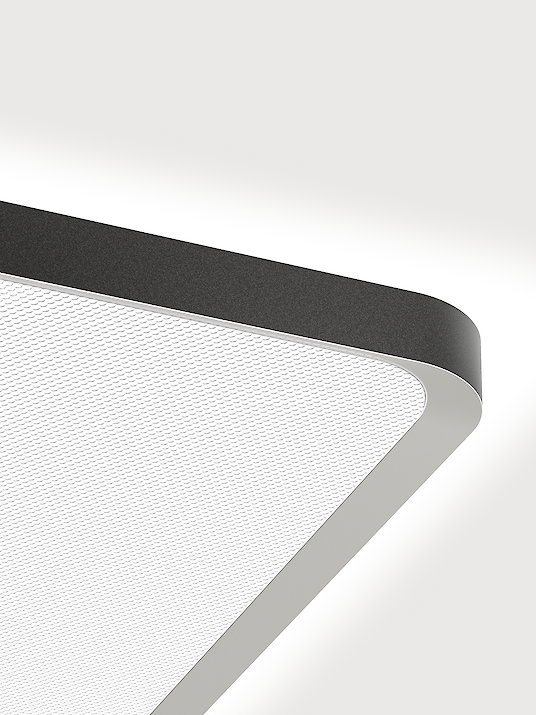

Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting.
Surface Finish:
Outer housing and inner decorative trim available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For surface options and combinations check Lightnet Surface Collection or Bi-Color Selection.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Medium or High Power. Custom lumen output upon request. Lifetime L85/50000h.
Certification & Warranty:
cETLus.
5 Years Warranty.
Product adjustments
Snow White | Snow White
Snow White | Satin Silver
Snow White | Jet Black
Snow White | Satin Gold
Snow White | Anodic Champagne
Snow White | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (in) | Optical system | Surface finish | Color temperature | Control | Reflector Color Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| 1AX6AWE-827M-Q300-W | Caleo-X6 | L=11,8'' | Microprismatic screen | Snow White | 2700K | Switchable | Reflector: Snow White | 1861lm | 17W | |
| 1AX6AWE-827M-Q300-B | Caleo-X6 | L=11,8'' | Microprismatic screen | Snow White | 2700K | Switchable | Reflector: Jet Black | 1861lm | 17W | |
| 1AX6AWE-827M-Q300-G | Caleo-X6 | L=11,8'' | Microprismatic screen | Snow White | 2700K | Switchable | Reflector: Satin Gold | 1861lm | 17W | |
| 1AX6ASE-827M-Q300-S | Caleo-X6 | L=11,8'' | Microprismatic screen | Radiant Silver | 2700K | Switchable | Reflector: Radiant Silver | 1861lm | 17W | |
| 1AX6ABE-827M-Q300-B | Caleo-X6 | L=11,8'' | Microprismatic screen | Jet Black | 2700K | Switchable | Reflector: Jet Black | 1861lm | 17W | |
| 1AX6AWE-830M-Q300-B | Caleo-X6 | L=11,8'' | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Jet Black | 1861lm | 17W | |
| 1AX6AWE-830M-Q300-G | Caleo-X6 | L=11,8'' | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Satin Gold | 1861lm | 17W | |
| 1AX6ASE-830M-Q300-S | Caleo-X6 | L=11,8'' | Microprismatic screen | Radiant Silver | 3000K | Switchable | Reflector: Radiant Silver | 1861lm | 17W | |
| 1AX6ABE-830M-Q300-B | Caleo-X6 | L=11,8'' | Microprismatic screen | Jet Black | 3000K | Switchable | Reflector: Jet Black | 1861lm | 17W | |
| 1AX6ABE-830M-Q300-G | Caleo-X6 | L=11,8'' | Microprismatic screen | Jet Black | 3000K | Switchable | Reflector: Satin Gold | 1861lm | 17W |
