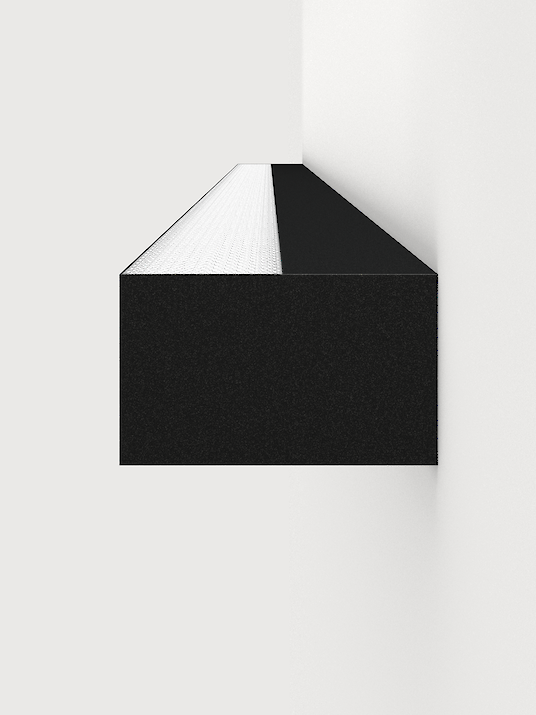

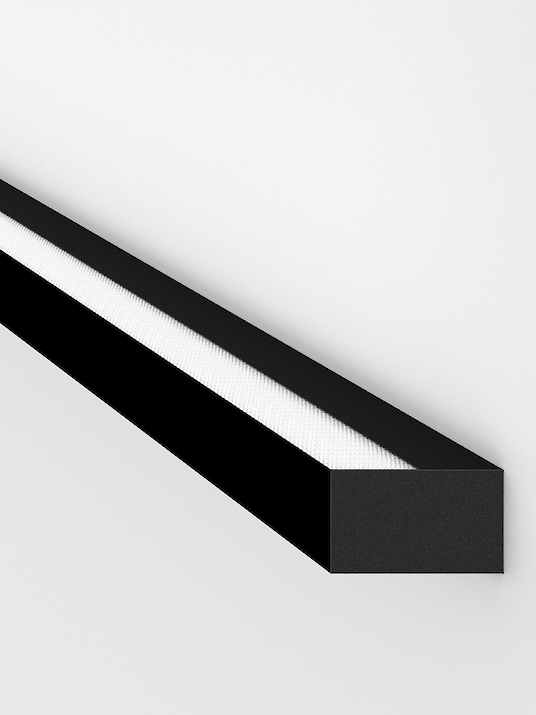

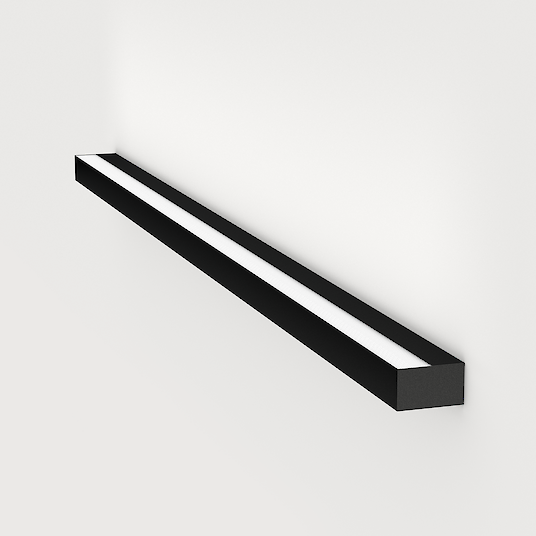

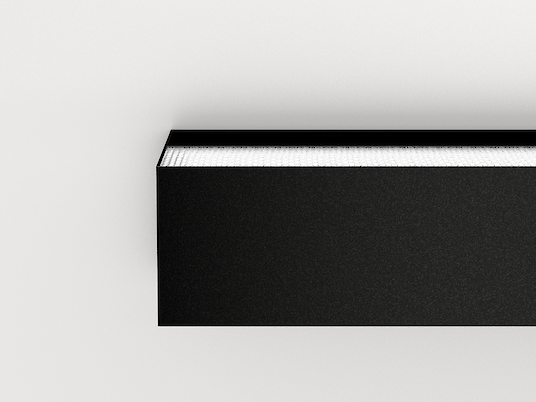

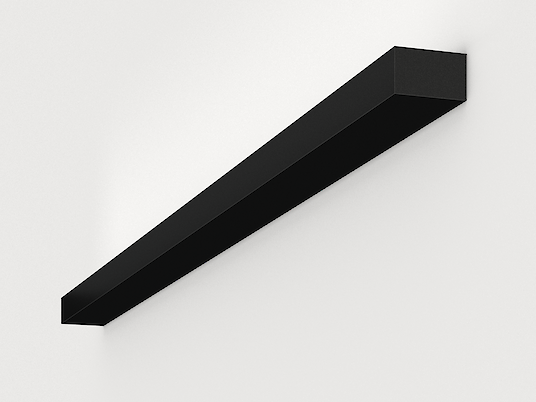

LED surface-mounted luminaire for horizontal wall mounting
Indirect only light distribution. Light channel made of aluminium profile. Bespoke lengths possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. High-quality microprismatic screen for indirect visual and dust protection as well as directional wall/ceiling light distribution. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum.
Product adjustments
Snow White
Silver Anodised
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| LJXAWE-830M-Lxxxx | Matric-JX | Special length L=xxxxmm | Microprismatic screen | Snow White | 3000K | Switchable | 1309lm/m | 22W/m | |
| LJXAEE-830M-Lxxxx | Matric-JX | Special length L=xxxxmm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 1309lm/m | 22W/m | |
| LJXABE-830M-Lxxxx | Matric-JX | Special length L=xxxxmm | Microprismatic screen | Jet Black | 3000K | Switchable | 1309lm/m | 22W/m | |
| LJXAWE-840M-Lxxxx | Matric-JX | Special length L=xxxxmm | Microprismatic screen | Snow White | 4000K | Switchable | 1400lm/m | 22W/m | |
| LJXAEE-840M-Lxxxx | Matric-JX | Special length L=xxxxmm | Microprismatic screen | Silver Anodised | 4000K | Switchable | 1400lm/m | 22W/m | |
| LJXABE-840M-Lxxxx | Matric-JX | Special length L=xxxxmm | Microprismatic screen | Jet Black | 4000K | Switchable | 1400lm/m | 22W/m | |
| LJXAWE-830H-Lxxxx | Matric-JX | Special length L=xxxxmm | Microprismatic screen | Snow White | 3000K | Switchable | 1889lm/m | 34W/m | |
| LJXAEE-830H-Lxxxx | Matric-JX | Special length L=xxxxmm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 1889lm/m | 34W/m | |
| LJXABE-830H-Lxxxx | Matric-JX | Special length L=xxxxmm | Microprismatic screen | Jet Black | 3000K | Switchable | 1889lm/m | 34W/m | |
| LJXAWE-840H-Lxxxx | Matric-JX | Special length L=xxxxmm | Microprismatic screen | Snow White | 4000K | Switchable | 2020lm/m | 34W/m |
