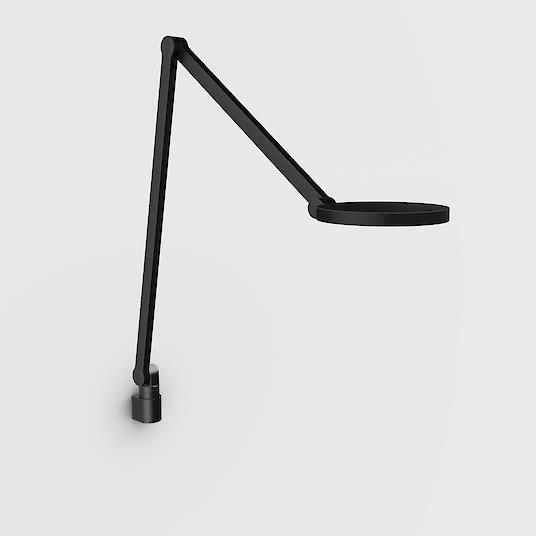

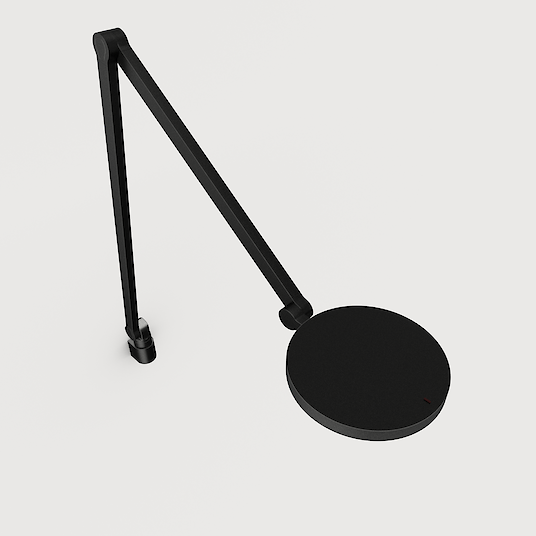

LED wall mounted luminaire

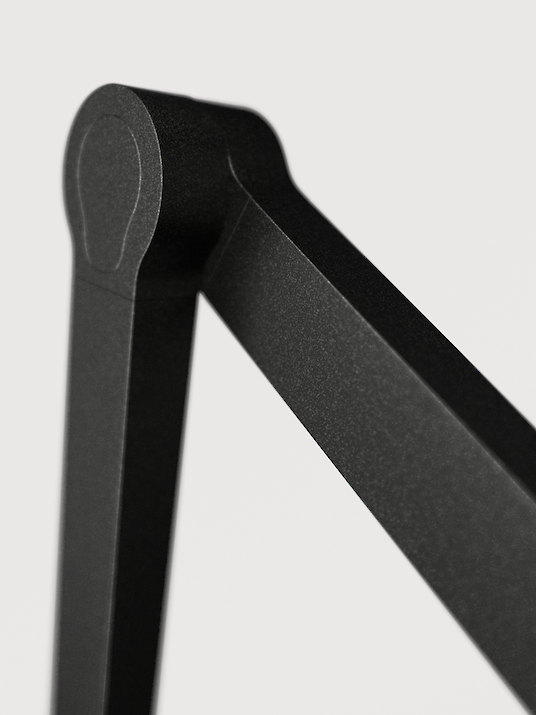

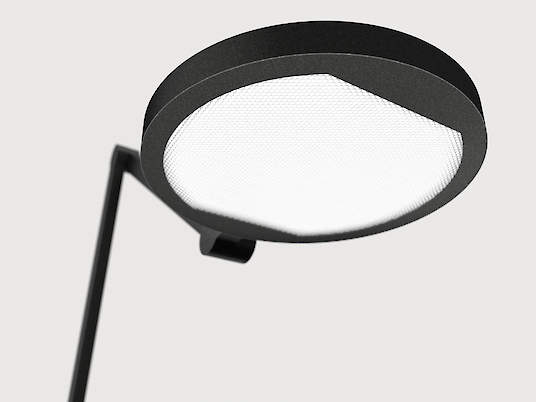

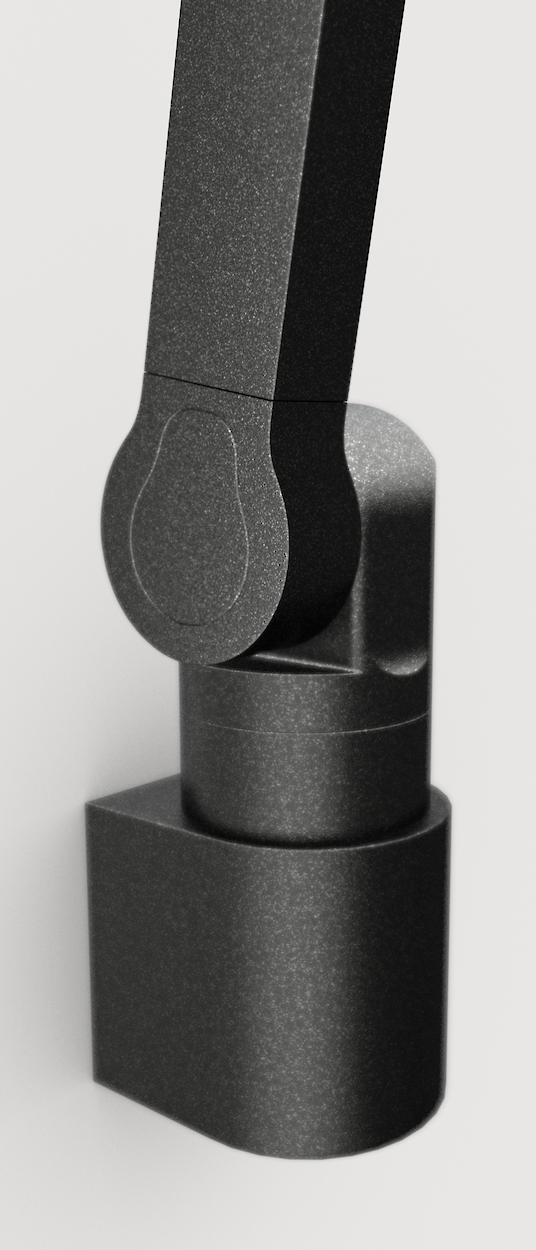

Microprismatic screen made of acrylic glass for optimised glare control and light direction. Minimalistic luminaire head with perfect uniform and enhanced light transmission. High-quality pantograph with precision joints completely made of aluminium. No visible cables, springs or cords. Surface available in white, silver, black or champagne coated. Intuitive control via touch control panel in the luminaire head. Light output level continuously dimmable. High flexibility due to laterally swivelling wall element. Standard colour temperature 2700K, 3000K or 4000K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum.
Product adjustments
Power Supply with cord
Power Supply with through the wall
Ivory White
Satin Silver
Jet Black
Anodic Champagne
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Adaptor | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| UW1AVS-840M-D150-W | Lucille-W1 | D=150mm | Microprismatic screen | Ivory White | 4000K | Switch&dim | Power Supply wall | 1000lm | 13W | |
| UW1AVS-830M-D150-C | Lucille-W1 | D=150mm | Microprismatic screen | Ivory White | 3000K | Switch&dim | Power Supply cord | 935lm | 13W | |
| UW1AAS-840M-D150-C | Lucille-W1 | D=150mm | Microprismatic screen | Satin Silver | 4000K | Switch&dim | Power Supply cord | 1000lm | 13W | |
| UW1AAS-840M-D150-W | Lucille-W1 | D=150mm | Microprismatic screen | Satin Silver | 4000K | Switch&dim | Power Supply wall | 1000lm | 13W | |
| UW1ABS-830M-D150-W | Lucille-W1 | D=150mm | Microprismatic screen | Jet Black | 3000K | Switch&dim | Power Supply wall | 935lm | 13W | |
| UW1AAS-830M-D150-W | Lucille-W1 | D=150mm | Microprismatic screen | Satin Silver | 3000K | Switch&dim | Power Supply wall | 935lm | 13W | |
| UW1AVS-840M-D150-C | Lucille-W1 | D=150mm | Microprismatic screen | Ivory White | 4000K | Switch&dim | Power Supply cord | 1000lm | 13W | |
| UW1ABS-840M-D150-W | Lucille-W1 | D=150mm | Microprismatic screen | Jet Black | 4000K | Switch&dim | Power Supply wall | 1000lm | 13W | |
| UW1ABS-830M-D150-C | Lucille-W1 | D=150mm | Microprismatic screen | Jet Black | 3000K | Switch&dim | Power Supply cord | 935lm | 13W | |
| UW1AVS-830M-D150-W | Lucille-W1 | D=150mm | Microprismatic screen | Ivory White | 3000K | Switch&dim | Power Supply wall | 935lm | 13W |
