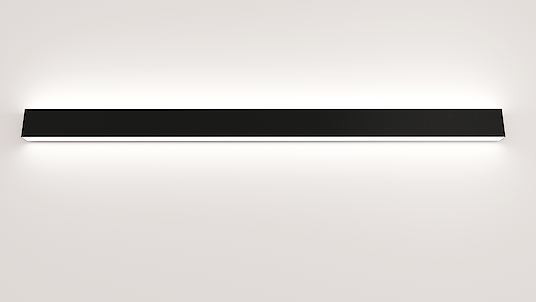

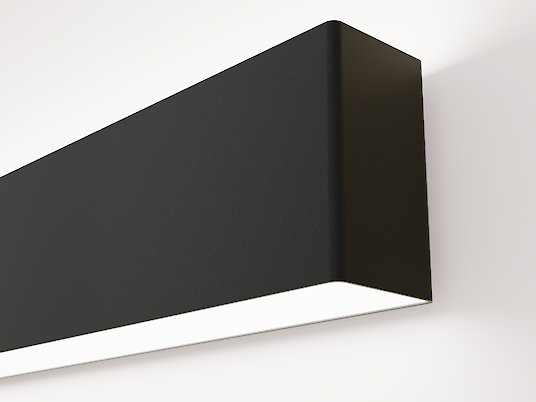

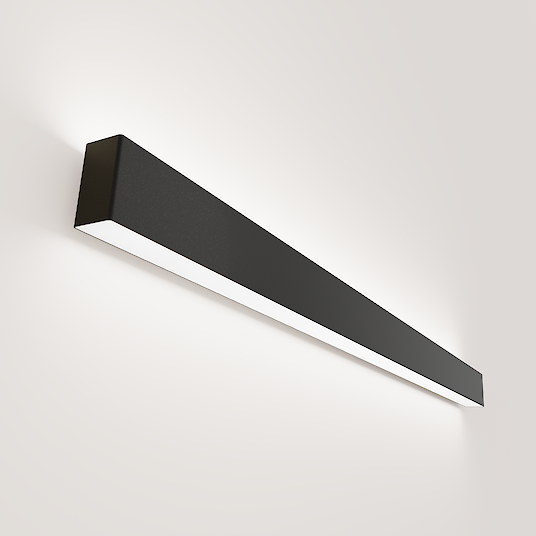

LED wall mounted luminaire. Direct-indirect light distribution. Luminaire body with smooth curves made of aluminium, crafted in one piece with no visible seams at the ends. Surface white, silver, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI). Colour temperature 2200K, 2700K, 3000K, 4000K, 6500K or Tunable White. Binning≤ MacAdam 3. Colour rendering CRI>80. On request: Integration of emergency lighting components.
![](/site/assets/files/5463/liquid-line-wx-system-40mm-wall-0001.0x556.png)
![](/site/assets/files/5463/liquid-line-wx-system-40mm-wall-0002.0x556.png)
![](/site/assets/files/5463/liquid-line-wx-system-40mm-wall-0003.0x556.png)
Product adjustments
![](/site/assets/files/5939/liquid-line-system-40mm-copper-opal.92x92.jpg)
Snow White
![](/site/assets/files/5940/liquid-line-system-40mm-silver-opal.92x92.jpg)
Radiant Silver
![](/site/assets/files/5941/liquid-line-system-40mm-silver-graphite.92x92.jpg)
Urban Graphite
![](/site/assets/files/5942/liquid-line-system-40mm-silver-black.92x92.jpg)
Jet Black
![](/site/assets/files/5943/liquid-line-system-40mm-silver-champagne.92x92.jpg)
Anodic Champagne
![](/site/assets/files/5944/liquid-line-system-40mm-silver-copper.92x92.jpg)
Satin Copper
Configuration and data download
Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
---|---|---|---|---|---|---|---|---|---|
QWXOWE-830M-L600 | Liquid Line-WX | L=600mm | Opal diffuser | Snow White | 3000K | Switchable | 1833lm | 17W | |
QWXOSE-830M-L600 | Liquid Line-WX | L=600mm | Opal diffuser | Radiant Silver | 3000K | Switchable | 1833lm | 17W | |
QWXOBE-830M-L600 | Liquid Line-WX | L=600mm | Opal diffuser | Jet Black | 3000K | Switchable | 1833lm | 17W | |
QWXOWE-840M-L600 | Liquid Line-WX | L=600mm | Opal diffuser | Snow White | 4000K | Switchable | 1960lm | 17W | |
QWXOSE-840M-L600 | Liquid Line-WX | L=600mm | Opal diffuser | Radiant Silver | 4000K | Switchable | 1960lm | 17W | |
QWXOBE-840M-L600 | Liquid Line-WX | L=600mm | Opal diffuser | Jet Black | 4000K | Switchable | 1960lm | 17W | |
QWXOWL-830M-L600 | Liquid Line-WX | L=600mm | Opal diffuser | Snow White | 3000K | Dimmable (DALI) | 1833lm | 17W | |
QWXOSL-830M-L600 | Liquid Line-WX | L=600mm | Opal diffuser | Radiant Silver | 3000K | Dimmable (DALI) | 1833lm | 17W | |
QWXOBL-830M-L600 | Liquid Line-WX | L=600mm | Opal diffuser | Jet Black | 3000K | Dimmable (DALI) | 1833lm | 17W | |
QWXOWL-840M-L600 | Liquid Line-WX | L=600mm | Opal diffuser | Snow White | 4000K | Dimmable (DALI) | 1960lm | 17W |
