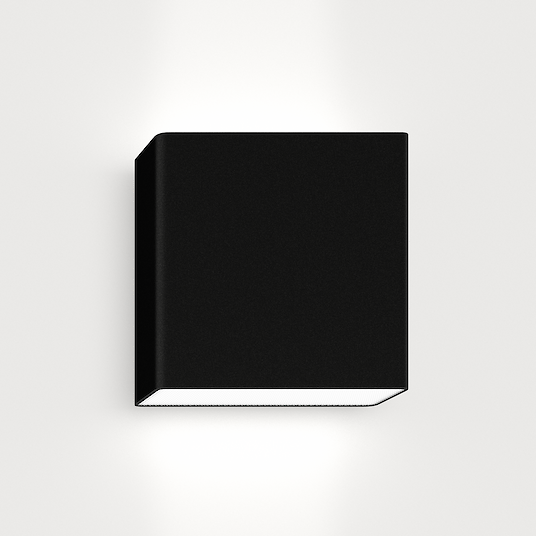

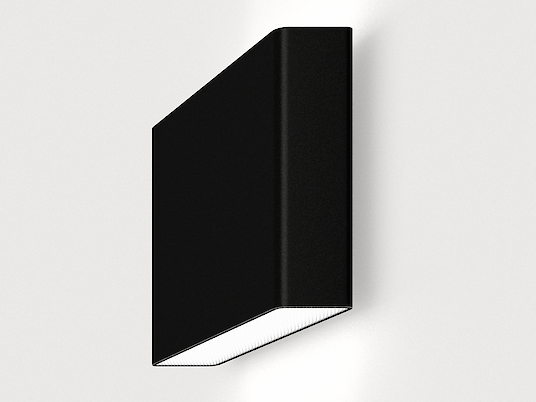

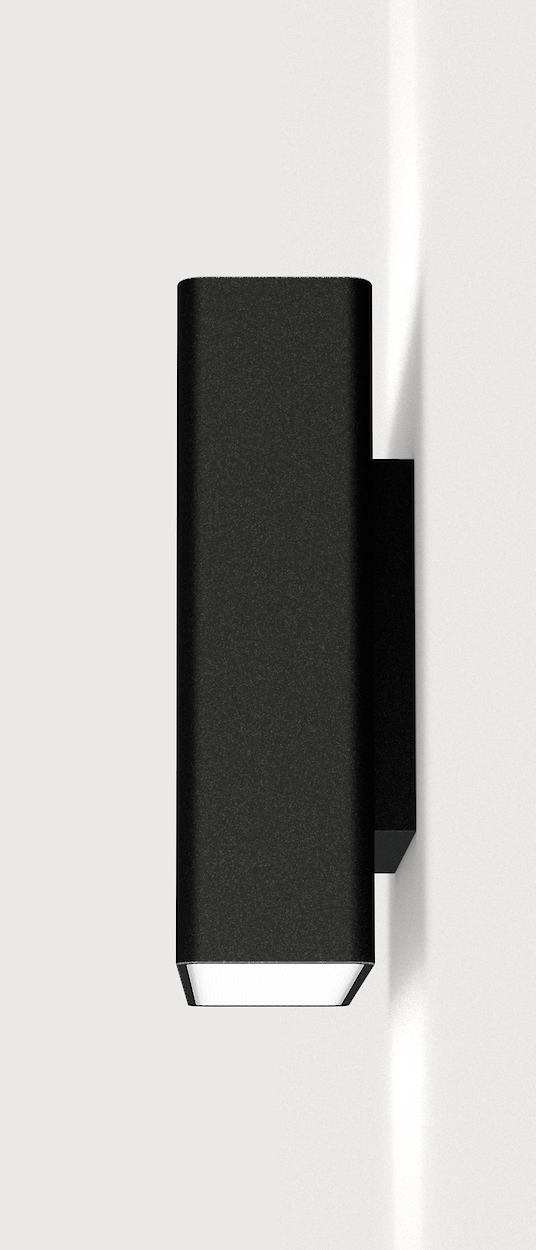

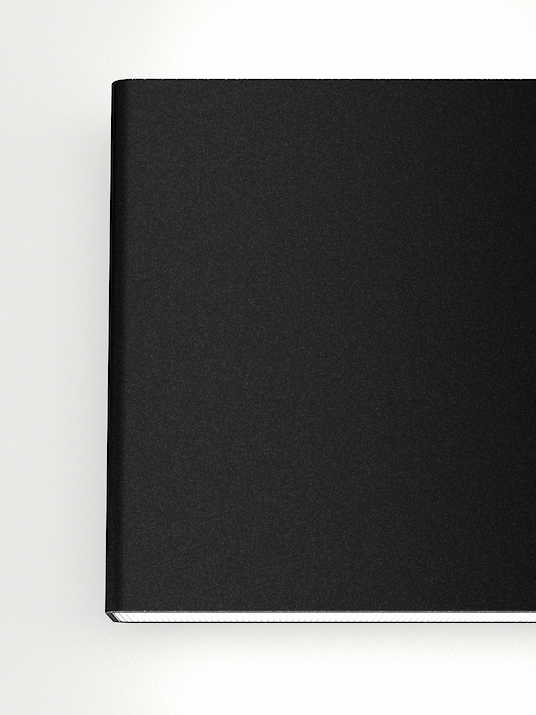

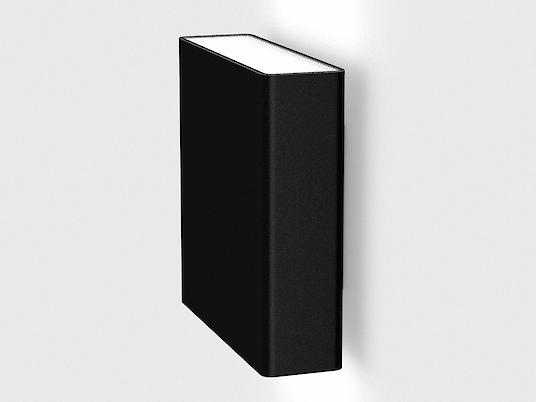

LED wall mounted luminaire. Direct-indirect light distribution. Luminaire body with smooth curves made of aluminium crafted in one piece with no visible seams. Surface white, silver, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI). Colour temperature 2200K, 2700K, 3000K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80.
![](/site/assets/files/5425/liquid-line-compact-wall-w5-0001-.0x556.png)
![](/site/assets/files/5425/liquid-line-compact-wall-w5-0002.0x556.png)
![](/site/assets/files/5425/liquid-line-compact-wall-w5-0003.0x556.png)
![](/site/assets/files/5425/liquid-line-compact-wall-w5-0004.0x556.png)
![](/site/assets/files/5425/liquid-line-compact-wall-w5-0005.0x556.png)
Product adjustments
![](/site/assets/files/5902/liquid-line-compact-g5p5-suspended-surface-white.92x92.jpg)
Snow White
![](/site/assets/files/5903/liquid-line-compact-g5p5-suspended-surface-silver.92x92.jpg)
Satin Silver
![](/site/assets/files/5904/liquid-line-compact-g5p5-suspended-surface-graphite.92x92.jpg)
Urban Graphite
![](/site/assets/files/5905/liquid-line-compact-g5p5-suspended-surface-black.92x92.jpg)
Jet Black
![](/site/assets/files/5906/liquid-line-compact-g5p5-suspended-surface-copper.92x92.jpg)
Satin Copper
![](/site/assets/files/5907/liquid-line-compact-g5p5-suspended-surface-chapagne.92x92.jpg)
Anodic Champagne
Configuration and data download
Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
---|---|---|---|---|---|---|---|---|---|
QW5OWE-830H-L139 | Liquid Line-W5 | L=139mm | Opal diffuser | Snow White | 3000K | Switchable | 1346lm | 16W | |
QW5OSE-830H-L139 | Liquid Line-W5 | L=139mm | Opal diffuser | Radiant Silver | 3000K | Switchable | 1346lm | 16W | |
QW5OBE-830H-L139 | Liquid Line-W5 | L=139mm | Opal diffuser | Jet Black | 3000K | Switchable | 1346lm | 16W | |
QW5OWE-840H-L139 | Liquid Line-W5 | L=139mm | Opal diffuser | Snow White | 4000K | Switchable | 1440lm | 16W | |
QW5OSE-840H-L139 | Liquid Line-W5 | L=139mm | Opal diffuser | Radiant Silver | 4000K | Switchable | 1440lm | 16W | |
QW5OBE-840H-L139 | Liquid Line-W5 | L=139mm | Opal diffuser | Jet Black | 4000K | Switchable | 1440lm | 16W | |
QW5OWL-830H-L139 | Liquid Line-W5 | L=139mm | Opal diffuser | Snow White | 3000K | Dimmable (DALI) | 1346lm | 16W | |
QW5OSL-830H-L139 | Liquid Line-W5 | L=139mm | Opal diffuser | Radiant Silver | 3000K | Dimmable (DALI) | 1346lm | 16W | |
QW5OBL-830H-L139 | Liquid Line-W5 | L=139mm | Opal diffuser | Jet Black | 3000K | Dimmable (DALI) | 1346lm | 16W | |
QW5OWL-840H-L139 | Liquid Line-W5 | L=139mm | Opal diffuser | Snow White | 4000K | Dimmable (DALI) | 1440lm | 16W |
