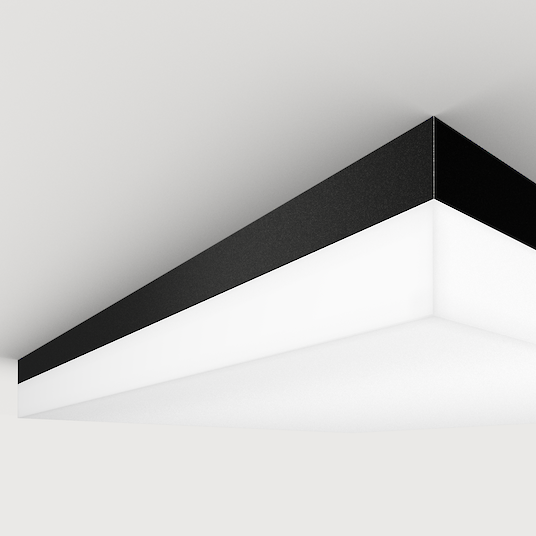

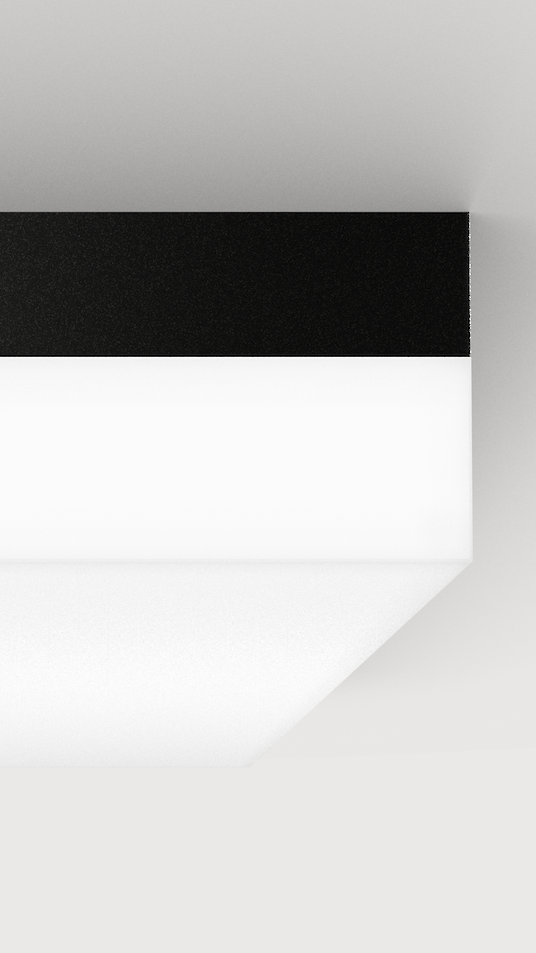

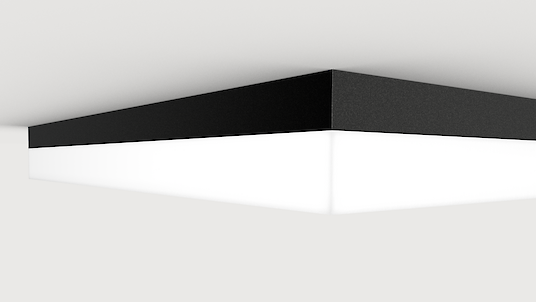

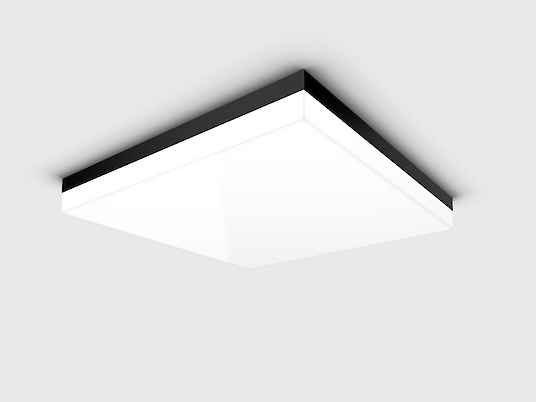

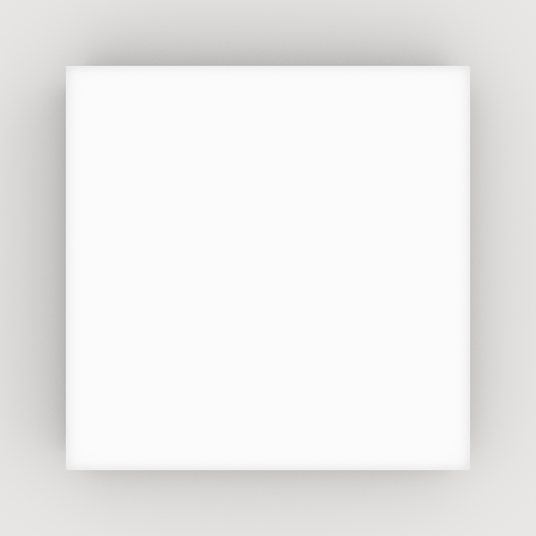

LED surface-mounted luminaire. Omnidirectional light distribution for discreet illumination of the ceiling. Luminaire body made of aluminium. Surface white, silver, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Ambient diffuser made of frosted acrylic glass for general lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of emergency lighting components, sensor technology.
Product adjustments
Snow White
Radiant Silver
Urban Graphite
Jet Black
Anodic Champagne
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| CA7FSE-840M-Q300 | Cubic-A7 | L=300mm | Ambient diffuser | Radiant Silver | 4000K | Switchable | 1480lm | 12W | |
| CA7FSE-840H-Q300 | Cubic-A7 | L=300mm | Ambient diffuser | Radiant Silver | 4000K | Switchable | 2150lm | 15W | |
| CA7FSE-830M-Q300 | Cubic-A7 | L=300mm | Ambient diffuser | Radiant Silver | 3000K | Switchable | 1384lm | 12W | |
| CA7FSE-830H-Q300 | Cubic-A7 | L=300mm | Ambient diffuser | Radiant Silver | 3000K | Switchable | 2010lm | 15W | |
| CA7FSL-840M-Q300 | Cubic-A7 | L=300mm | Ambient diffuser | Radiant Silver | 4000K | Dimmable (DALI) | 1480lm | 12W | |
| CA7FSL-840H-Q300 | Cubic-A7 | L=300mm | Ambient diffuser | Radiant Silver | 4000K | Dimmable (DALI) | 2150lm | 15W | |
| CA7FSL-830M-Q300 | Cubic-A7 | L=300mm | Ambient diffuser | Radiant Silver | 3000K | Dimmable (DALI) | 1384lm | 12W | |
| CA7FSL-830H-Q300 | Cubic-A7 | L=300mm | Ambient diffuser | Radiant Silver | 3000K | Dimmable (DALI) | 2010lm | 15W | |
| CA7FBE-840M-Q300 | Cubic-A7 | L=300mm | Ambient diffuser | Jet Black | 4000K | Switchable | 1480lm | 12W | |
| CA7FBE-840H-Q300 | Cubic-A7 | L=300mm | Ambient diffuser | Jet Black | 4000K | Switchable | 2150lm | 15W |
