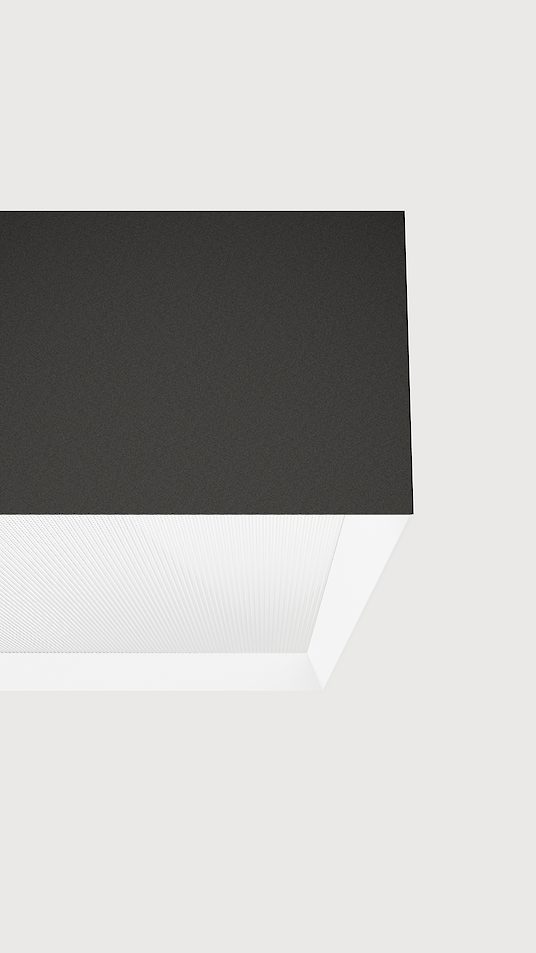

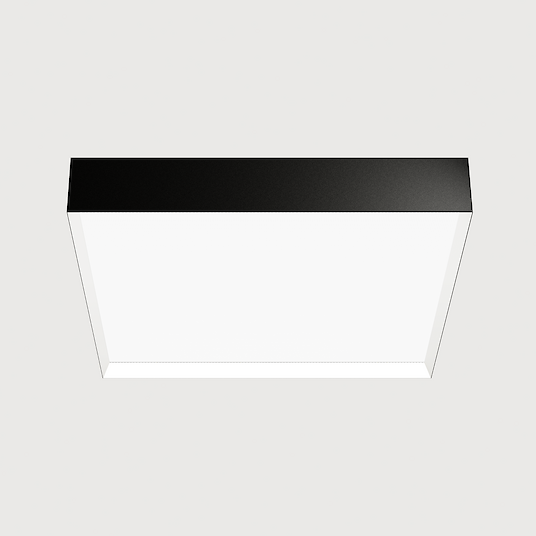

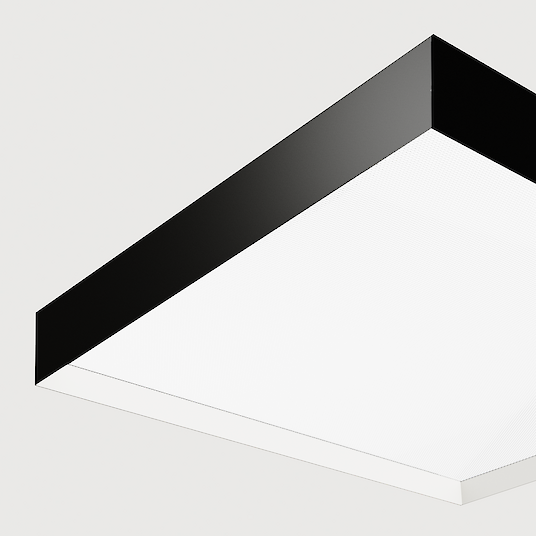

LED surface-mounted luminaire for walls and ceilings
Direct only light distribution. Luminaire body made of aluminum profile. Recessed screen with optimized glare reduction and decorative lighting impact. Outer housing and all-round reflector ring available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of emergency lighting components.
Product adjustments
Snow White | Snow White
Snow White | Radiant Silver
Snow White | Jet Black
Snow White | Satin Gold
Snow White | Anodic Champagne
Snow White | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| CA3AWL-827M-Q530-W | Cubic-A3 | L=530mm | Microprismatic screen | Snow White | 2700K | Dimmable (DALI) | Reflector: Snow White | 3394lm | 27W | |
| CA3ABE-840H-Q1200-B | Cubic-A3 | L=1200mm | Microprismatic screen | Jet Black | 4000K | Switchable | Reflector: Jet Black | 23550lm | 228W | |
| CA3AWE-830M-Q330-W | Cubic-A3 | L=330mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Snow White | 1272lm | 12W | |
| CA3ABE-840H-Q1200-G | Cubic-A3 | L=1200mm | Microprismatic screen | Jet Black | 4000K | Switchable | Reflector: Satin Gold | 23550lm | 228W | |
| CA3AWE-830M-Q330-B | Cubic-A3 | L=330mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Jet Black | 1272lm | 12W | |
| CA3AWL-827M-Q530-B | Cubic-A3 | L=530mm | Microprismatic screen | Snow White | 2700K | Dimmable (DALI) | Reflector: Jet Black | 3394lm | 27W | |
| CA3AWL-827M-Q530-G | Cubic-A3 | L=530mm | Microprismatic screen | Snow White | 2700K | Dimmable (DALI) | Reflector: Satin Gold | 3394lm | 27W | |
| CA3AWE-830M-Q330-G | Cubic-A3 | L=330mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Satin Gold | 1272lm | 12W | |
| CA3AWE-827H-Q1200-W | Cubic-A3 | L=1200mm | Microprismatic screen | Snow White | 2700K | Switchable | Reflector: Snow White | 22019lm | 228W | |
| CA3AWE-827H-Q1200-B | Cubic-A3 | L=1200mm | Microprismatic screen | Snow White | 2700K | Switchable | Reflector: Jet Black | 22019lm | 228W |
