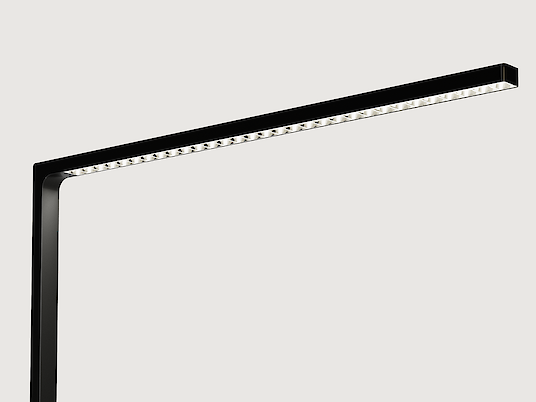

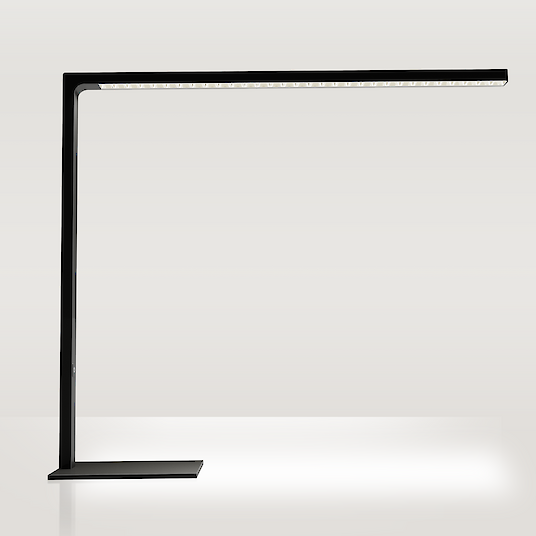

Liquid Line TX | System 40mm Table Asymmetric

LED task light

Direct only light distribution. Luminaire body with smooth bends made of aluminium, crafted in one piece with no visible seams. Surface white, silver, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19). Louvre available in various colour finishes. Intuitive pole mounted control panel for dimming. Colour temperature 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Optionally available with steel base plate or table clamp.

Product adjustments

Rectangular Base

Table Clamp

Table Grommet

Switch & Dimm

Snow White | Snow White

Snow White | Satin Silver

Snow White | Jet Black

Snow White | Anodic Champagne

Snow White | Satin Copper

Snow White | Satin Gold

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Base-Type

Reflector Colour Inside

Apply
Filter
Downloads Article code Productname Length L/Diameter D (mm) Optical system Surface finish Colour temperature Control Base-Type Reflector Colour Inside Luminous Flux Power consumption
QTXLWS-830M-L980-TW Liquid Line-TX L=980mm Lens Louvre Snow White 3000K Switch&dim Table clamp Reflector: Snow White 1786lm 16W
QTXLWS-830M-L980-TG Liquid Line-TX L=980mm Lens Louvre Snow White 3000K Switch&dim Table clamp Reflector: Satin Gold 1786lm 16W
QTXLWS-830M-L980-TB Liquid Line-TX L=980mm Lens Louvre Snow White 3000K Switch&dim Table clamp Reflector: Jet Black 1786lm 16W
QTXLSS-830M-L980-TA Liquid Line-TX L=980mm Lens Louvre Radiant Silver 3000K Switch&dim Table clamp Reflector: Satin Silver 1786lm 16W
QTXLBS-830M-L980-TB Liquid Line-TX L=980mm Lens Louvre Jet Black 3000K Switch&dim Table clamp Reflector: Jet Black 1786lm 16W
QTXLBS-830M-L980-TG Liquid Line-TX L=980mm Lens Louvre Jet Black 3000K Switch&dim Table clamp Reflector: Satin Gold 1786lm 16W
QTXLWS-835M-L980-TW Liquid Line-TX L=980mm Lens Louvre Snow White 3500K Switch&dim Table clamp Reflector: Snow White 1910lm 16W
QTXLWS-835M-L980-TG Liquid Line-TX L=980mm Lens Louvre Snow White 3500K Switch&dim Table clamp Reflector: Satin Gold 1910lm 16W
QTXLWS-835M-L980-TB Liquid Line-TX L=980mm Lens Louvre Snow White 3500K Switch&dim Table clamp Reflector: Jet Black 1910lm 16W
QTXLSS-835M-L980-TA Liquid Line-TX L=980mm Lens Louvre Radiant Silver 3500K Switch&dim Table clamp Reflector: Satin Silver 1910lm 16W
