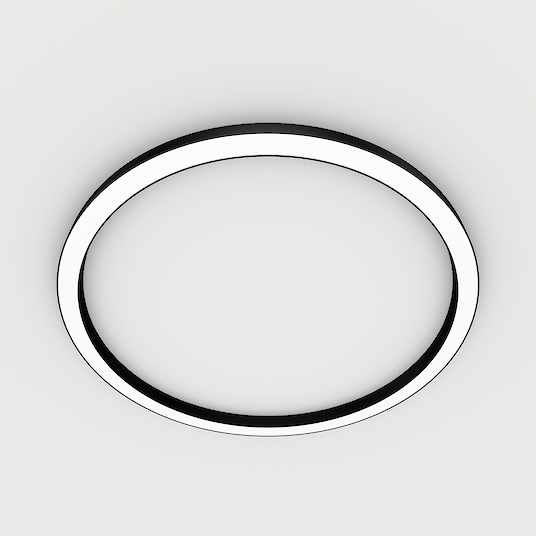

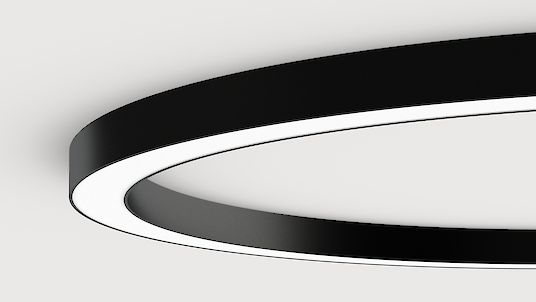

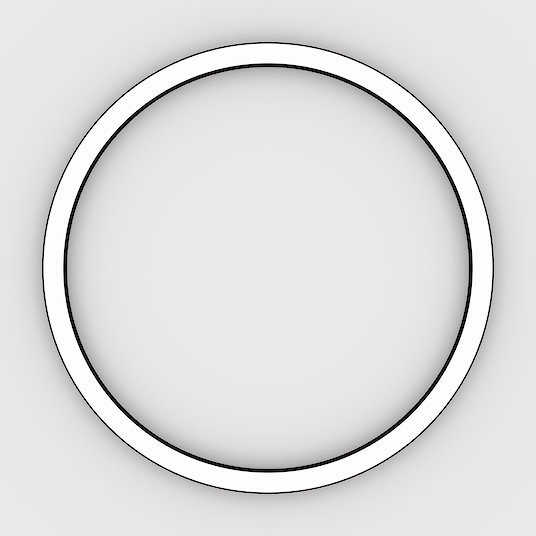

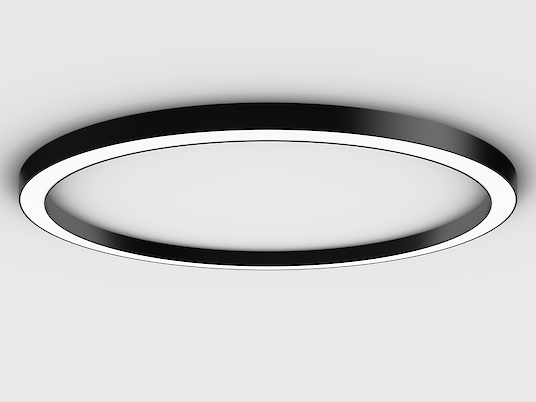

LED surface-mounted luminaire

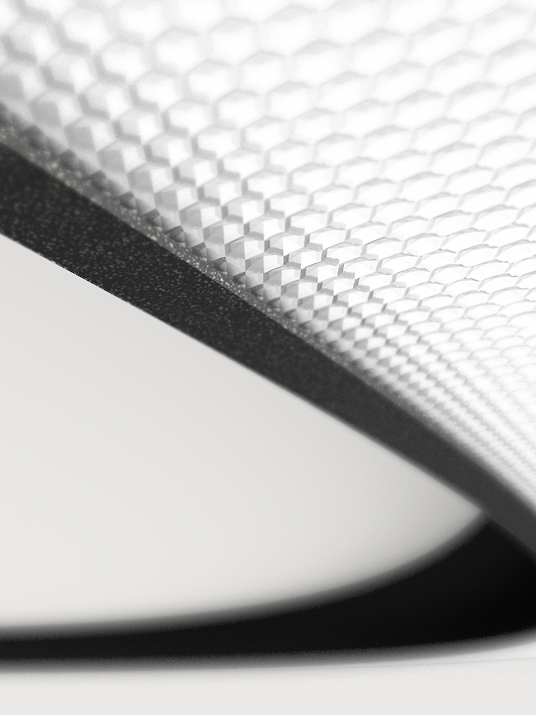

Direct only light distribution. Luminaire body made of 100mm wide aluminium profile. 13 different diameters from 600mm to 8000mm. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum.
Product adjustments
Midpoint Spotlight XP 1000lm/19W–3000lm/31W Ø90mm
Snow White
Radiant Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| RA1ASE-827M-D1200 | Ringo Star-A1 | D=1200mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 9724lm | 91W | |
| RA1ASE-827M-D1500 | Ringo Star-A1 | D=1500mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 12492lm | 121W | |
| RA1ASE-827M-D2000 | Ringo Star-A1 | D=2000mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 17485lm | 169W | |
| RA1ASE-827M-D2500 | Ringo Star-A1 | D=2500mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 21786lm | 204W | |
| RA1ASE-827M-D3000 | Ringo Star-A1 | D=3000mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 26788lm | 250W | |
| RA1ASE-827M-D3500 | Ringo Star-A1 | D=3500mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 30107lm | 281W | |
| RA1ASE-827M-D4000 | Ringo Star-A1 | D=4000mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 35156lm | 331W | |
| RA1ASE-827M-D5000 | Ringo Star-A1 | D=5000mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 45207lm | 421W | |
| RA1ASE-827M-D600 | Ringo Star-A1 | D=600mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 4563lm | 44W | |
| RA1ASE-827M-D6000 | Ringo Star-A1 | D=6000mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 53576lm | 499W |
