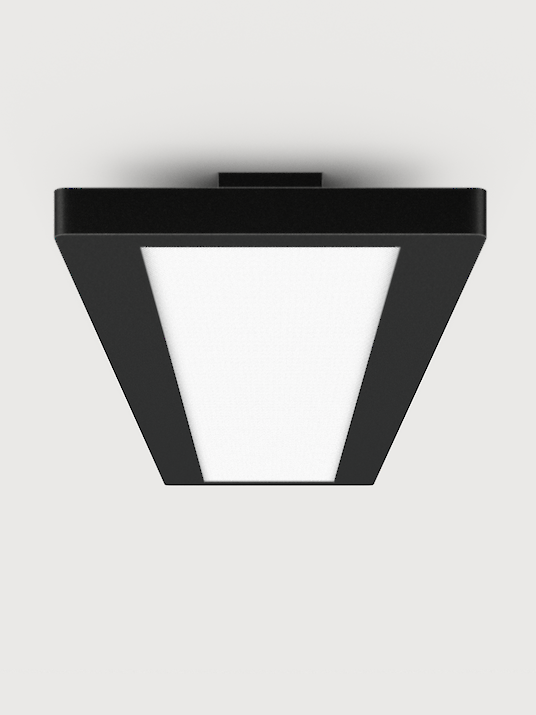

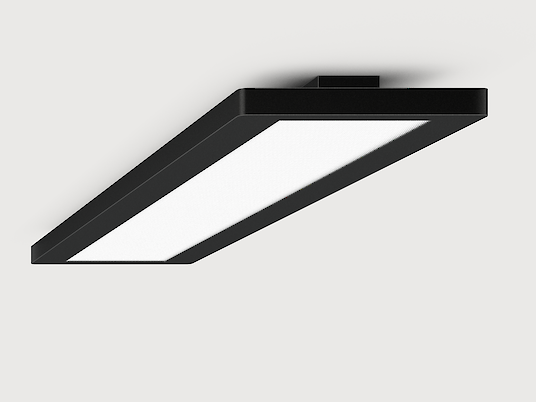

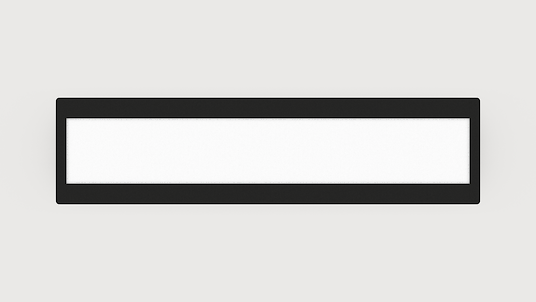

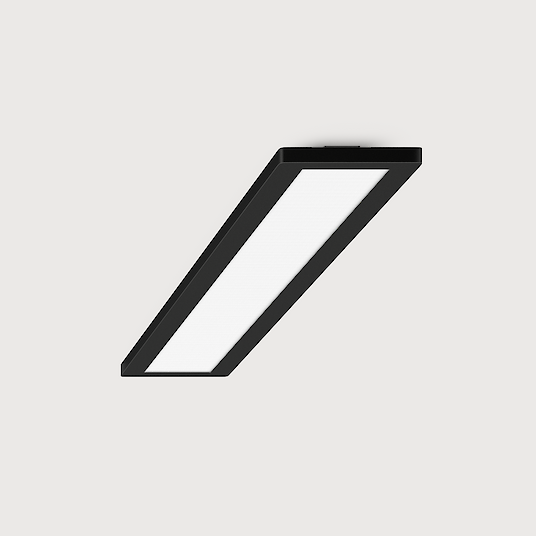

LED surface-mounted luminaire for walls or ceilings

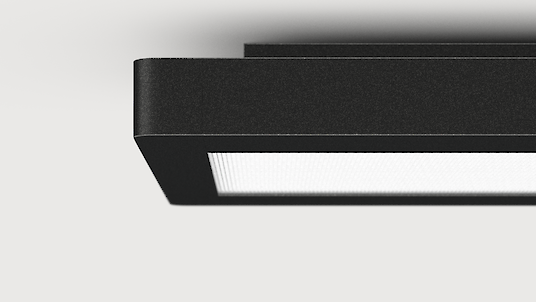

Direct and indirect light distribution or direct only light distribution. Luminaire body made of 25mm high aluminium profile. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of tracks and spotlights, emergency lighting components, sensor technology.
Product adjustments
Snow White
Silver Anodised
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| JX4ASL-830M-L920 | Plank-X4 | L=920mm | Microprismatic screen | Radiant Silver | 3000K | Dimmable (DALI) | 2655lm | 24W | |
| JX4ABL-830M-L920 | Plank-X4 | L=920mm | Microprismatic screen | Jet Black | 3000K | Dimmable (DALI) | 2655lm | 24W | |
| JX4AWL-840M-L920 | Plank-X4 | L=920mm | Microprismatic screen | Snow White | 4000K | Dimmable (DALI) | 2840lm | 24W | |
| JX4ASL-840M-L920 | Plank-X4 | L=920mm | Microprismatic screen | Radiant Silver | 4000K | Dimmable (DALI) | 2840lm | 24W | |
| JX4ABL-840M-L920 | Plank-X4 | L=920mm | Microprismatic screen | Jet Black | 4000K | Dimmable (DALI) | 2840lm | 24W | |
| JX4AWE-830H-L920 | Plank-X4 | L=920mm | Microprismatic screen | Snow White | 3000K | Switchable | 4236lm | 38W | |
| JX4ASE-830H-L920 | Plank-X4 | L=920mm | Microprismatic screen | Radiant Silver | 3000K | Switchable | 4236lm | 38W | |
| JX4ABE-830H-L920 | Plank-X4 | L=920mm | Microprismatic screen | Jet Black | 3000K | Switchable | 4236lm | 38W | |
| JX4AWE-840H-L920 | Plank-X4 | L=920mm | Microprismatic screen | Snow White | 4000K | Switchable | 4530lm | 38W | |
| JX4ASE-840H-L920 | Plank-X4 | L=920mm | Microprismatic screen | Radiant Silver | 4000K | Switchable | 4530lm | 38W |
