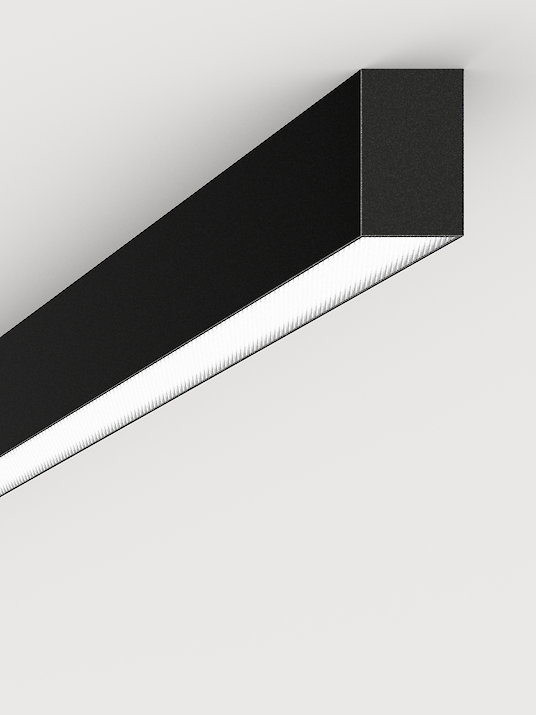

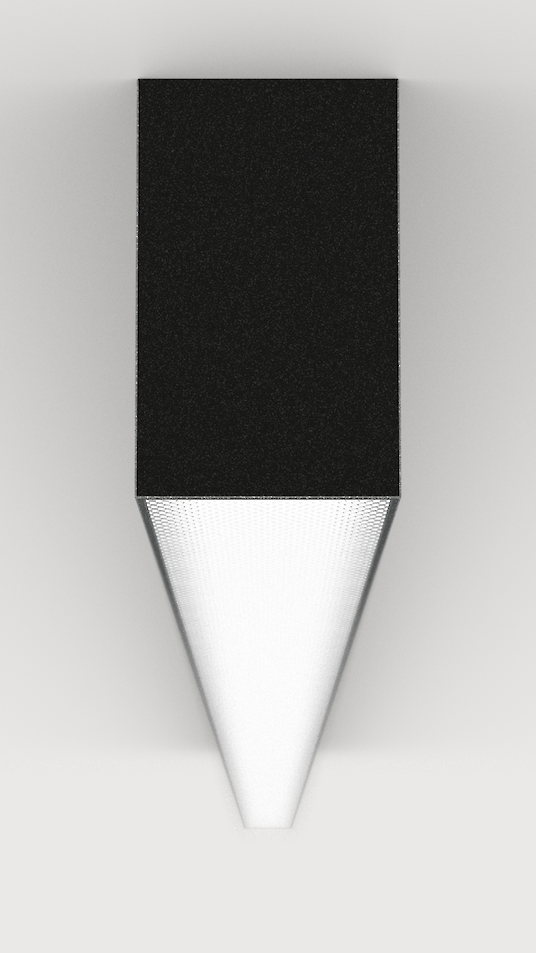

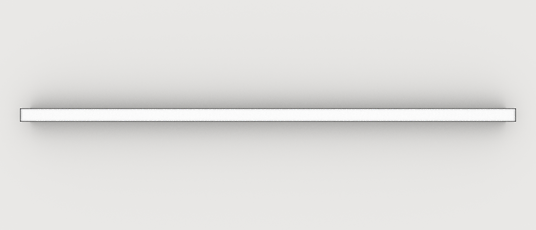

LED surface-mounted luminaire for walls or ceilings

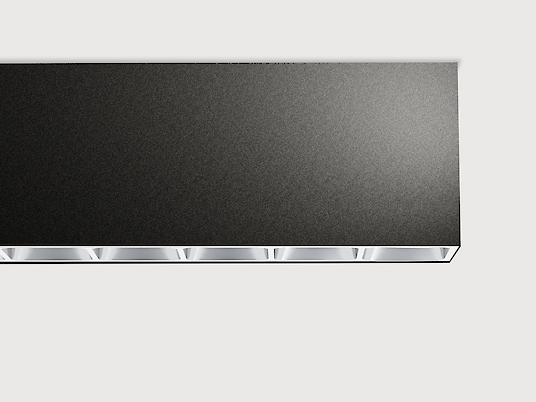

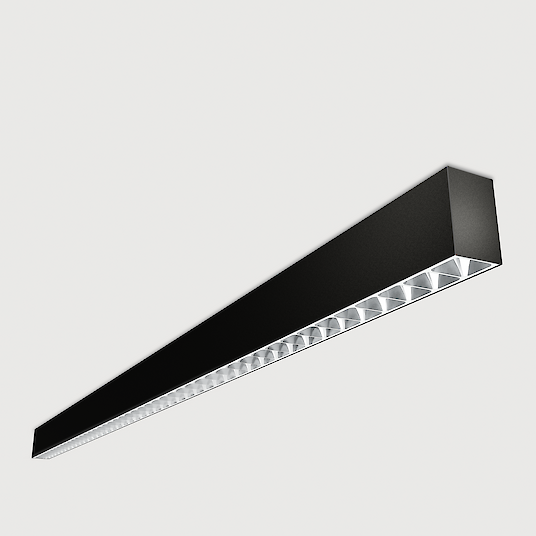

Direct only light distribution. Light channel made of 40mm wide aluminium profile. Bespoke lengths possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of tracks and spotlights, emergency lighting components, sensor technology.
Product adjustments
90° Corner Opal/Microprismatic
Midpin-Downlight XD 770lm/10W/Ø40mm
Midpin Spotlight XM 770lm/10W/Ø40mm
Midpin Spotlight XP 770lm/10W/Ø40mm
3-Phase Track
Multisensor
Snow White | Satin Silver
Silver Anodised | Satin Silver
Snow White | Jet Black
Jet Black | Anodic Champagne
Jet Black | Satin Gold
Ivory White | Anodic Champagne
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| LAXFEE-830M-L1000 | Matric-AX | Linear metre L=1000mm | Ambient diffuser | Silver Anodised | 3000K | Switchable | 1711lm/m | 13W/m | ||
| LAXFBE-840M-L1000 | Matric-AX | Linear metre L=1000mm | Ambient diffuser | Jet Black | 4000K | Switchable | 1830lm/m | 13W/m | ||
| LAXFWE-840M-L1000 | Matric-AX | Linear metre L=1000mm | Ambient diffuser | Snow White | 4000K | Switchable | 1830lm/m | 13W/m | ||
| LAXFWE-840H-L1000 | Matric-AX | Linear metre L=1000mm | Ambient diffuser | Snow White | 4000K | Switchable | 2480lm/m | 17W/m | ||
| LAXFWL-840M-L1000 | Matric-AX | Linear metre L=1000mm | Ambient diffuser | Snow White | 4000K | Dimmable (DALI) | 1830lm/m | 13W/m | ||
| LAXLEE-830E-Lxxxx-A | Matric-AX | Special length L=xxxxmm | Lens Louvre | Silver Anodised | 3000K | Switchable | Reflector: Satin Silver | 1580lm/m | 13W/m | |
| LAXFWE-830H-L1000 | Matric-AX | Linear metre L=1000mm | Ambient diffuser | Snow White | 3000K | Switchable | 2319lm/m | 17W/m | ||
| LAXFEL-840H-Lxxxx | Matric-AX | Special length L=xxxxmm | Ambient diffuser | Silver Anodised | 4000K | Dimmable (DALI) | 2480lm/m | 17W/m | ||
| LAXFBL-840H-Lxxxx | Matric-AX | Special length L=xxxxmm | Ambient diffuser | Jet Black | 4000K | Dimmable (DALI) | 2480lm/m | 17W/m | ||
| LAXAWE-830E-Lxxxx | Matric-AX | Special length L=xxxxmm | Microprismatic screen | Snow White | 3000K | Switchable | 972lm/m | 10W/m |
