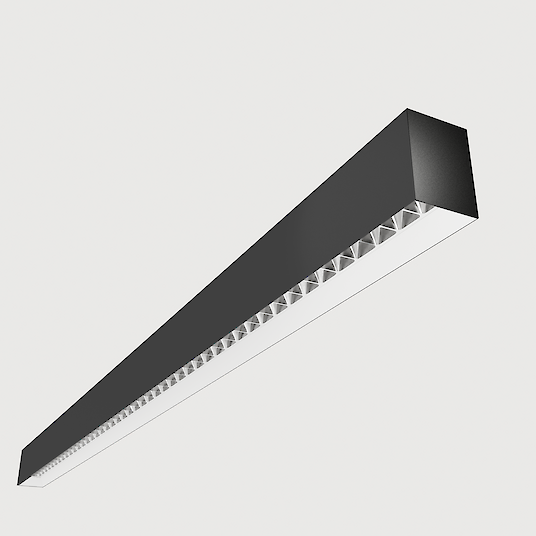

LED surface-mounted luminaire for walls or ceilings

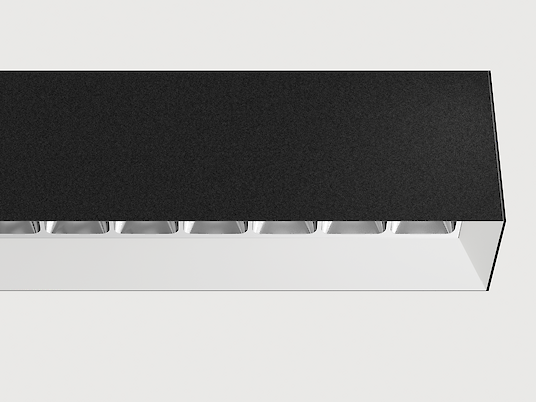

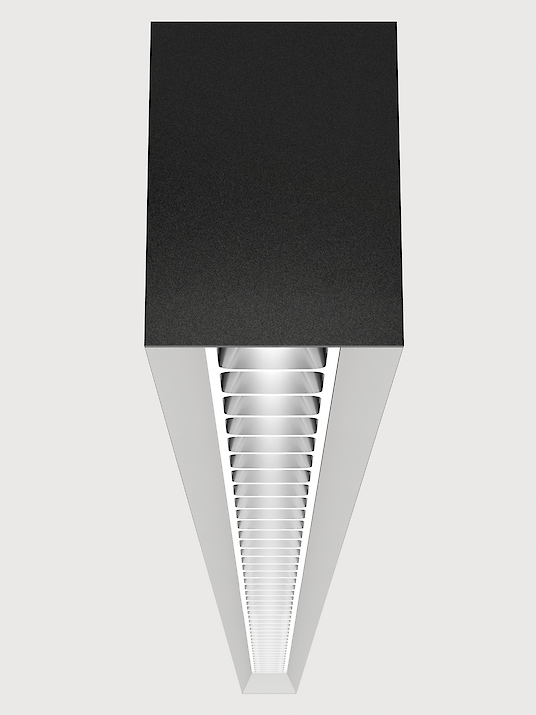

Direct only light distribution. Light channel made of 55mm wide aluminium profile. Bespoke lengths possible. Recessed screen with optimized glare reduction and decorative lighting impact. Outer housing and all-around reflector ring available in various finishes and combinations. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of tracks and spotlights, emergency lighting components, sensor technology and many other options.
Product adjustments
Snow White | Snow White
Satin Silver | Snow White
Satin Silver | Jet Black
Jet Black | Satin Gold
Jet Black | Anodic Champagne
Snow White | Satin Copper
Snow White | Snow White
Satin Silver | Snow White
Jet Black | Satin Silver
Jet Black | Jet Black
Jet Black | Satin Gold
Satin Copper | Snow White
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| LA9LWE-840H-L1000-G | Matric-A9 | Linear metre L=1000mm | Lens Louvre | Snow White | 4000K | Switchable | Reflector: Satin Gold | 3160lm/m | 24W/m | |
| LA9LWL-840E-L1000-W | Matric-A9 | Linear metre L=1000mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Reflector: Snow White | 1690lm/m | 13W/m | |
| LA9AWL-830E-L1000-G | Matric-A9 | Linear metre L=1000mm | Microprismatic screen | Snow White | 3000K | Dimmable (DALI) | Reflector: Satin Gold | 935lm/m | 10W/m | |
| LA9OBE-840H-L1000-G | Matric-A9 | Linear metre L=1000mm | Opal diffuser | Jet Black | 4000K | Switchable | Reflector: Satin Gold | 2000lm/m | 17W/m | |
| LA9OWL-830M-L1000-W | Matric-A9 | Linear metre L=1000mm | Opal diffuser | Snow White | 3000K | Dimmable (DALI) | Reflector: Snow White | 1374lm/m | 13W/m | |
| LA9LWL-840H-L1000-G | Matric-A9 | Linear metre L=1000mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Reflector: Satin Gold | 3160lm/m | 24W/m | |
| LA9LBE-840H-L1000-B | Matric-A9 | Linear metre L=1000mm | Lens Louvre | Jet Black | 4000K | Switchable | Reflector: Jet Black | 3160lm/m | 24W/m | |
| LA9AWE-830H-L1000-B | Matric-A9 | Linear metre L=1000mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Jet Black | 1664lm/m | 17W/m | |
| LA9AWE-830H-L1000-G | Matric-A9 | Linear metre L=1000mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Satin Gold | 1664lm/m | 17W/m | |
| LA9AAE-830H-L1000-A | Matric-A9 | Linear metre L=1000mm | Microprismatic screen | Satin Silver | 3000K | Switchable | Reflector: Satin Silver | 1664lm/m | 17W/m |
