Cubic Evolution Y6/X6 | Square Surface

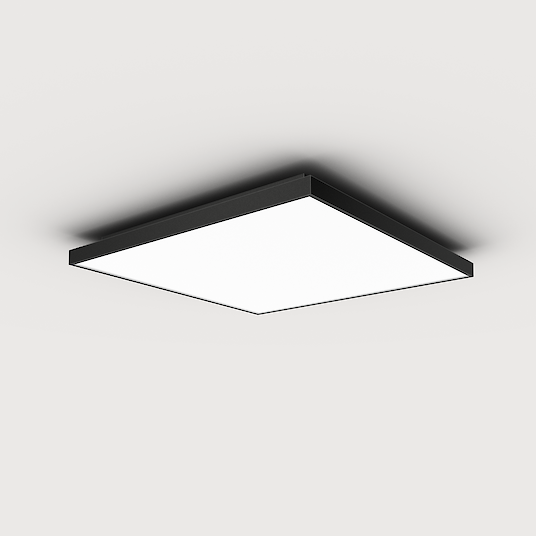

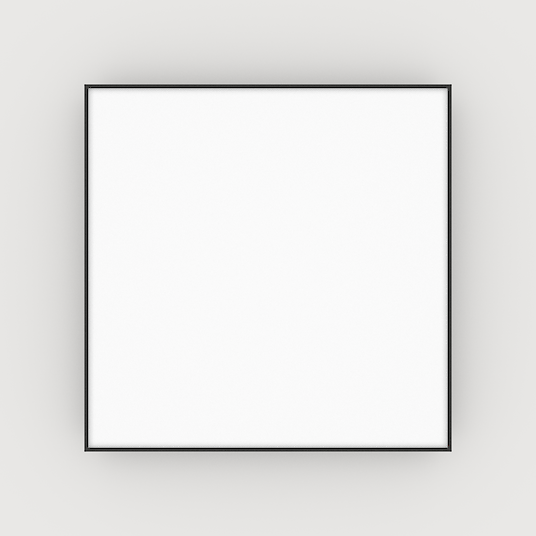

LED surface-mounted luminaire for walls or ceilings

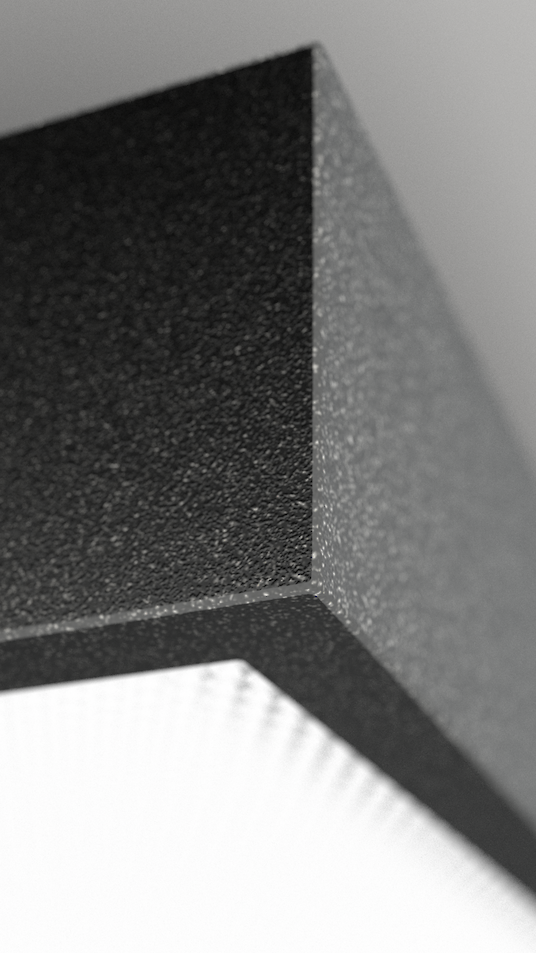

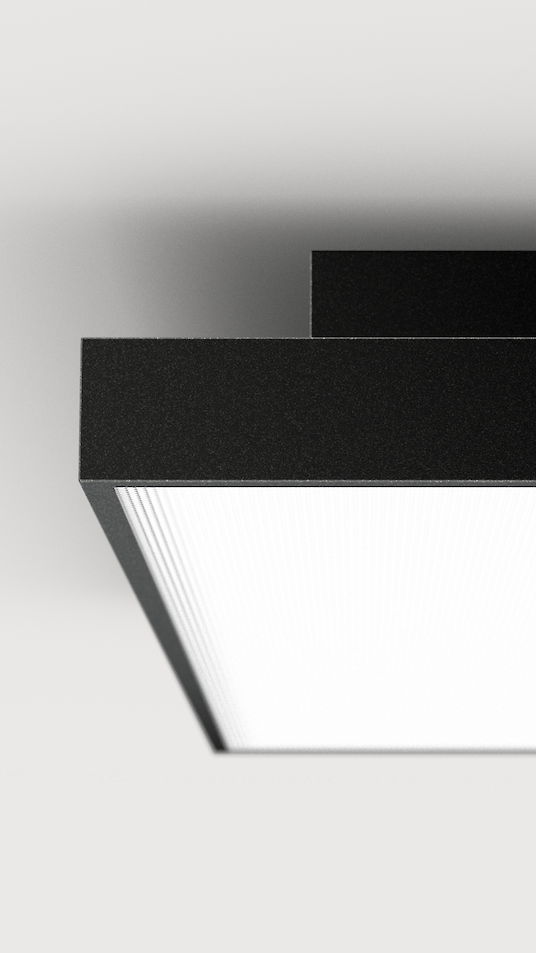

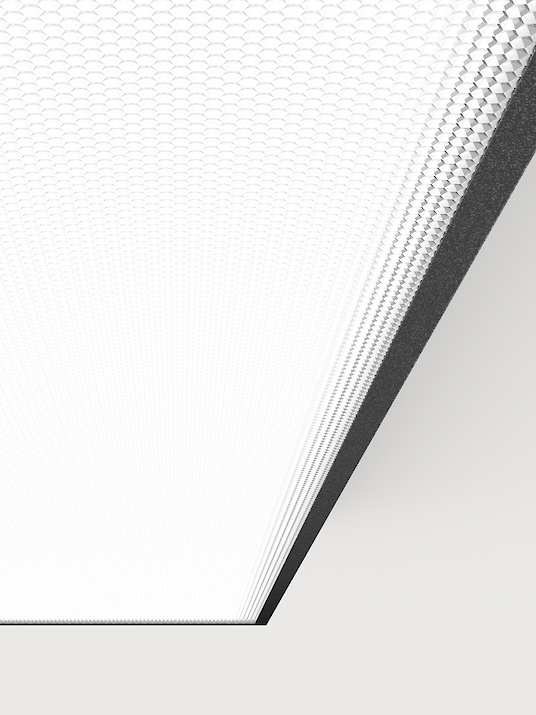

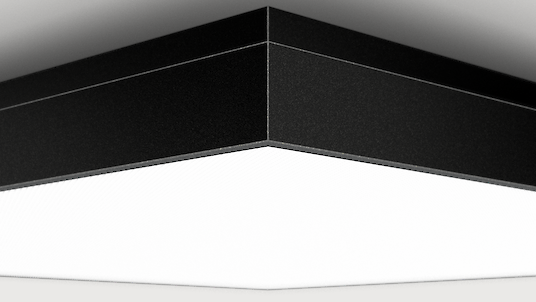

Direct and indirect light distribution or direct only light distribution. Tiered luminaire body made of aluminium profile with only 25mm visible trim. Surface natural anodised or white, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Indirect light with innovative lens technology for wide-angle ceiling illumination. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of emergency lighting components, sensor technology.

Product adjustments

Multisensor

Emergency Module

Snow White

Silver Anodised

Urban Graphite

Jet Black

Anodic Champagne

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Apply
Filter
Downloads Article code Productname Length L/Diameter D (mm) Optical system Surface finish Colour temperature Control Luminous Flux Power consumption
CX6AWE-840M-Q300 Cubic-X6 L=300mm Microprismatic screen Snow White 4000K Switchable 1970lm 16W
CX6AWE-840M-Q400 Cubic-X6 L=400mm Microprismatic screen Snow White 4000K Switchable 2920lm 23W
CX6AWE-840M-Q500 Cubic-X6 L=500mm Microprismatic screen Snow White 4000K Switchable 4580lm 33W
CX6AWE-840M-Q600 Cubic-X6 L=600mm Microprismatic screen Snow White 4000K Switchable 7240lm 55W
CX6OWE-840M-Q300 Cubic-X6 L=300mm Opal diffuser Snow White 4000K Switchable 1930lm 16W
CX6OWE-840M-Q400 Cubic-X6 L=400mm Opal diffuser Snow White 4000K Switchable 2870lm 23W
CX6OWE-840M-Q500 Cubic-X6 L=500mm Opal diffuser Snow White 4000K Switchable 4550lm 33W
CX6OWE-840M-Q600 Cubic-X6 L=600mm Opal diffuser Snow White 4000K Switchable 7170lm 55W
CX6AEE-840M-Q300 Cubic-X6 L=300mm Microprismatic screen Silver Anodised 4000K Switchable 1970lm 16W
CX6AEE-840M-Q400 Cubic-X6 L=400mm Microprismatic screen Silver Anodised 4000K Switchable 2920lm 23W
