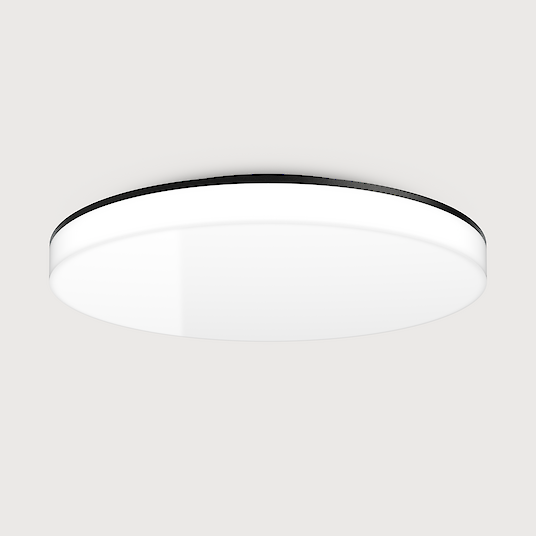

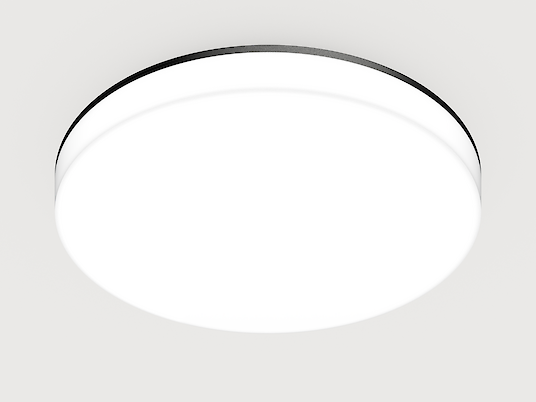

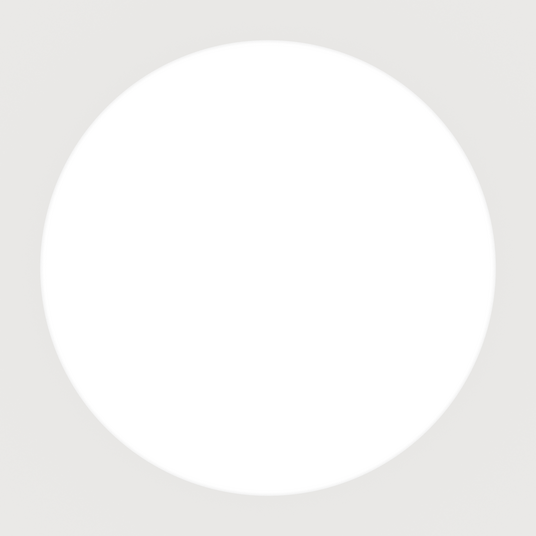

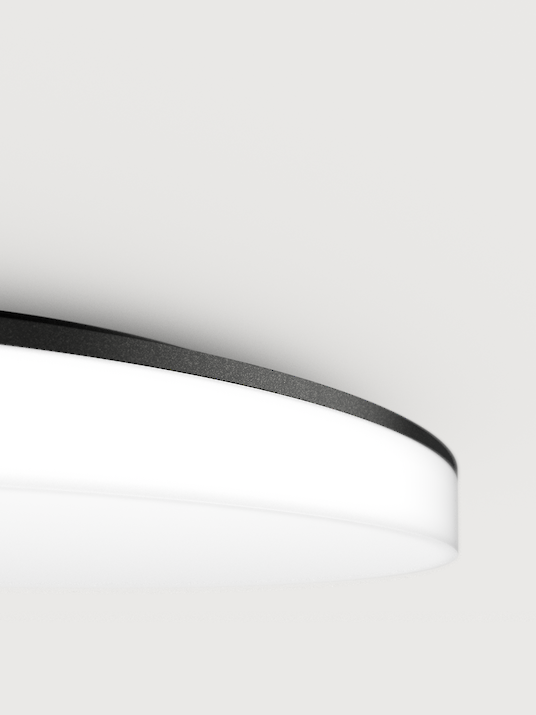

LED surface-mounted luminaire for walls or ceilings. Direct-omnidirectional light distribution for soft wall or ceiling illumination or direct-indirect light distribution for stronger indirect light distribution. Luminaire body made from cast acrylic glass. Available with microprismatic screen with optimized glare reduction especially for workplaces or satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Spacers and lens holder graphite coated. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of emergency lighting components.
Product adjustments
Urban Graphite
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| BY9AUE-830M-D300 | Basic-Y9 | D=300mm | Microprismatic screen | Urban Graphite | 3000K | Switchable | 589lm | 5W | |
| BY9AUL-830M-D300 | Basic-Y9 | D=300mm | Microprismatic screen | Urban Graphite | 3000K | Dimmable (DALI) | 589lm | 5W | |
| BY9AUE-840M-D400 | Basic-Y9 | D=400mm | Microprismatic screen | Urban Graphite | 4000K | Switchable | 1630lm | 13W | |
| BY9AUL-840M-D400 | Basic-Y9 | D=400mm | Microprismatic screen | Urban Graphite | 4000K | Dimmable (DALI) | 1630lm | 13W | |
| BY9AUE-840M-D300 | Basic-Y9 | D=300mm | Microprismatic screen | Urban Graphite | 4000K | Switchable | 630lm | 5W | |
| BY9AUL-840M-D300 | Basic-Y9 | D=300mm | Microprismatic screen | Urban Graphite | 4000K | Dimmable (DALI) | 630lm | 5W | |
| BY9AUE-830H-D300 | Basic-Y9 | D=300mm | Microprismatic screen | Urban Graphite | 3000K | Switchable | 935lm | 9W | |
| BY9AUL-830H-D300 | Basic-Y9 | D=300mm | Microprismatic screen | Urban Graphite | 3000K | Dimmable (DALI) | 935lm | 9W | |
| BY9AUE-830H-D400 | Basic-Y9 | D=400mm | Microprismatic screen | Urban Graphite | 3000K | Switchable | 2655lm | 22W | |
| BY9AUL-830H-D400 | Basic-Y9 | D=400mm | Microprismatic screen | Urban Graphite | 3000K | Dimmable (DALI) | 2655lm | 22W |
