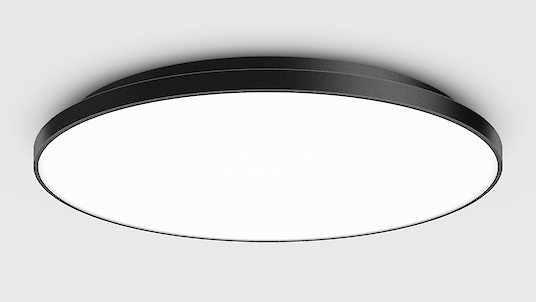

Basic Superflat Y7/X7 | Surface

LED surface-mounted luminaire for walls or ceilings

Direct light distribution and indirect lighting corona or direct only light distribution. Tiered luminaire body made of aluminium profile with 18mm visible trim. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of emergency lighting components, sensor technology.

Product adjustments

Multisensor

Emergency Module

Snow White

Radiant Silver

Urban Graphite

Jet Black

Anodic Champagne

Satin Copper

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Apply
Filter
Downloads Article code Productname Length L/Diameter D (mm) Optical system Surface finish Colour temperature Control Luminous Flux Power consumption
BX7AWE-830M-D300 Basic-X7 D=300mm Microprismatic screen Snow White 3000K Switchable 1178lm 11W
BX7AWE-830M-D400 Basic-X7 D=400mm Microprismatic screen Snow White 3000K Switchable 2179lm 18W
BX7AWE-830M-D500 Basic-X7 D=500mm Microprismatic screen Snow White 3000K Switchable 2805lm 23W
BX7AWE-830M-D600 Basic-X7 D=600mm Microprismatic screen Snow White 3000K Switchable 5030lm 40W
BX7ASE-830M-D300 Basic-X7 D=300mm Microprismatic screen Radiant Silver 3000K Switchable 1178lm 11W
BX7ASE-830M-D400 Basic-X7 D=400mm Microprismatic screen Radiant Silver 3000K Switchable 2179lm 18W
BX7ASE-830M-D500 Basic-X7 D=500mm Microprismatic screen Radiant Silver 3000K Switchable 2805lm 23W
BX7ASE-830M-D600 Basic-X7 D=600mm Microprismatic screen Radiant Silver 3000K Switchable 5030lm 40W
BX7ABE-830M-D300 Basic-X7 D=300mm Microprismatic screen Jet Black 3000K Switchable 1178lm 11W
BX7ABE-830M-D400 Basic-X7 D=400mm Microprismatic screen Jet Black 3000K Switchable 2179lm 18W
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11

This is how this light works in use

Basic Superflat Y7/X7 | Surface get to know better
