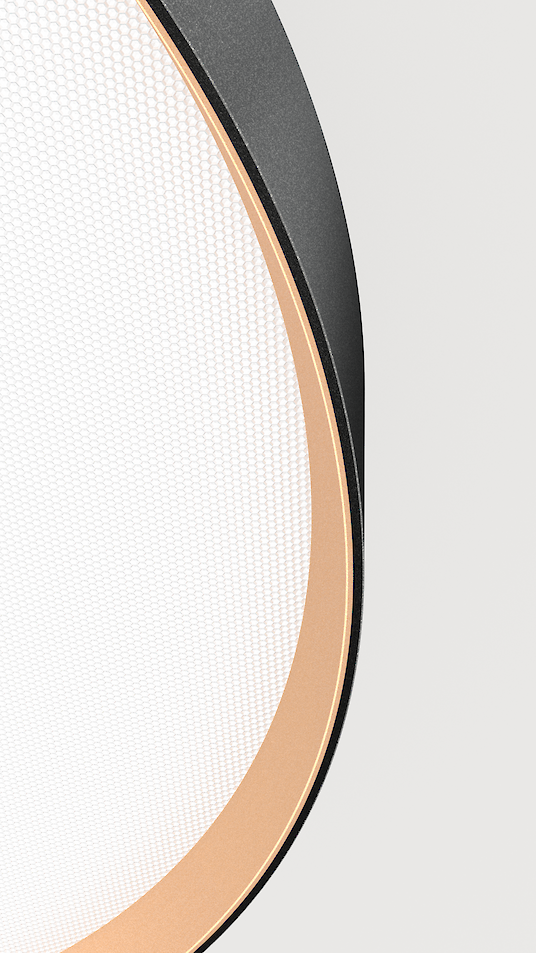

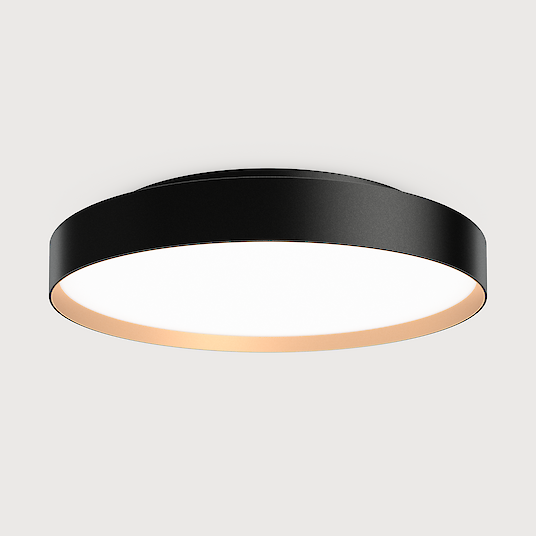

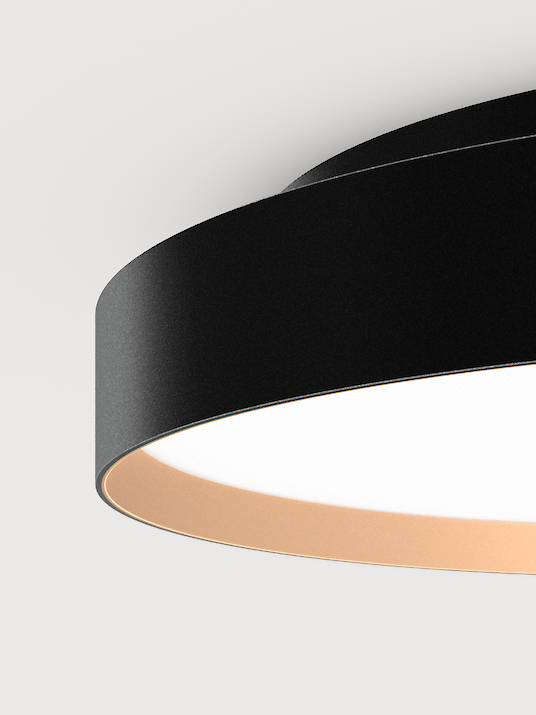

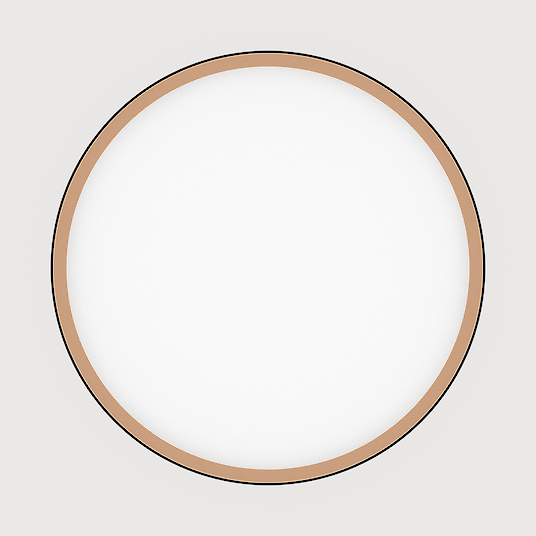

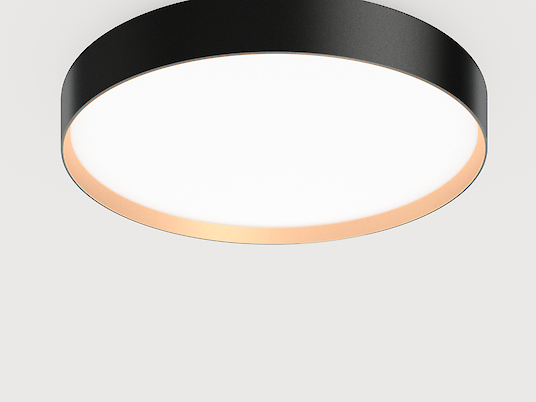

LED surface-mounted luminaire for walls and ceilings
Direct light distribution and indirect lighting corona. Luminaire body made of aluminum profile. Outer housing and inner decor available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of emergency lighting components.
Product adjustments
Multisensor
Emergency Module
Snow White | Snow White
Radiant Silver | Radiant Silver
Urban Graphite | Urban Graphite
Jet Black | Jet Black
Anodic Champagne | Anodic Champagne
Satin Copper | Satin Copper
Snow White | Jet Black
Snow White | Satin Copper
Snow White | Satin Gold
Jet Black | Snow White
Anodic Champagne | Jet Black
Jet Black | Satin Gold
Configuration and data download
Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Luminous Flux | Power consumption |
---|---|---|---|---|---|---|---|---|---|---|
BX3AWE-830M-D300-W | Basic-X3 | D=300mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Snow White | 1384lm | 13W | |
BX3AWE-830M-D300-B | Basic-X3 | D=300mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Jet Black | 1384lm | 13W | |
BX3AWE-830M-D300-G | Basic-X3 | D=300mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Satin Gold | 1384lm | 13W | |
BX3ASE-830M-D300-S | Basic-X3 | D=300mm | Microprismatic screen | Radiant Silver | 3000K | Switchable | Reflector: Radiant Silver | 1384lm | 13W | |
BX3ABE-830M-D300-B | Basic-X3 | D=300mm | Microprismatic screen | Jet Black | 3000K | Switchable | Reflector: Jet Black | 1384lm | 13W | |
BX3ABE-830M-D300-G | Basic-X3 | D=300mm | Microprismatic screen | Jet Black | 3000K | Switchable | Reflector: Satin Gold | 1384lm | 13W | |
BX3AWL-830M-D300-W | Basic-X3 | D=300mm | Microprismatic screen | Snow White | 3000K | Dimmable (DALI) | Reflector: Snow White | 1384lm | 13W | |
BX3AWE-830M-D400-W | Basic-X3 | D=400mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Snow White | 2216lm | 20W | |
BX3AWE-830M-D400-B | Basic-X3 | D=400mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Jet Black | 2216lm | 20W | |
BX3AWE-830M-D400-G | Basic-X3 | D=400mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Satin Gold | 2216lm | 20W |
