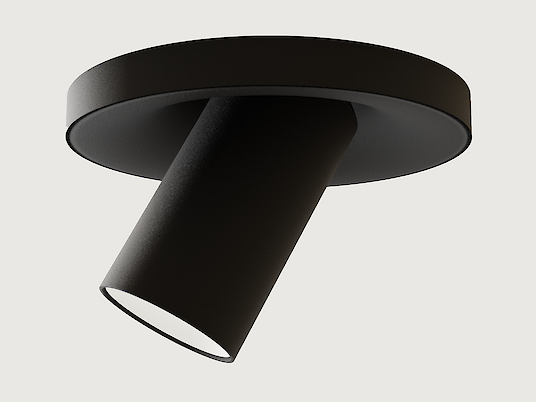

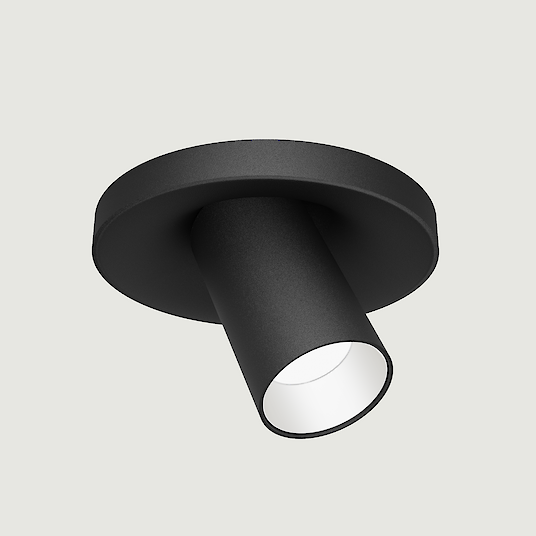

LED recessed spotlight for installation in ceiling cut-outs openings
Rotatable and tiltable. Separate driver included, optionally switchable or dimmable (DALI). Housing made of white, silver, black or champagne coated aluminum. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Colour temperature available as 2700K, 3000K or 4000K or as Dim to Warm 3000K-1800K. Colour rendering CRI>90. Binning≤ MacAdam 3. Changeable lens optics with beam angle 30° (medium) or 40° (flood). Optic ring available in different colours.
Product adjustments
Jet Black | Snow White
Jet Black | Satin Silver
Jet Black | Jet Black
Jet Black | Satin Gold
Jet Black | Anodic Champagne
Jet Black | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Lens Angle | Surface finish | Control | Colour temperature | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| DM2BWE-940M-G | Midpin-M2 | Medium 30° | Snow White | Switchable | 4000K | Reflector: Satin Gold | 750lm | 11W | |
| DM2CWL-927M-B | Midpin-M2 | Flood 40° | Snow White | Dimmable (DALI) | 2700K | Reflector: Jet Black | 620lm | 11W | |
| DM2CBL-927M-B | Midpin-M2 | Flood 40° | Jet Black | Dimmable (DALI) | 2700K | Reflector: Jet Black | 620lm | 11W | |
| DM2BWE-930M-B | Midpin-M2 | Medium 30° | Snow White | Switchable | 3000K | Reflector: Jet Black | 710lm | 11W | |
| DM2CWL-930M-B | Midpin-M2 | Flood 40° | Snow White | Dimmable (DALI) | 3000K | Reflector: Jet Black | 730lm | 11W | |
| DM2BBL-930M-B | Midpin-M2 | Medium 30° | Jet Black | Dimmable (DALI) | 3000K | Reflector: Jet Black | 710lm | 11W | |
| DM2CBL-930M-B | Midpin-M2 | Flood 40° | Jet Black | Dimmable (DALI) | 3000K | Reflector: Jet Black | 730lm | 11W | |
| DM2BWE-940M-B | Midpin-M2 | Medium 30° | Snow White | Switchable | 4000K | Reflector: Jet Black | 750lm | 11W | |
| DM2CWE-940M-B | Midpin-M2 | Flood 40° | Snow White | Switchable | 4000K | Reflector: Jet Black | 770lm | 11W | |
| DM2CBL-940M-B | Midpin-M2 | Flood 40° | Jet Black | Dimmable (DALI) | 4000K | Reflector: Jet Black | 770lm | 11W |
