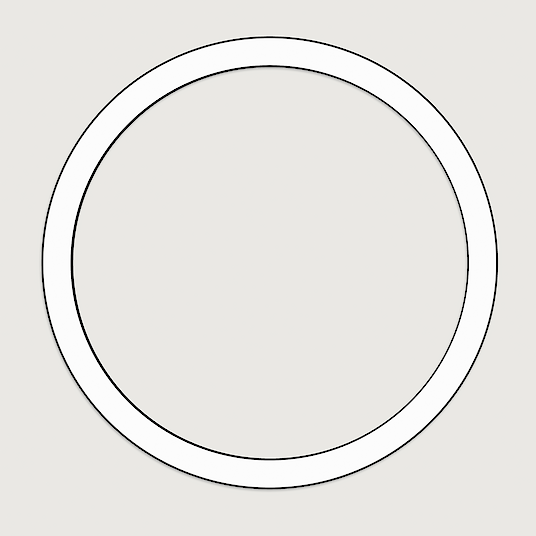

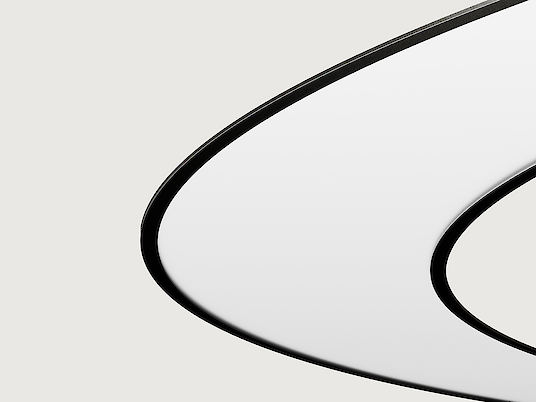

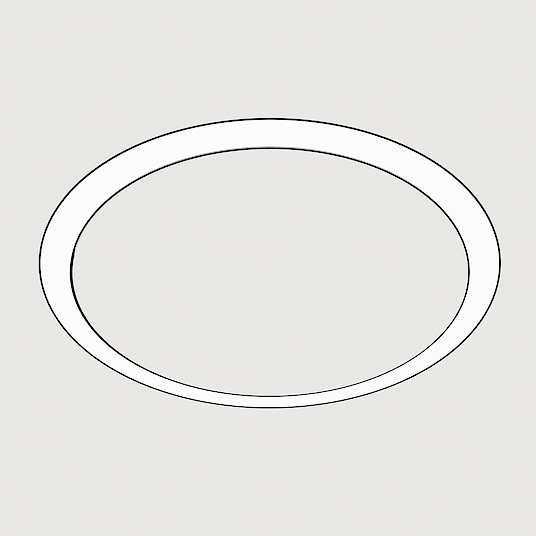

Recessed mounted LED luminaire for ceilings with cut-out openings
Direct only light distribution. Luminaire body with surrounding frame made of aluminium profile. Optic width 100mm. 13 different diameters from 600mm to 8000mm. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable set of pendant suspensions for mounting on raw concrete ceiling included.
Product adjustments
Snow White
Satin Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| RF1ASE-827M-D610 | Ringo Star-F1 | D=610mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 4563lm | 44W | |
| RF1ASE-827E-D610 | Ringo Star-F1 | D=610mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | 3600lm | 35W | |
| RF1OSE-827M-D610 | Ringo Star-F1 | D=610mm | Opal diffuser | Radiant Silver | 2700K | Switchable | 4899lm | 44W | |
| RF1OSE-827E-D610 | Ringo Star-F1 | D=610mm | Opal diffuser | Radiant Silver | 2700K | Switchable | 3871lm | 35W | |
| RF1ASL-827M-D610 | Ringo Star-F1 | D=610mm | Microprismatic screen | Radiant Silver | 2700K | Dimmable (DALI) | 4563lm | 44W | |
| RF1ASL-827E-D610 | Ringo Star-F1 | D=610mm | Microprismatic screen | Radiant Silver | 2700K | Dimmable (DALI) | 3600lm | 35W | |
| RF1OSL-827M-D610 | Ringo Star-F1 | D=610mm | Opal diffuser | Radiant Silver | 2700K | Dimmable (DALI) | 4899lm | 44W | |
| RF1OSL-827E-D610 | Ringo Star-F1 | D=610mm | Opal diffuser | Radiant Silver | 2700K | Dimmable (DALI) | 3871lm | 35W | |
| RF1AWE-827M-D610 | Ringo Star-F1 | D=610mm | Microprismatic screen | Snow White | 2700K | Switchable | 4563lm | 44W | |
| RF1AWE-827E-D610 | Ringo Star-F1 | D=610mm | Microprismatic screen | Snow White | 2700K | Switchable | 3600lm | 35W |
