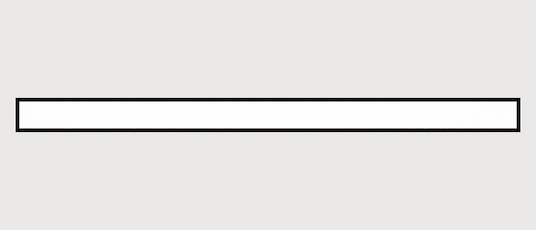

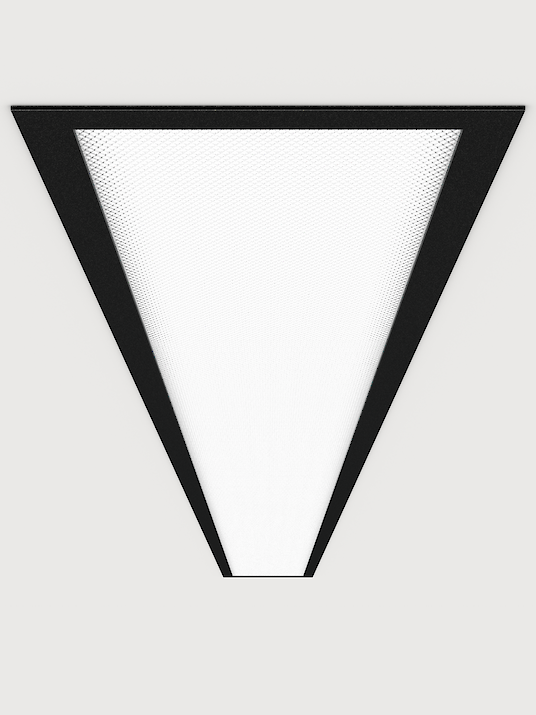

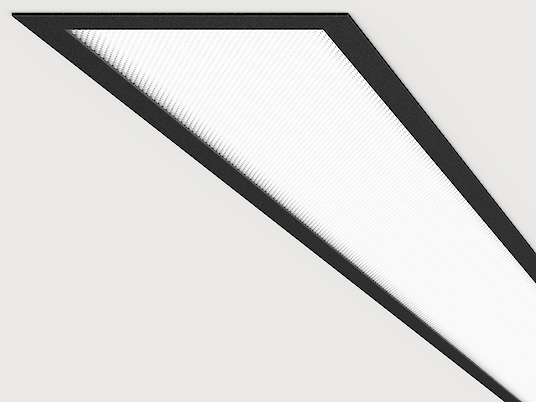

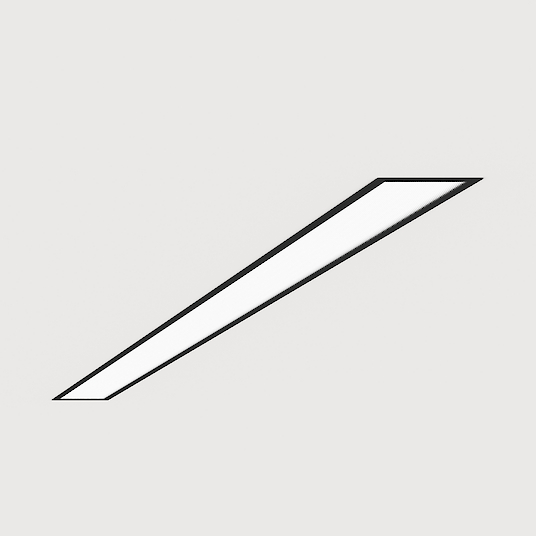

Recessed mounted LED luminaire for installation in ceiling cut-outs openings. Direct only light distribution. Light channel with surrounding frame made of aluminium profile. Optic width 81mm. Bepoke lengths possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen made of special acrylic glass and satin Louvre made of aluminum with optimized glare reduction especially for workplaces Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700K-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Mounting brackets included. Luminaire profile available in advance for mounting; other luminaire components can be mounted at different times. On request: Integration of emergency lighting components, sensor technology and many other options.
Product adjustments
90° Corner Opal/Microprismatic
Midpin-Downlight XD 770lm/10W/Ø40mm
Midpin Spotlight XM 770lm/10W/Ø40mm
Midpoint Spotlight XM 1000lm/19W-3000lm/31W Ø90mm
Multisensor
Snow White
Satin Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| LF5ABL-840E-Lxxxx | Matric-F5 | Special length L=xxxxmm | Microprismatic screen | Jet Black | 4000K | Dimmable (DALI) | 1710lm/m | 16W/m | ||
| LF5ABE-830M-Lxxxx | Matric-F5 | Special length L=xxxxmm | Microprismatic screen | Jet Black | 3000K | Switchable | 2197lm/m | 22W/m | ||
| LF5ABE-840E-Lxxxx | Matric-F5 | Special length L=xxxxmm | Microprismatic screen | Jet Black | 4000K | Switchable | 1710lm/m | 16W/m | ||
| LF5ABL-830E-Lxxxx | Matric-F5 | Special length L=xxxxmm | Microprismatic screen | Jet Black | 3000K | Dimmable (DALI) | 1599lm/m | 16W/m | ||
| LF5ABE-830E-Lxxxx | Matric-F5 | Special length L=xxxxmm | Microprismatic screen | Jet Black | 3000K | Switchable | 1599lm/m | 16W/m | ||
| LF5LWL-830E-L1020-B | Matric-F5 | L=1020mm | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Reflector: Jet Black | 2029lm | 16W | |
| LF5LWL-840E-L1020-B | Matric-F5 | L=1020mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Reflector: Jet Black | 2170lm | 16W | |
| LF5LWL-830H-L1020-B | Matric-F5 | L=1020mm | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Reflector: Jet Black | 5638lm | 43W | |
| LF5LWL-840H-L1020-B | Matric-F5 | L=1020mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Reflector: Jet Black | 6030lm | 43W | |
| LF5LWE-830E-L1020-G | Matric-F5 | L=1020mm | Lens Louvre | Snow White | 3000K | Switchable | Reflector: Satin Gold | 2029lm | 16W |
