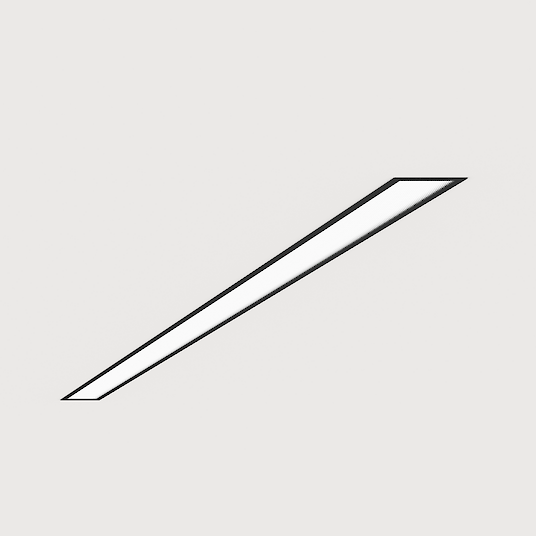

Recessed mounted LED luminaire for installation in ceiling cut-outs openings

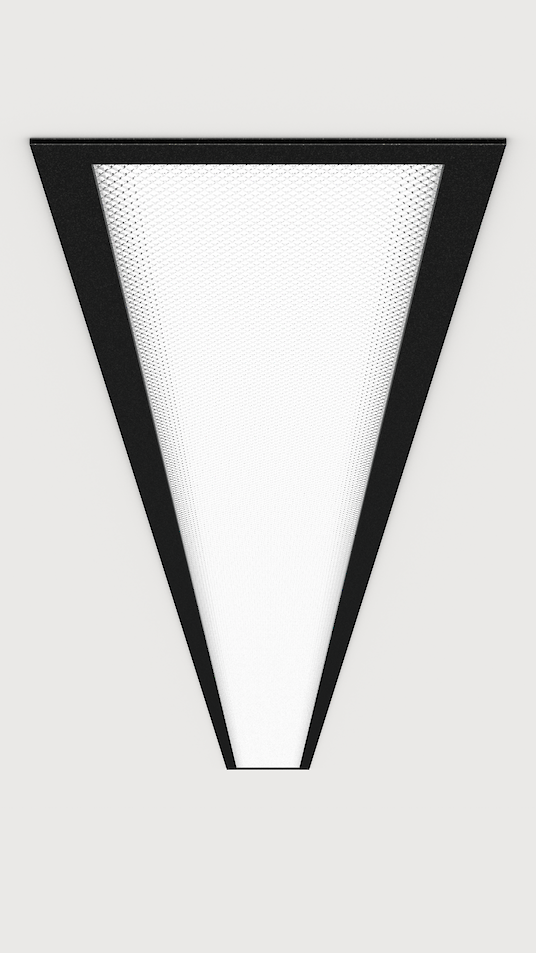

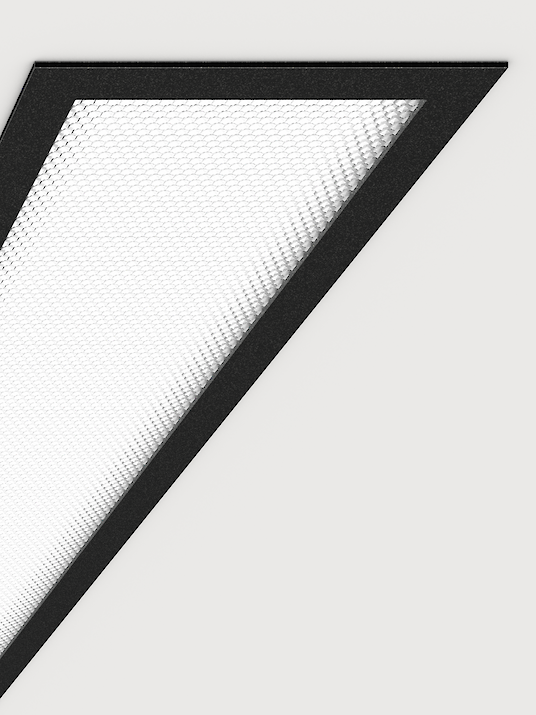

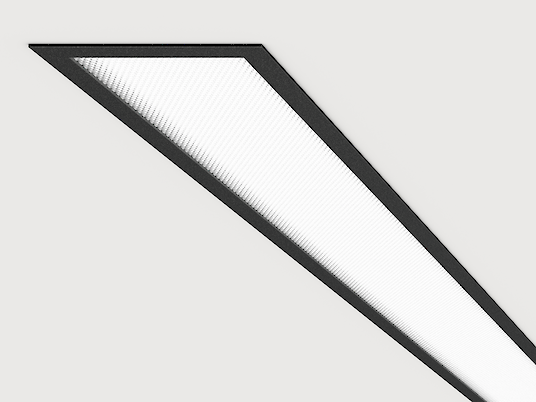

Direct only light distribution. Light channel with surrounding frame made of aluminium profile. Optic width 55mm. Bespoke lengths possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Mounting brackets included. Luminaire profile available in advance for mounting; other luminaire components can be mounted at different times. On request: Integration of emergency lighting components, sensor technology.
Product adjustments
90° Corner Opal/Microprismatic
Midpin-Downlight XD 310lm/5W/Ø21mm
Midpin Spotlight XM 770lm/10W/Ø40mm
3-Phase Track
Multisensor
Snow White
Satin Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| LF3ABE-830M-Lxxxx | Matric-F3 | Special length L=xxxxmm | Microprismatic screen | Jet Black | 3000K | Switchable | 1758lm/m | 17W/m | |
| LF3OBE-840H-Lxxxx | Matric-F3 | Special length L=xxxxmm | Opal diffuser | Jet Black | 4000K | Switchable | 3050lm/m | 25W/m | |
| LF3OBL-830H-Lxxxx | Matric-F3 | Special length L=xxxxmm | Opal diffuser | Jet Black | 3000K | Dimmable (DALI) | 2852lm/m | 25W/m | |
| LF3AEE-830E-L1198 | Matric-F3 | L=1198mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 1533lm | 16W | |
| LF3AEE-830E-L1490 | Matric-F3 | L=1490mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 1917lm | 19W | |
| LF3AEE-830E-L1780 | Matric-F3 | L=1780mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 2291lm | 22W | |
| LF3AEE-830E-L615 | Matric-F3 | L=615mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 767lm | 9W | |
| LF3AEE-830E-L905 | Matric-F3 | L=905mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 1150lm | 12W | |
| LF3AEE-830H-L1198 | Matric-F3 | L=1198mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 2927lm | 31W | |
| LF3AEE-830H-L1490 | Matric-F3 | L=1490mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 3665lm | 37W |
