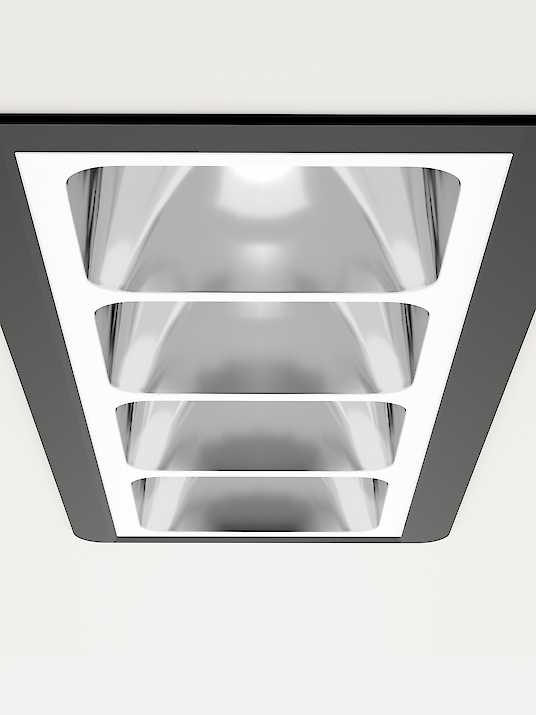

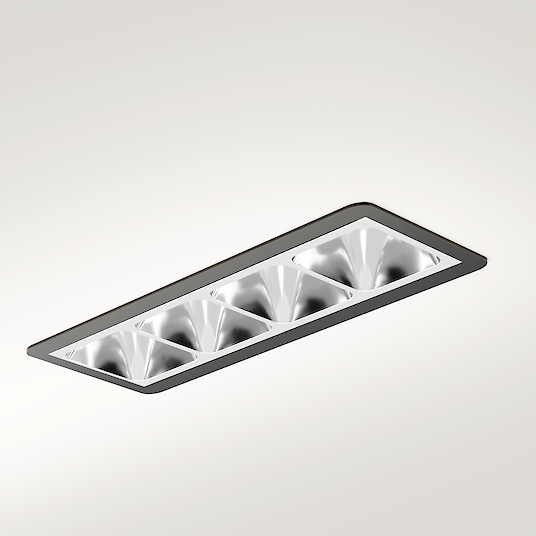

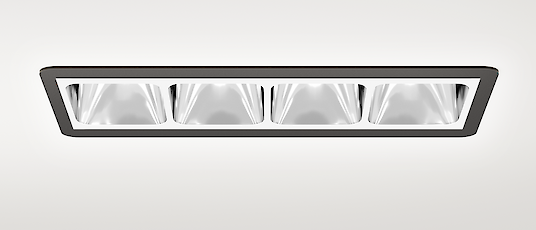

Recessed mounted LED luminaire for ceilings with cut-out openings. Direct only light distribution. Luminaire body with smooth bends made of aluminium, complete frame crafted in one piece with no visible seams. Surface white, silver, graphite, black or champagne coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19). Louvre available in various surfaces. Separate driver included, optionally switchable or dimmable (DALI). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum.
![](/site/assets/files/5427/liquid-line-compact-f5-recessed-frame-0001.0x556.png)
![](/site/assets/files/5427/liquid-line-compact-f5-recessed-frame-0002.0x556.png)
![](/site/assets/files/5427/liquid-line-compact-f5-recessed-frame-0003.0x556.png)
Product adjustments
![](/site/assets/files/6279/liquid-line-compact-f5-recessed-frame-white.92x92.jpg)
Snow White | Snow White
![](/site/assets/files/6280/liquid-line-compact-f5-recessed-frame-white-silver.92x92.jpg)
Snow White | Satin Silver
![](/site/assets/files/6281/liquid-line-compact-f5-recessed-frame-white-black.92x92.jpg)
Snow White | Jet Black
![](/site/assets/files/6282/liquid-line-compact-f5-recessed-frame-white-gold.92x92.jpg)
Snow White | Satin Gold
![](/site/assets/files/6283/liquid-line-compact-f5-recessed-frame-white-champagne.92x92.jpg)
Snow White | Anodic Champagne
![](/site/assets/files/6284/liquid-line-compact-f5-recessed-frame-white-copper.92x92.jpg)
Snow White | Satin Copper
![](/site/assets/files/6285/liquid-line-compact-f5-recessed-frame-black-white.92x92.jpg)
Jet Black | Snow White
![](/site/assets/files/6286/liquid-line-compact-f5-recessed-frame-silver.92x92.jpg)
Satin Silver | Satin Silver
![](/site/assets/files/6287/liquid-line-compact-f5-recessed-frame-black.92x92.jpg)
Jet Black | Jet Black
![](/site/assets/files/6288/liquid-line-compact-f5-recessed-frame-black-gold.92x92.jpg)
Jet Black | Satin Gold
![](/site/assets/files/6289/liquid-line-compact-f5-recessed-frame-champagne.92x92.jpg)
Anodic Champagne | Anodic Champagne
![](/site/assets/files/6290/liquid-line-compact-f5-recessed-frame-copper.92x92.jpg)
Satin Copper | Satin Copper
Configuration and data download
Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Luminous Flux | Power consumption |
---|---|---|---|---|---|---|---|---|---|---|
QF5LWE-830H-L149-W | Liquid Line-F5 | L=149mm | Lens Louvre | Snow White | 3000K | Switchable | Reflector: Snow White | 767lm | 9W | |
QF5LWE-830H-L149-B | Liquid Line-F5 | L=149mm | Lens Louvre | Snow White | 3000K | Switchable | Reflector: Jet Black | 767lm | 9W | |
QF5LWE-830H-L149-G | Liquid Line-F5 | L=149mm | Lens Louvre | Snow White | 3000K | Switchable | Reflector: Satin Gold | 767lm | 9W | |
QF5LBE-830H-L149-B | Liquid Line-F5 | L=149mm | Lens Louvre | Jet Black | 3000K | Switchable | Reflector: Jet Black | 767lm | 9W | |
QF5LBE-830H-L149-G | Liquid Line-F5 | L=149mm | Lens Louvre | Jet Black | 3000K | Switchable | Reflector: Satin Gold | 767lm | 9W | |
QF5LWE-840H-L149-W | Liquid Line-F5 | L=149mm | Lens Louvre | Snow White | 4000K | Switchable | Reflector: Snow White | 820lm | 9W | |
QF5LWE-840H-L149-B | Liquid Line-F5 | L=149mm | Lens Louvre | Snow White | 4000K | Switchable | Reflector: Jet Black | 820lm | 9W | |
QF5LWE-840H-L149-G | Liquid Line-F5 | L=149mm | Lens Louvre | Snow White | 4000K | Switchable | Reflector: Satin Gold | 820lm | 9W | |
QF5LBE-840H-L149-B | Liquid Line-F5 | L=149mm | Lens Louvre | Jet Black | 4000K | Switchable | Reflector: Jet Black | 820lm | 9W | |
QF5LBE-840H-L149-G | Liquid Line-F5 | L=149mm | Lens Louvre | Jet Black | 4000K | Switchable | Reflector: Satin Gold | 820lm | 9W |
