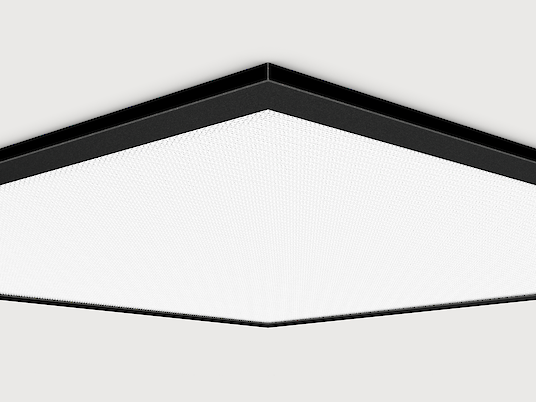

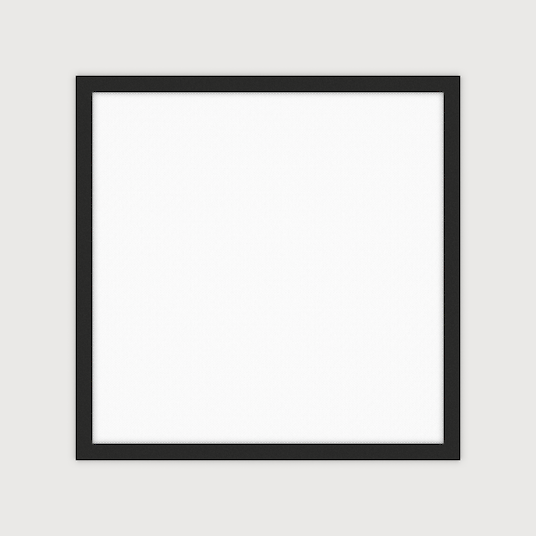

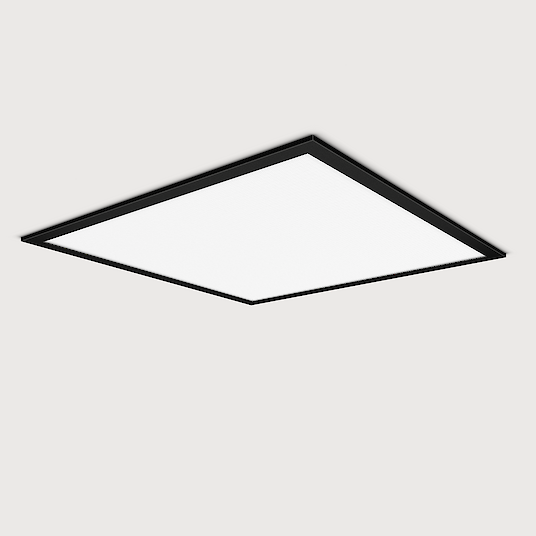

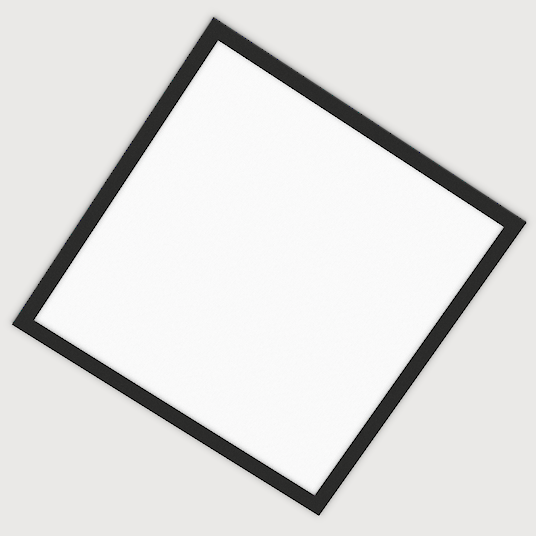

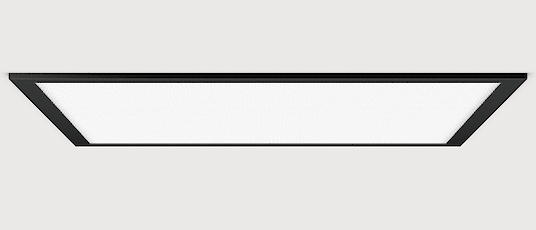

Recessed mounted LED luminaire for cut-out ceilings

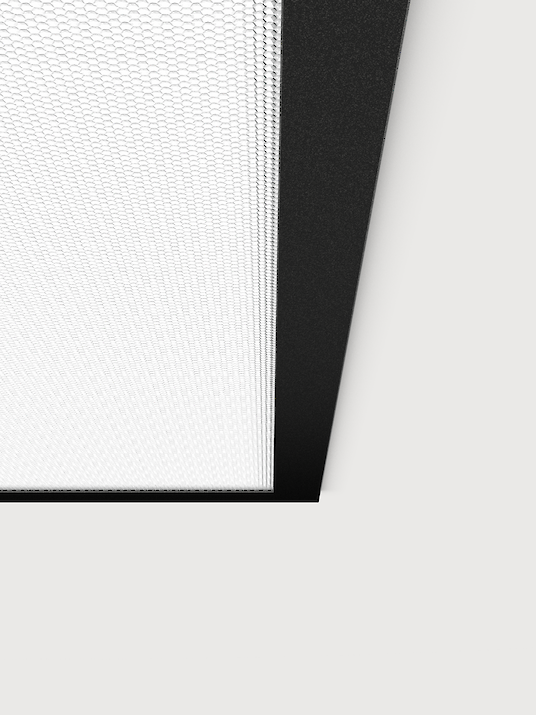

Direct only light distribution. Luminaire body with surrounding frame made of aluminium. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Mounting brackets for assembly included. Vertical Installation not possible. On request: Integration of emergency lighting components, sensor technology.
Product adjustments
Snow White
Silver Anodised
Urban Graphite
Jet Black
Anodic Champagne
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| CM4AEE-830H-Q379 | Cubic-M4 | L=379mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 1814lm | 18W | |
| CM4AEE-830H-Q479 | Cubic-M4 | L=479mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 2927lm | 27W | |
| CM4AEE-830H-Q621 | Cubic-M4 | L=621mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 6480lm | 58W | |
| CM4AEE-830H-Q910 | Cubic-M4 | L=910mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 12005lm | 129W | |
| CM4AEE-830M-Q379 | Cubic-M4 | L=379mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 1225lm | 12W | |
| CM4AEE-830M-Q479 | Cubic-M4 | L=479mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 2010lm | 19W | |
| CM4AEE-830M-Q621 | Cubic-M4 | L=621mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 4413lm | 38W | |
| CM4AEE-830M-Q910 | Cubic-M4 | L=910mm | Microprismatic screen | Silver Anodised | 3000K | Switchable | 7265lm | 67W | |
| CM4AEE-840H-Q379 | Cubic-M4 | L=379mm | Microprismatic screen | Silver Anodised | 4000K | Switchable | 1940lm | 18W | |
| CM4AEE-840H-Q479 | Cubic-M4 | L=479mm | Microprismatic screen | Silver Anodised | 4000K | Switchable | 3130lm | 27W |
