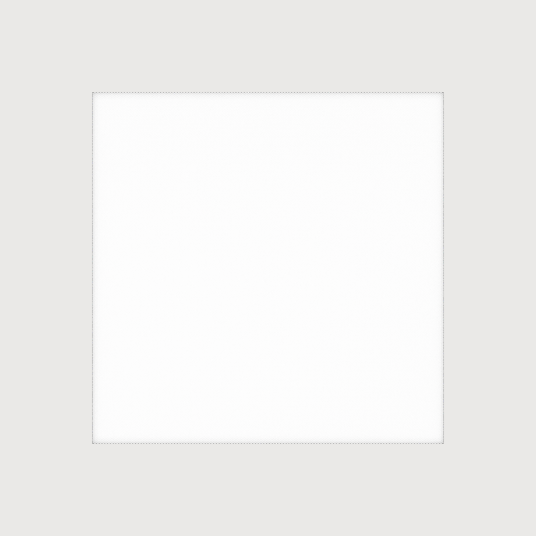

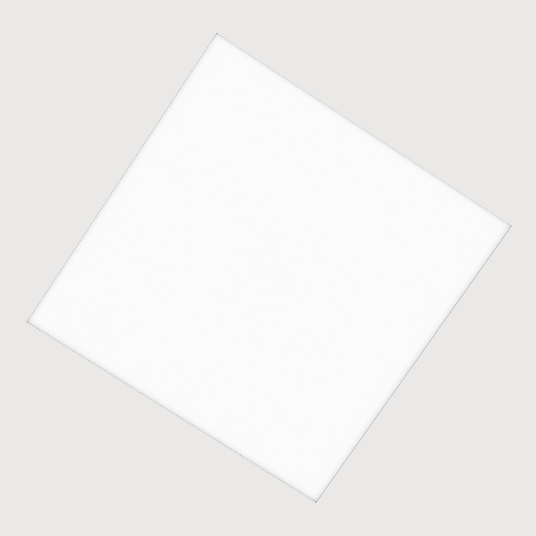

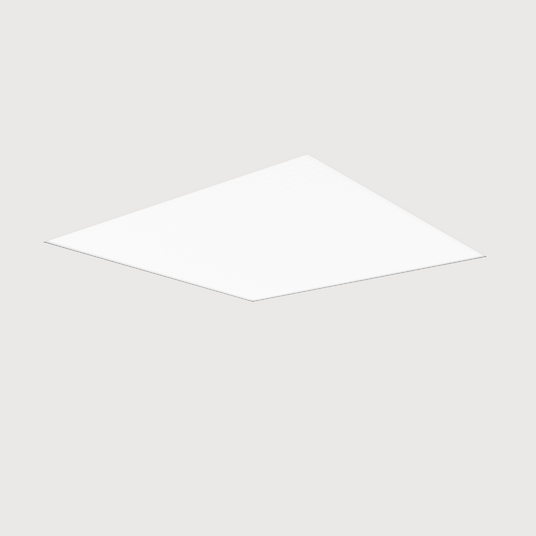

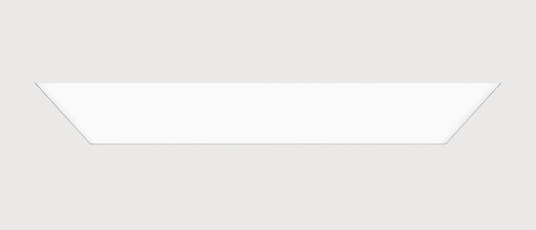

Recessed mounted LED luminaire for frameless installation in plasterboard ceilings

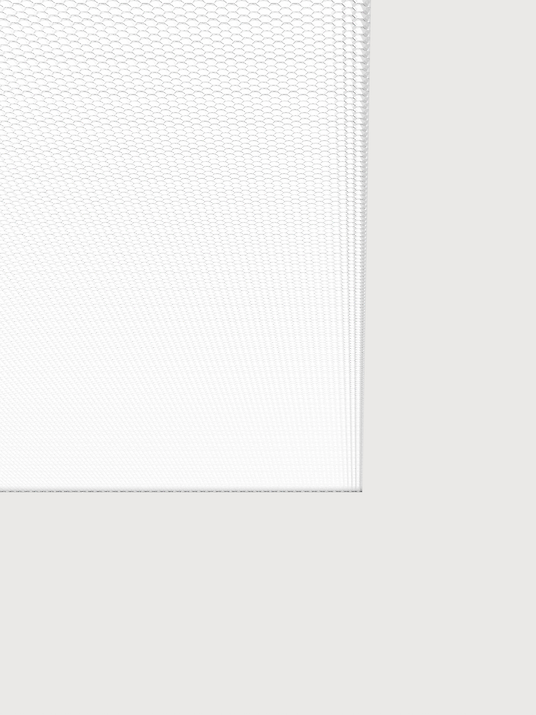

Direct only light distribution. Luminaire body made of aluminium. Surface white powder coated. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Mounting brackets for assembly included. On request: Integration of emergency lighting components.
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| CM2AWE-830H-Q340 | Cubic-M2 | L=340mm | Microprismatic screen | Snow White | 3000K | Switchable | 1851lm | 18W | |
| CM2AWE-830H-Q420 | Cubic-M2 | L=420mm | Microprismatic screen | Snow White | 3000K | Switchable | 2992lm | 27W | |
| CM2AWE-830H-Q612 | Cubic-M2 | L=612mm | Microprismatic screen | Snow White | 3000K | Switchable | 7424lm | 65W | |
| CM2AWE-830M-Q340 | Cubic-M2 | L=340mm | Microprismatic screen | Snow White | 3000K | Switchable | 1253lm | 12W | |
| CM2AWE-830M-Q420 | Cubic-M2 | L=420mm | Microprismatic screen | Snow White | 3000K | Switchable | 2057lm | 19W | |
| CM2AWE-830M-Q612 | Cubic-M2 | L=612mm | Microprismatic screen | Snow White | 3000K | Switchable | 4684lm | 40W | |
| CM2AWE-840H-Q340 | Cubic-M2 | L=340mm | Microprismatic screen | Snow White | 4000K | Switchable | 1980lm | 18W | |
| CM2AWE-840H-Q420 | Cubic-M2 | L=420mm | Microprismatic screen | Snow White | 4000K | Switchable | 3200lm | 27W | |
| CM2AWE-840H-Q612 | Cubic-M2 | L=612mm | Microprismatic screen | Snow White | 4000K | Switchable | 7940lm | 65W | |
| CM2AWE-840M-Q340 | Cubic-M2 | L=340mm | Microprismatic screen | Snow White | 4000K | Switchable | 1340lm | 12W |
