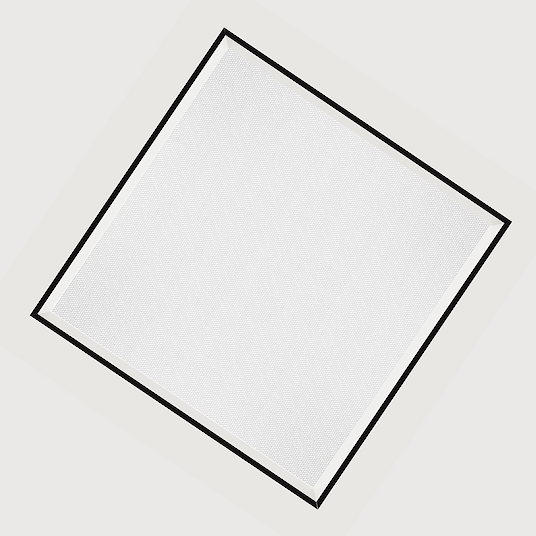

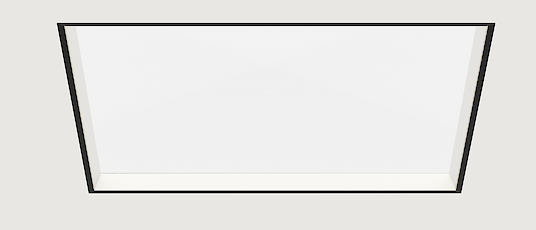

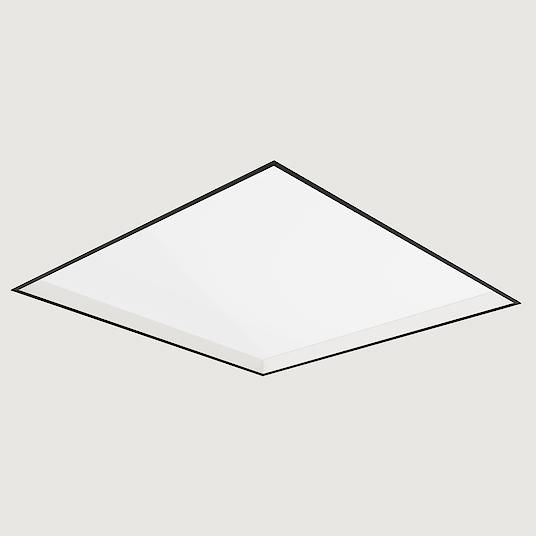

Recessed mounted LED luminaire for ceilings with cut-out openings

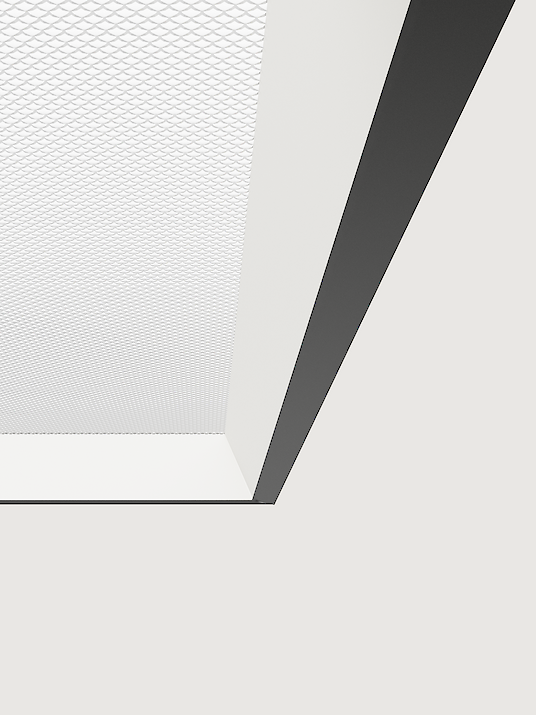

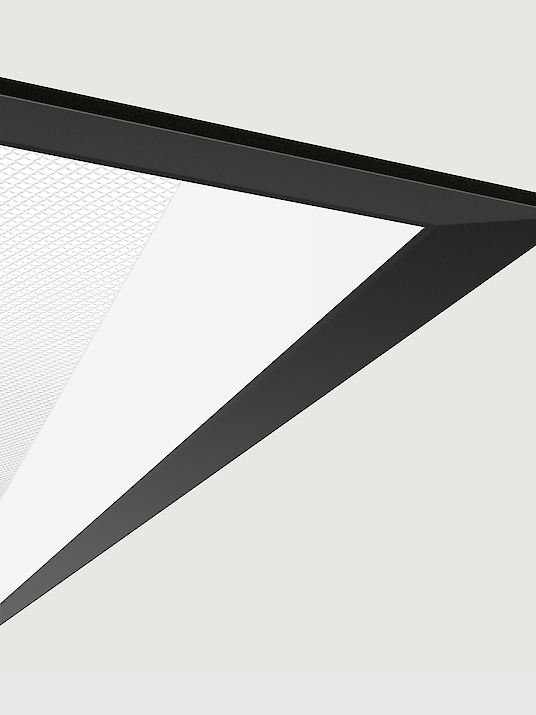

Direct only light distribution. Luminaire body with surrounding frame made of aluminium profile. Outer frame and decorative trim available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For surface options and combinations check Lightnet-Surface-Collection or Bi-Colour Selection. Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Mounting brackets for assembly included. Vertical Installation not possible. On request: Integration of emergency lighting components, sensor technology.
Product adjustments
Snow White | Snow White
Snow White | Radiant Silver
Snow White | Urban Graphite
Snow White | Jet Black
Snow White | Anodic Champagne
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| CL3AWE-830M-Q550-G | Cubic-L3 | L=550mm | Microprismatic screen | Snow White | 3000K | Switchable | Reflector: Satin Gold | 3394lm | 27W | |
| CL3ASE-830M-Q550-S | Cubic-L3 | L=550mm | Microprismatic screen | Radiant Silver | 3000K | Switchable | Reflector: Radiant Silver | 3394lm | 27W | |
| CL3ABE-830M-Q550-G | Cubic-L3 | L=550mm | Microprismatic screen | Jet Black | 3000K | Switchable | Reflector: Satin Gold | 3394lm | 27W | |
| CL3AWE-840M-Q550-G | Cubic-L3 | L=550mm | Microprismatic screen | Snow White | 4000K | Switchable | Reflector: Satin Gold | 3630lm | 27W | |
| CL3ASE-840M-Q550-S | Cubic-L3 | L=550mm | Microprismatic screen | Radiant Silver | 4000K | Switchable | Reflector: Radiant Silver | 3630lm | 27W | |
| CL3ABE-840M-Q550-G | Cubic-L3 | L=550mm | Microprismatic screen | Jet Black | 4000K | Switchable | Reflector: Satin Gold | 3630lm | 27W | |
| CL3AWL-830M-Q550-G | Cubic-L3 | L=550mm | Microprismatic screen | Snow White | 3000K | Dimmable (DALI) | Reflector: Satin Gold | 3394lm | 27W | |
| CL3ASL-830M-Q550-S | Cubic-L3 | L=550mm | Microprismatic screen | Radiant Silver | 3000K | Dimmable (DALI) | Reflector: Radiant Silver | 3394lm | 27W | |
| CL3ABL-830M-Q550-G | Cubic-L3 | L=550mm | Microprismatic screen | Jet Black | 3000K | Dimmable (DALI) | Reflector: Satin Gold | 3394lm | 27W | |
| CL3AWL-840M-Q550-G | Cubic-L3 | L=550mm | Microprismatic screen | Snow White | 4000K | Dimmable (DALI) | Reflector: Satin Gold | 3630lm | 27W |
