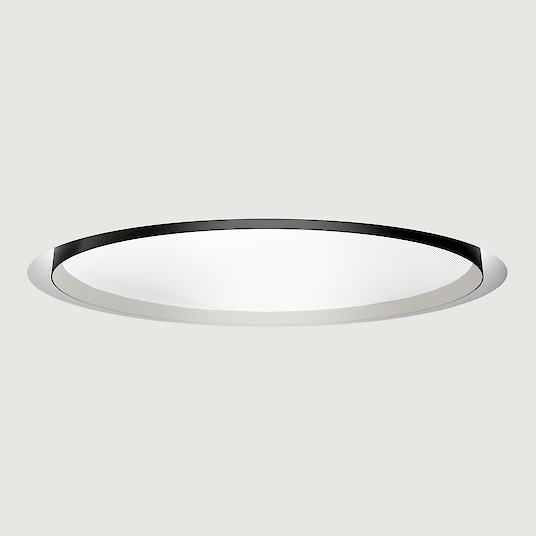

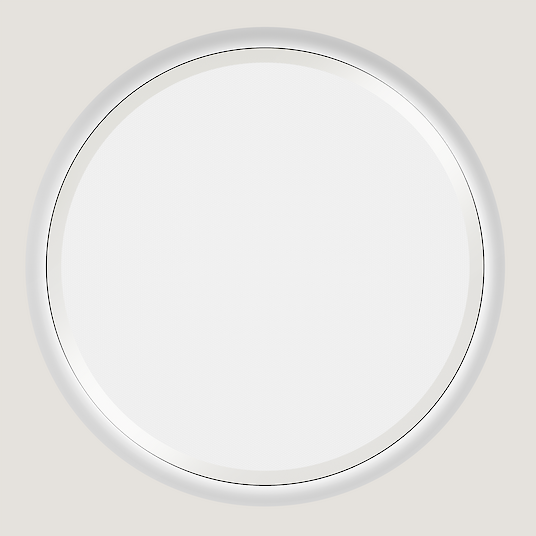

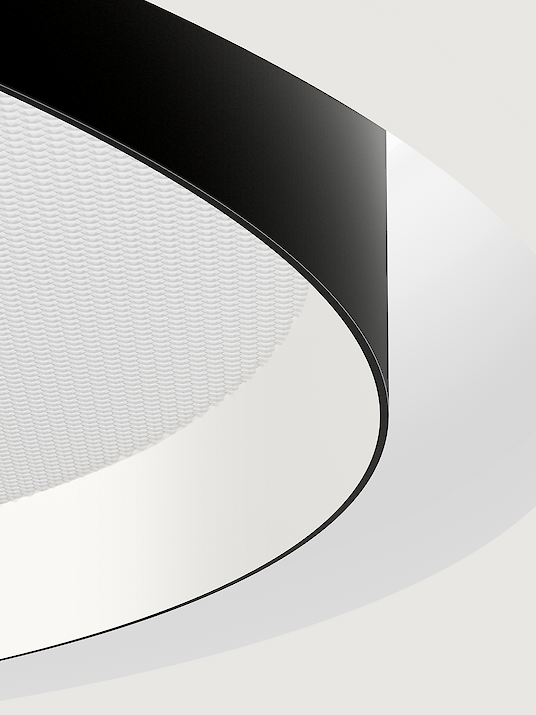

Recessed mounted LED luminaire for frameless installation in plasterboard ceilings. Direct and indirect light distribution. Luminaire body made of a luminium. 4 different diameters from 300 to 600mm. Outer housing and inner decor available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Indirect lighting corona optionally in colour temperature of luminaire or alternatively in different colours: red, green, blue or magenta. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Mounting brackets for assembly included. On request: Integration of emergency lighting components.
Product adjustments
Snow White | Snow White
Radiant Silver | Radiant Silver
Urban Graphite | Urban Graphite
Jet Black | Jet Black
Anodic Champagne | Anodic Champagne
Satin Copper | Satin Copper
Snow White | Satin Copper
Snow White | Satin Gold
Snow White | Jet Black
Anodic Champagne | Jet Black
Jet Black | Satin Gold
Jet Black | Snow White
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Reflector Colour Inside | Aura colour | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BN3OWL-840M-D400-WW | Basic-N3 | D=400mm | Opal diffuser | Snow White | 4000K | Dimmable (DALI) | Reflector: Snow White | Aura white | 1830lm | 24W | |
| BN3OWL-840M-D400-BW | Basic-N3 | D=400mm | Opal diffuser | Snow White | 4000K | Dimmable (DALI) | Reflector: Jet Black | Aura white | 1830lm | 24W | |
| BN3OWL-840M-D400-GW | Basic-N3 | D=400mm | Opal diffuser | Snow White | 4000K | Dimmable (DALI) | Reflector: Satin Gold | Aura white | 1830lm | 24W | |
| BN3OSL-840M-D400-SW | Basic-N3 | D=400mm | Opal diffuser | Radiant Silver | 4000K | Dimmable (DALI) | Reflector: Radiant Silver | Aura white | 1830lm | 24W | |
| BN3OBL-840M-D400-BW | Basic-N3 | D=400mm | Opal diffuser | Jet Black | 4000K | Dimmable (DALI) | Reflector: Jet Black | Aura white | 1830lm | 24W | |
| BN3OBL-840M-D400-GW | Basic-N3 | D=400mm | Opal diffuser | Jet Black | 4000K | Dimmable (DALI) | Reflector: Satin Gold | Aura white | 1830lm | 24W | |
| BN3OWL-827M-D400-WW | Basic-N3 | D=400mm | Opal diffuser | Snow White | 2700K | Dimmable (DALI) | Reflector: Snow White | Aura white | 1711lm | 24W | |
| BN3OWL-827M-D400-BW | Basic-N3 | D=400mm | Opal diffuser | Snow White | 2700K | Dimmable (DALI) | Reflector: Jet Black | Aura white | 1711lm | 24W | |
| BN3OWL-827M-D400-GW | Basic-N3 | D=400mm | Opal diffuser | Snow White | 2700K | Dimmable (DALI) | Reflector: Satin Gold | Aura white | 1711lm | 24W | |
| BN3OSL-827M-D400-SW | Basic-N3 | D=400mm | Opal diffuser | Radiant Silver | 2700K | Dimmable (DALI) | Reflector: Radiant Silver | Aura white | 1711lm | 24W |
