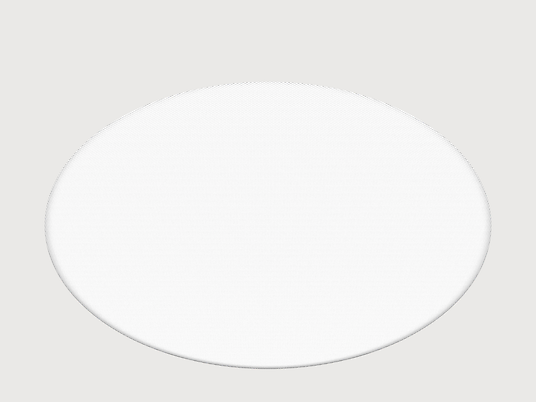

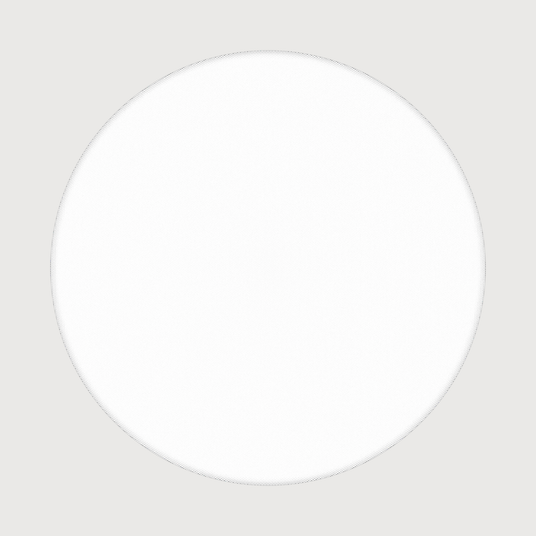

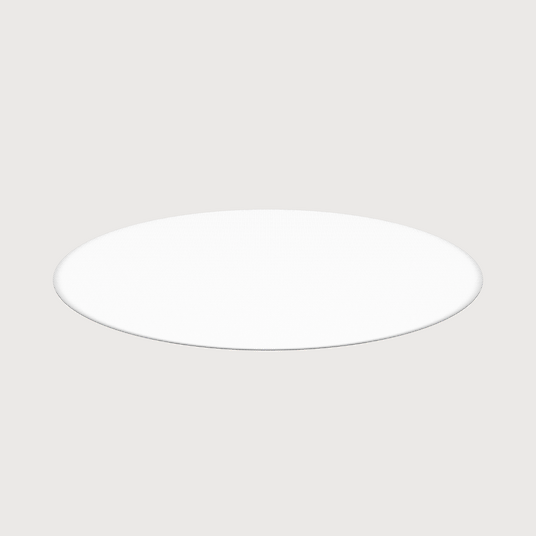

Basic Max M2 | Recessed Frameless

Recessed mounted LED luminaire for frameless installation in plasterboard ceilings

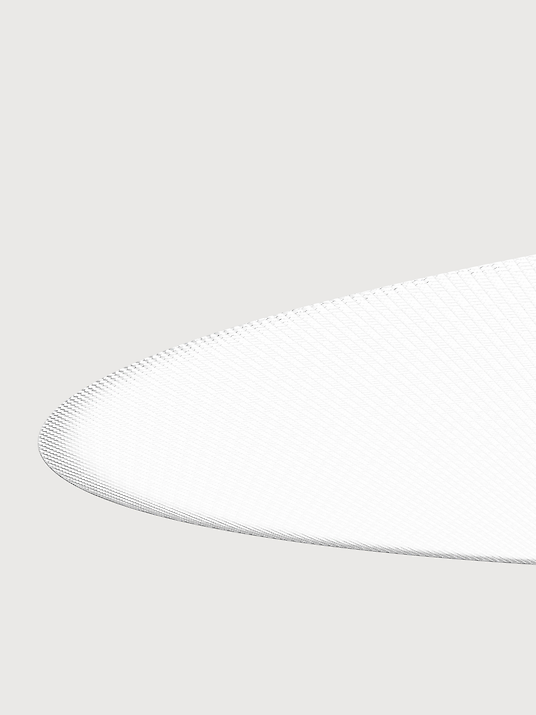

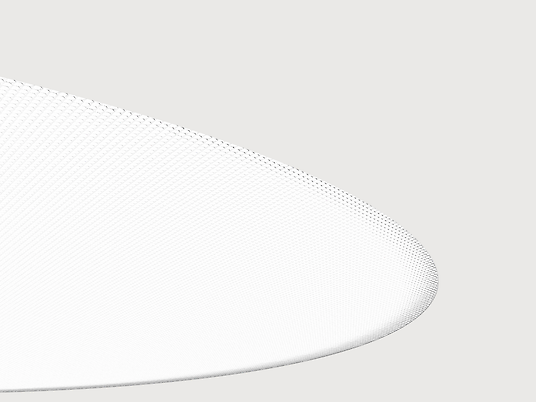

Direct only light distribution. Luminaire body made of aluminium. 5 different diameters from 300 to 950mm. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Mounting brackets for assembly included. Mounting template for correct installation is recommended (see accessories, to be ordered eparately). Vertical Installation not possible. On request: Integration of emergency lighting components, sensor technology.

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Apply
Filter
Downloads Article code Productname Length L/Diameter D (mm) Optical system Surface finish Colour temperature Control Luminous Flux Power consumption
BM2AWE-830M-D300 Basic-M2 D=300mm Microprismatic screen Snow White 3000K Switchable 1618lm 13W
BM2AWE-830M-D400 Basic-M2 D=400mm Microprismatic screen Snow White 3000K Switchable 3347lm 25W
BM2AWE-830M-D500 Basic-M2 D=500mm Microprismatic screen Snow White 3000K Switchable 4544lm 33W
BM2AWE-830M-D650 Basic-M2 D=650mm Microprismatic screen Snow White 3000K Switchable 6779lm 50W
BM2AWE-840M-D300 Basic-M2 D=300mm Microprismatic screen Snow White 4000K Switchable 1730lm 13W
BM2AWE-840M-D400 Basic-M2 D=400mm Microprismatic screen Snow White 4000K Switchable 3580lm 25W
BM2AWE-840M-D500 Basic-M2 D=500mm Microprismatic screen Snow White 4000K Switchable 4860lm 33W
BM2AWE-840M-D650 Basic-M2 D=650mm Microprismatic screen Snow White 4000K Switchable 7250lm 50W
BM2AWL-830M-D300 Basic-M2 D=300mm Microprismatic screen Snow White 3000K Dimmable (DALI) 1618lm 13W
BM2AWL-830M-D400 Basic-M2 D=400mm Microprismatic screen Snow White 3000K Dimmable (DALI) 3347lm 25W
