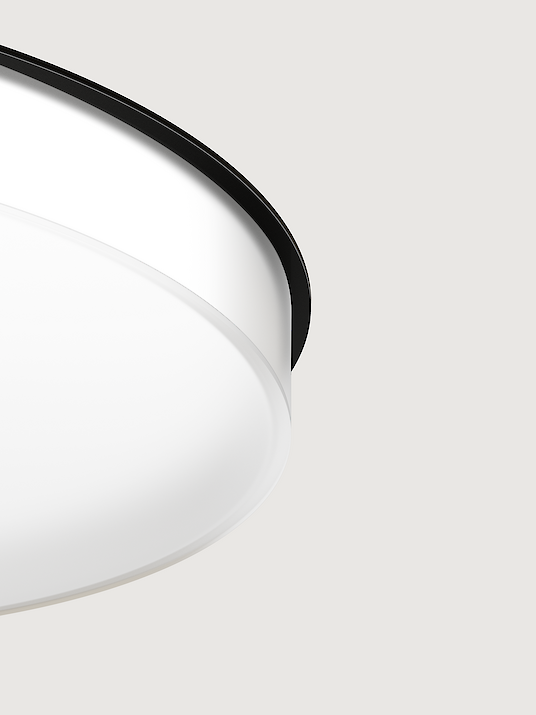

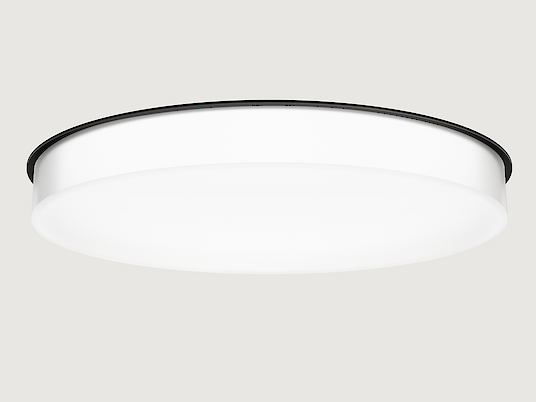

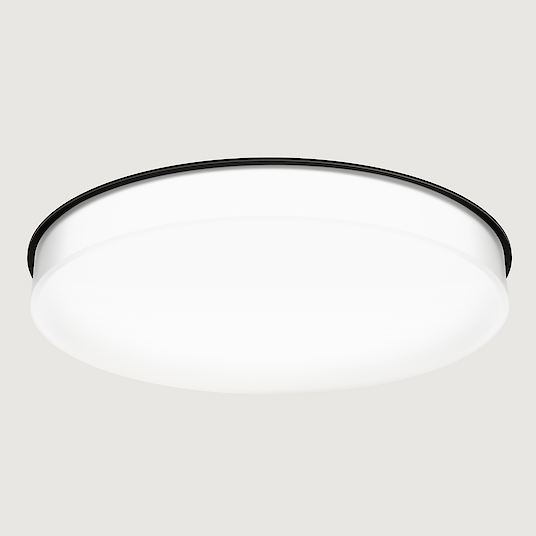

Semi Recessed LED luminaire for ceilings with cut-out openings. Omnidirectional light distribution for soft wall or ceiling illumination. 4 different diameters from 320 to 630mm. Luminaire body with surrounding frame made of aluminium optionally white or graphite coated. Luminaire body made of cast acrylic glass. Available with microprismatic screen with optimized glare reduction especially for workplaces or satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Mounting brackets for assembly included. On request: Integration of emergency lighting components.
Product adjustments
Snow White
Radiant Silver
Urban Graphite
Jet Black
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|
| BL9AWE-830M-D325 | Basic-L9 | D=325mm | Microprismatic screen | Snow White | 3000K | Switchable | 589lm | 5W | |
| BL9ASE-830M-D325 | Basic-L9 | D=325mm | Microprismatic screen | Radiant Silver | 3000K | Switchable | 589lm | 5W | |
| BL9ABE-830M-D325 | Basic-L9 | D=325mm | Microprismatic screen | Jet Black | 3000K | Switchable | 589lm | 5W | |
| BL9AWE-840M-D325 | Basic-L9 | D=325mm | Microprismatic screen | Snow White | 4000K | Switchable | 630lm | 5W | |
| BL9ASE-840M-D325 | Basic-L9 | D=325mm | Microprismatic screen | Radiant Silver | 4000K | Switchable | 630lm | 5W | |
| BL9ABE-840M-D325 | Basic-L9 | D=325mm | Microprismatic screen | Jet Black | 4000K | Switchable | 630lm | 5W | |
| BL9AWL-830M-D325 | Basic-L9 | D=325mm | Microprismatic screen | Snow White | 3000K | Dimmable (DALI) | 589lm | 5W | |
| BL9ASL-830M-D325 | Basic-L9 | D=325mm | Microprismatic screen | Radiant Silver | 3000K | Dimmable (DALI) | 589lm | 5W | |
| BL9ABL-830M-D325 | Basic-L9 | D=325mm | Microprismatic screen | Jet Black | 3000K | Dimmable (DALI) | 589lm | 5W | |
| BL9AWL-840M-D325 | Basic-L9 | D=325mm | Microprismatic screen | Snow White | 4000K | Dimmable (DALI) | 630lm | 5W |
