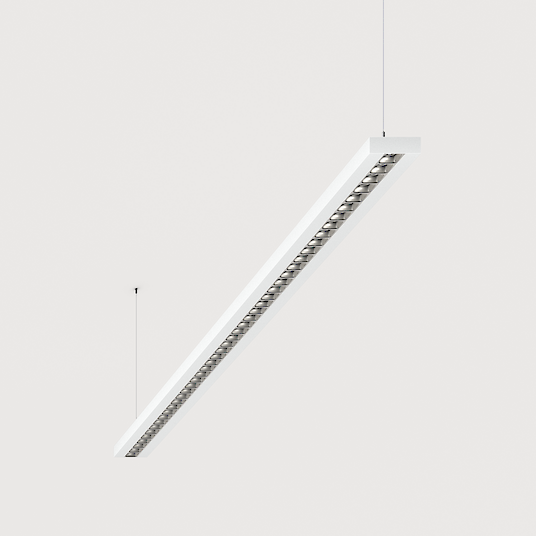

LED pendant luminaire

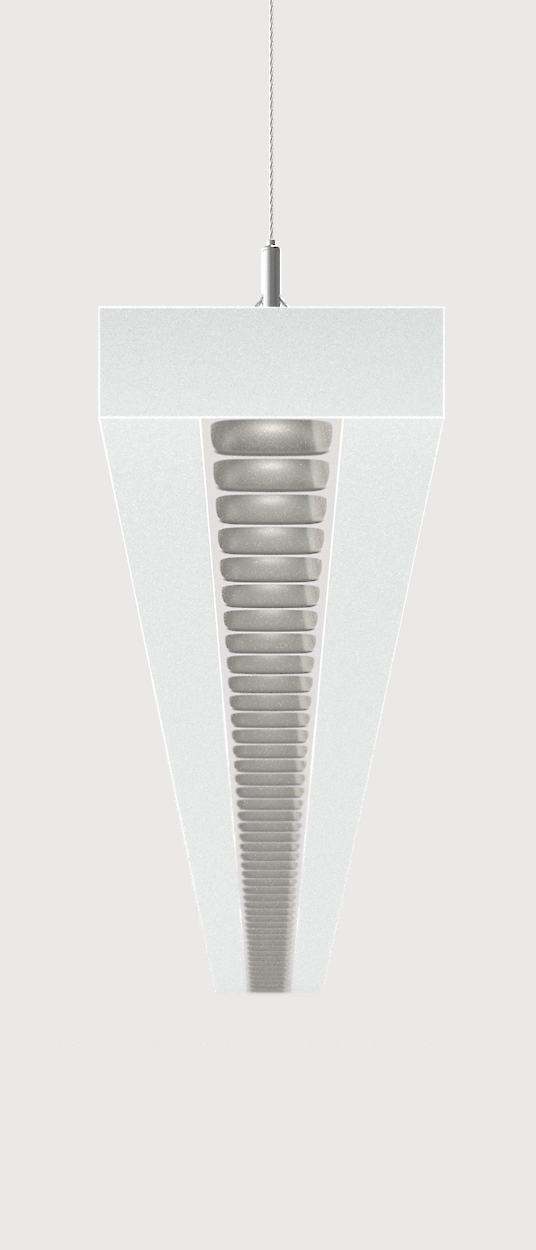

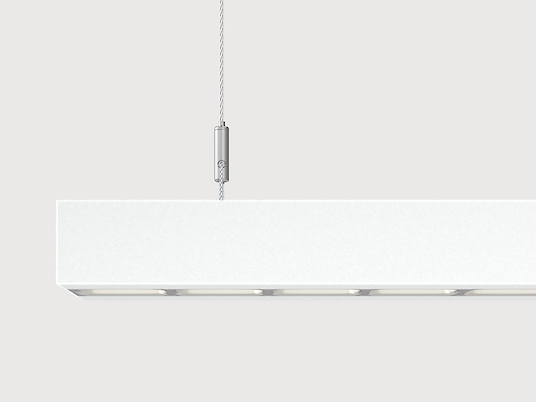

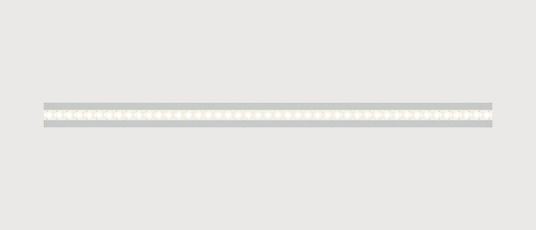

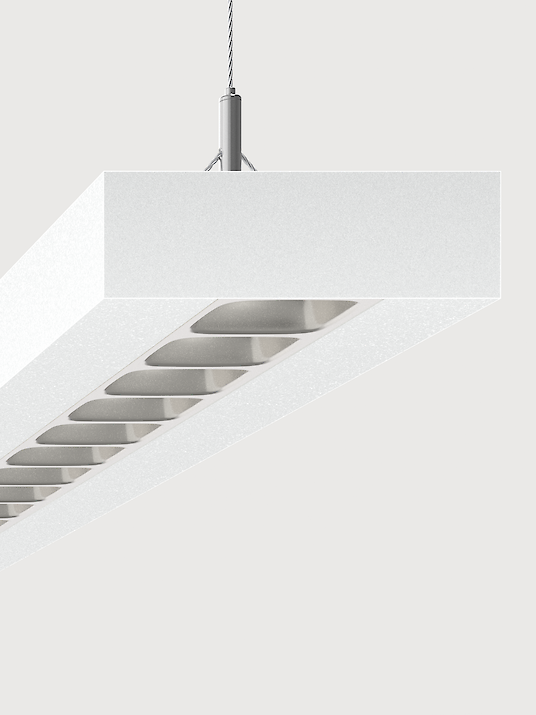

Direct-indirect or direct-only light distribution. Luminaire body made of aluminium profile with 125mm profile width and 40mm overall height. Precise length production according to specifications possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct part using precision lenses with louvre for wide rotationally symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various color finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning initial ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable Y- or parallel cord suspension with transparent power supply cable. Colours ceiling rose match to luminaire body. On request: Integration of tracks, emergency light & sensor technology.
Product adjustments
Snow White | Satin Silver
Silver Anodised | Satin Silver
Urban Graphite | Satin Silver
Jet Black | Satin Silver
Anodic Champagne | Satin Silver
Jet Black | Satin Gold
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VP4JWE-830M-Lxxxx-Y | Vision-P4 | Special length L=xxxxmm | Wall-Washer | Snow White | 3000K | Switchable | Y-susp. (Set) | 3918lm/m | 34W/m | ||
| VP4JEE-830M-Lxxxx-Y | Vision-P4 | Special length L=xxxxmm | Wall-Washer | Silver Anodised | 3000K | Switchable | Y-susp. (Set) | 3918lm/m | 34W/m | ||
| VP4JBE-830M-Lxxxx-Y | Vision-P4 | Special length L=xxxxmm | Wall-Washer | Jet Black | 3000K | Switchable | Y-susp. (Set) | 3918lm/m | 34W/m | ||
| VP4JWE-840M-Lxxxx-Y | Vision-P4 | Special length L=xxxxmm | Wall-Washer | Snow White | 4000K | Switchable | Y-susp. (Set) | 4190lm/m | 34W/m | ||
| VP4JEE-840M-Lxxxx-Y | Vision-P4 | Special length L=xxxxmm | Wall-Washer | Silver Anodised | 4000K | Switchable | Y-susp. (Set) | 4190lm/m | 34W/m | ||
| VP4AEL-840H-Lxxxx-K | Vision-P4 | Special length L=xxxxmm | Microprismatic screen | Silver Anodised | 4000K | Dimmable (DALI) | Parallel susp. (Set) | 6100lm/m | 49W/m | ||
| VP4ABL-840H-Lxxxx-K | Vision-P4 | Special length L=xxxxmm | Microprismatic screen | Jet Black | 4000K | Dimmable (DALI) | Parallel susp. (Set) | 6100lm/m | 49W/m | ||
| VP4DBL-830M-Lxxxx-Y | Vision-P4 | Special length L=xxxxmm | Trucircle Polycarbonate Diffuser | Jet Black | 3000K | Dimmable (DALI) | Y-susp. (Set) | 3905lm/m | 34W/m | ||
| VP4LBE-840M-Lxxxx-KG | Vision-P4 | Special length L=xxxxmm | Lens Louvre | Jet Black | 4000K | Switchable | Parallel susp. (Set) | Reflector: Satin Gold | 4960lm/m | 35W/m | |
| VP4AEE-830M-Lxxxx-K | Vision-P4 | Special length L=xxxxmm | Microprismatic screen | Silver Anodised | 3000K | Switchable | Parallel susp. (Set) | 4086lm/m | 34W/m |
