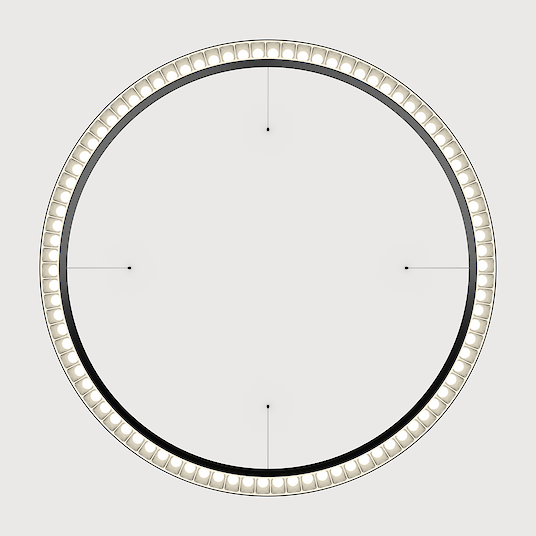

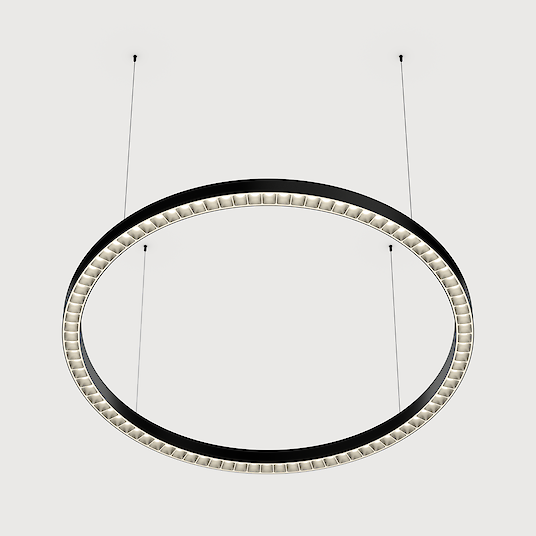

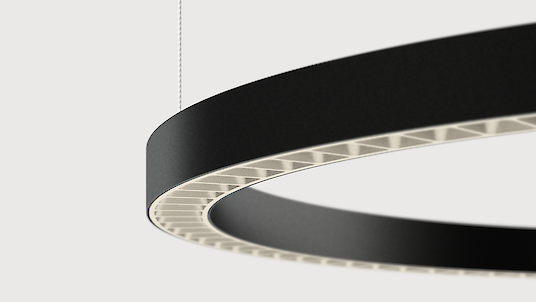

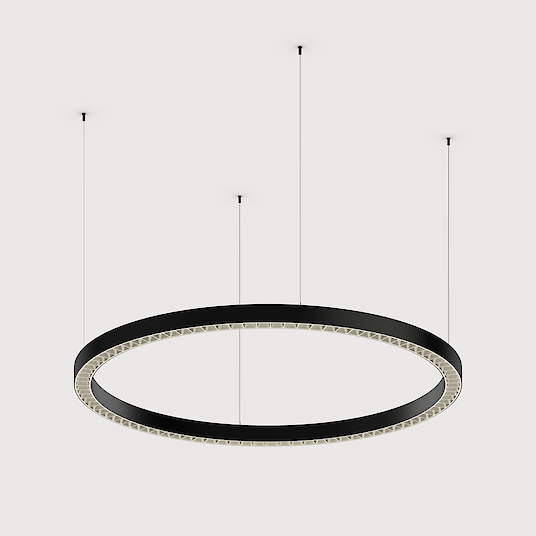

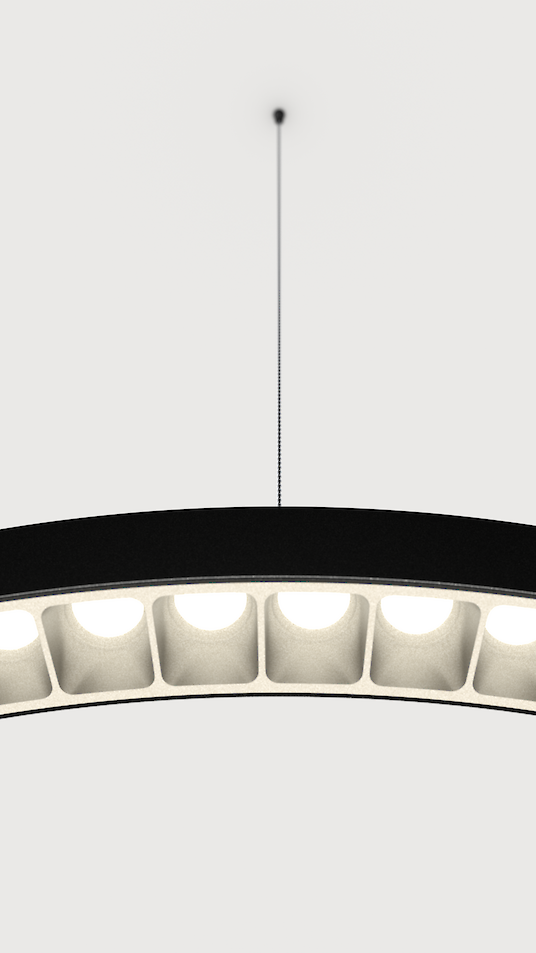

LED pendant luminaire
Direct-indirect or direct-only light distribution. Luminaire body made of aluminium profile with 40mm profile width. 6 different diameters from 600mm to 2500mm. Surface white, silver, graphite, black, champagne or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre (Ø600-Ø1245) for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable central, parallel or disc cord suspension with transparent power supply cable. Colours ceiling rose match to luminaire body.
Product adjustments
Snow White | Snow White
Snow White | Satin Silver
Snow White | Jet Black
Snow White | Satin Gold
Snow White | Anodic Champagne
Snow White | Satin Copper
Snow White
Satin Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPXLWE-830M-D600-UB | Ringo Star-PX | D=600mm | Lens Louvre | Snow White | 3000K | Switchable | Central susp. (Set) | Reflector: Jet Black | 7508lm | 61W | |
| RPXLWE-830M-D600-UG | Ringo Star-PX | D=600mm | Lens Louvre | Snow White | 3000K | Switchable | Central susp. (Set) | Reflector: Satin Gold | 7508lm | 61W | |
| RPXLSE-830M-D600-UA | Ringo Star-PX | D=600mm | Lens Louvre | Radiant Silver | 3000K | Switchable | Central susp. (Set) | Reflector: Satin Silver | 7508lm | 61W | |
| RPXLBE-830M-D600-UB | Ringo Star-PX | D=600mm | Lens Louvre | Jet Black | 3000K | Switchable | Central susp. (Set) | Reflector: Jet Black | 7508lm | 61W | |
| RPXLBE-830M-D600-UG | Ringo Star-PX | D=600mm | Lens Louvre | Jet Black | 3000K | Switchable | Central susp. (Set) | Reflector: Satin Gold | 7508lm | 61W | |
| RPXLWE-840M-D600-UW | Ringo Star-PX | D=600mm | Lens Louvre | Snow White | 4000K | Switchable | Central susp. (Set) | Reflector: Snow White | 8030lm | 61W | |
| RPXLWE-840M-D600-UB | Ringo Star-PX | D=600mm | Lens Louvre | Snow White | 4000K | Switchable | Central susp. (Set) | Reflector: Jet Black | 8030lm | 61W | |
| RPXLWE-840M-D600-UG | Ringo Star-PX | D=600mm | Lens Louvre | Snow White | 4000K | Switchable | Central susp. (Set) | Reflector: Satin Gold | 8030lm | 61W | |
| RPXLSE-840M-D600-UA | Ringo Star-PX | D=600mm | Lens Louvre | Radiant Silver | 4000K | Switchable | Central susp. (Set) | Reflector: Satin Silver | 8030lm | 61W | |
| RPXLBE-840M-D600-UB | Ringo Star-PX | D=600mm | Lens Louvre | Jet Black | 4000K | Switchable | Central susp. (Set) | Reflector: Jet Black | 8030lm | 61W |
