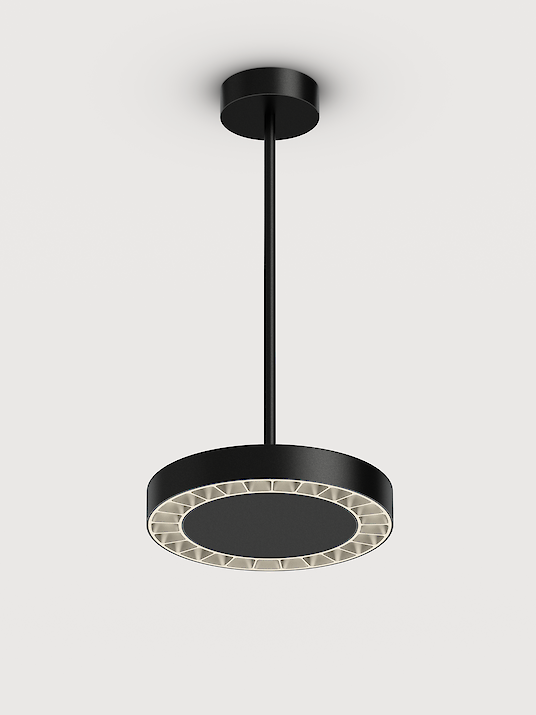

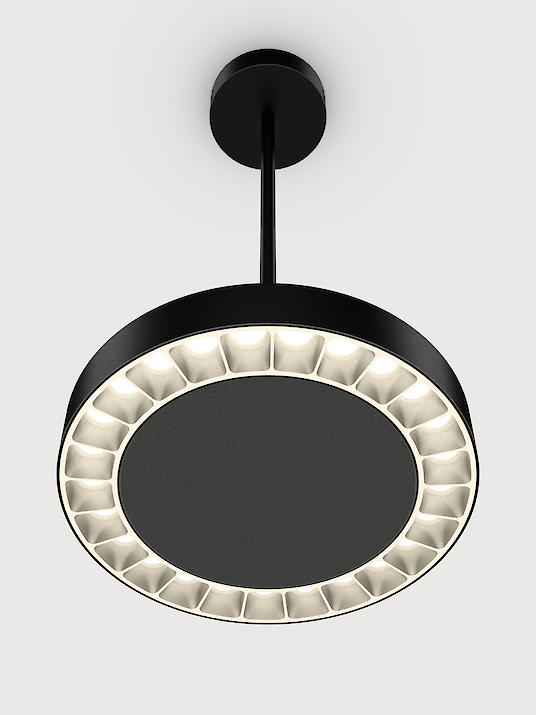

LED pendant luminaire

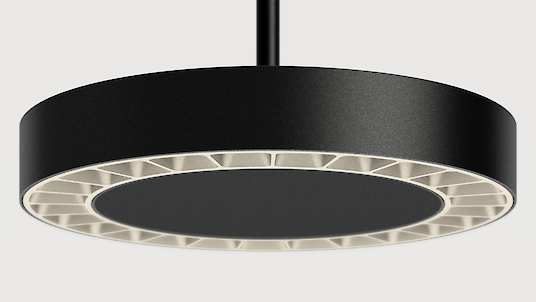

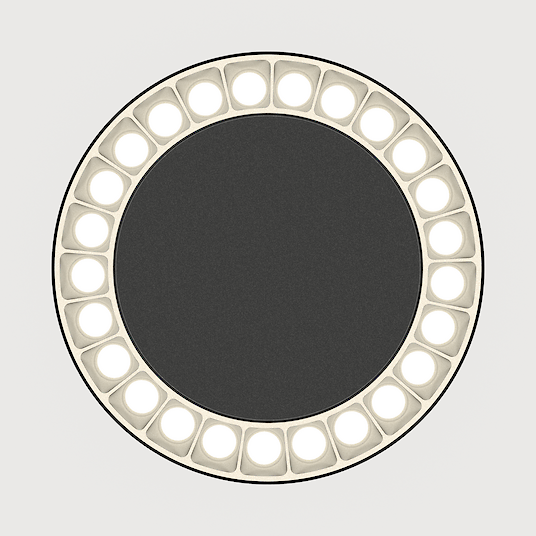

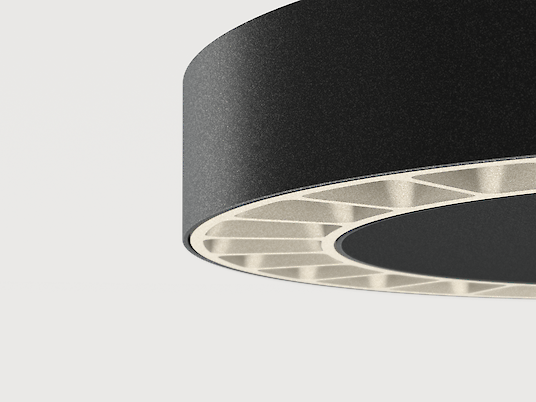

Direct-indirect or direct-only light distribution. Luminaire body made of aluminium profile with 40mm profile width. Compact version with internal blind element. 3 different diameters (Ø200, Ø270, Ø370). Surface white, silver, graphite, black, champagne or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19) especially for workplaces. Louvre available in various colour finishes. Driver integrated into central blind element, optionally switchable or dimmable (DALI, Touch-Dim). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable central cord suspension with transparent power supply cable or rod suspension. On request: Integration of sensor technology, ventilation outlets, loudspeakers, surveillance cameras and additional downlights in the central blind element.
Product adjustments
Blind Plate
Emergency Module
Multisensor
Camera
Snow White | Snow White
Snow White | Satin Silver
Snow White | Jet Black
Snow White | Satin Gold
Snow White | Anodic Champagne
Snow White | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Reflector Colour Inside | Central Module | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RP5LBL-827H-D370-PG-BP | Ringo Star-P5 | D=370mm | Lens Louvre | Jet Black | 2700K | Dimmable (DALI) | Rod susp. (Set) | Reflector: Satin Gold | Blind Plate | 5423lm | 46W | |
| RP5LWL-830H-D370-PW-BP | Ringo Star-P5 | D=370mm | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Rod susp. (Set) | Reflector: Snow White | Blind Plate | 5423lm | 46W | |
| RP5LWL-830H-D370-PG-BP | Ringo Star-P5 | D=370mm | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Rod susp. (Set) | Reflector: Satin Gold | Blind Plate | 5423lm | 46W | |
| RP5LWL-830H-D370-PB-BP | Ringo Star-P5 | D=370mm | Lens Louvre | Snow White | 3000K | Dimmable (DALI) | Rod susp. (Set) | Reflector: Jet Black | Blind Plate | 5423lm | 46W | |
| RP5LAL-830H-D370-PA-BP | Ringo Star-P5 | D=370mm | Lens Louvre | Satin Silver | 3000K | Dimmable (DALI) | Rod susp. (Set) | Reflector: Satin Silver | Blind Plate | 5423lm | 46W | |
| RP5LBL-830H-D370-PB-BP | Ringo Star-P5 | D=370mm | Lens Louvre | Jet Black | 3000K | Dimmable (DALI) | Rod susp. (Set) | Reflector: Jet Black | Blind Plate | 5423lm | 46W | |
| RP5LBL-830H-D370-PG-BP | Ringo Star-P5 | D=370mm | Lens Louvre | Jet Black | 3000K | Dimmable (DALI) | Rod susp. (Set) | Reflector: Satin Gold | Blind Plate | 5423lm | 46W | |
| RP5LWL-840H-D370-PW-BP | Ringo Star-P5 | D=370mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Rod susp. (Set) | Reflector: Snow White | Blind Plate | 5800lm | 46W | |
| RP5LWL-840H-D370-PG-BP | Ringo Star-P5 | D=370mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Rod susp. (Set) | Reflector: Satin Gold | Blind Plate | 5800lm | 46W | |
| RP5LWL-840H-D370-PB-BP | Ringo Star-P5 | D=370mm | Lens Louvre | Snow White | 4000K | Dimmable (DALI) | Rod susp. (Set) | Reflector: Jet Black | Blind Plate | 5800lm | 46W |
