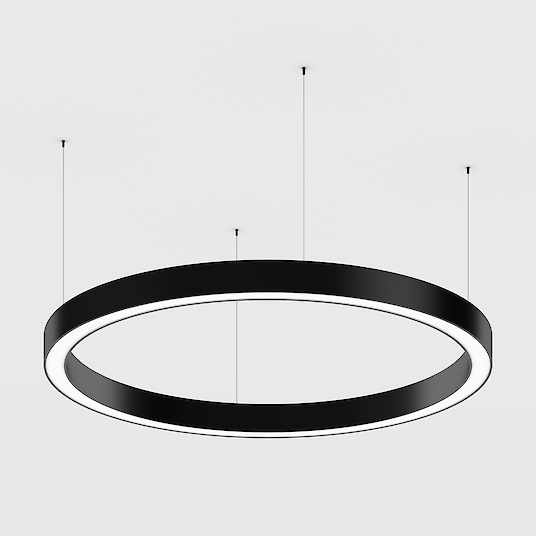

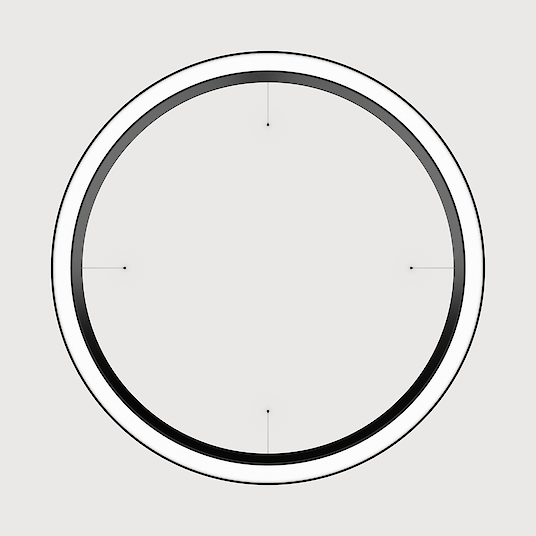

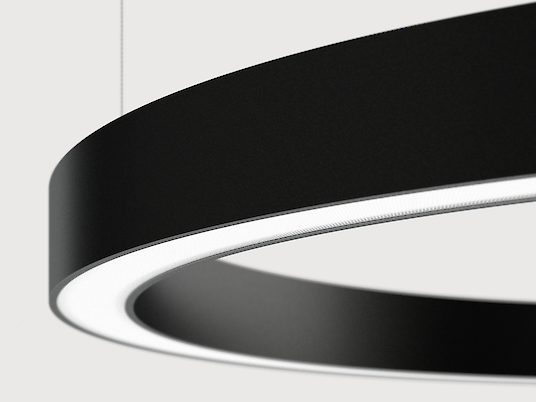

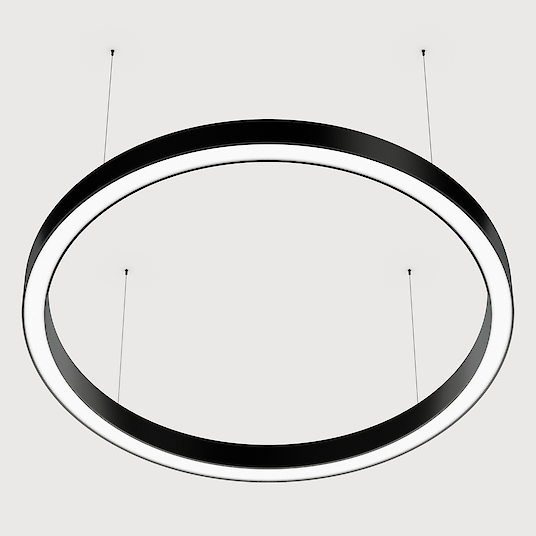

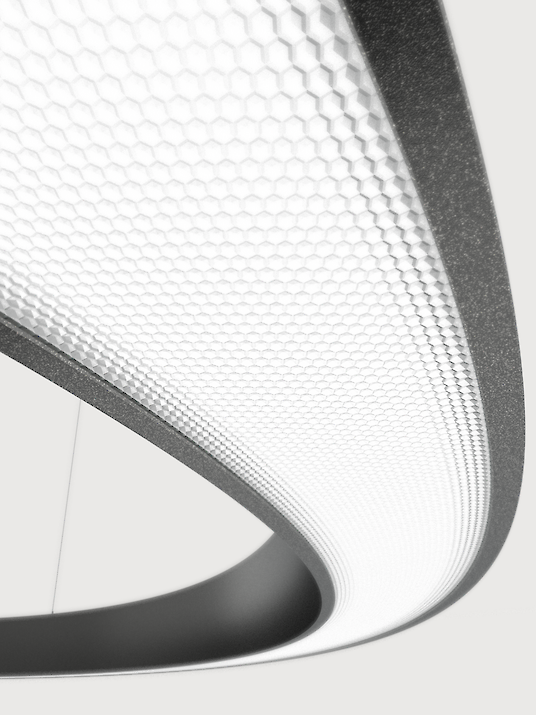

LED pendant luminaire. Direct-indirect or direct-only light distribution. Luminaire body made of 60mm wide aluminium profile. 13 different diameters from 600mm to 8000mm. Surface white, silver, graphite, black, champagne or copper coated. For further surface options see Lightnet- Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700 -6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable central, parallel or disc cord suspension with transparent power supply cable. Colours ceiling rose match to luminaire body.
Product adjustments
Snow White
Radiant Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| RG3ASL-827H-D2000-D | Ringo Star-G3 | D=2000mm | Microprismatic screen | Radiant Silver | 2700K | Dimmable (DALI) | Disc-Susp. (Set) | 13305lm | 203W | |
| RG3ABE-840M-D2000-D | Ringo Star-G3 | D=2000mm | Microprismatic screen | Jet Black | 4000K | Switchable | Disc-Susp. (Set) | 10730lm | 142W | |
| RG3ASE-840H-D1500-D | Ringo Star-G3 | D=1500mm | Microprismatic screen | Radiant Silver | 4000K | Switchable | Disc-Susp. (Set) | 10700lm | 143W | |
| RG3AWE-840H-D1500-D | Ringo Star-G3 | D=1500mm | Microprismatic screen | Snow White | 4000K | Switchable | Disc-Susp. (Set) | 10700lm | 143W | |
| RG3ABL-830M-D1500-D | Ringo Star-G3 | D=1500mm | Microprismatic screen | Jet Black | 3000K | Dimmable (DALI) | Disc-Susp. (Set) | 7686lm | 106W | |
| RG3ASL-830M-D1500-D | Ringo Star-G3 | D=1500mm | Microprismatic screen | Radiant Silver | 3000K | Dimmable (DALI) | Disc-Susp. (Set) | 7686lm | 106W | |
| RG3ABL-827M-D3000-K | Ringo Star-G3 | D=3000mm | Microprismatic screen | Jet Black | 2700K | Dimmable (DALI) | Parallel susp. (Set) | 15381lm | 211W | |
| RG3ASL-827M-D3000-K | Ringo Star-G3 | D=3000mm | Microprismatic screen | Radiant Silver | 2700K | Dimmable (DALI) | Parallel susp. (Set) | 15381lm | 211W | |
| RG3ABE-827M-D3000-K | Ringo Star-G3 | D=3000mm | Microprismatic screen | Jet Black | 2700K | Switchable | Parallel susp. (Set) | 15381lm | 211W | |
| RG3ASE-827M-D3000-K | Ringo Star-G3 | D=3000mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | Parallel susp. (Set) | 15381lm | 211W |
