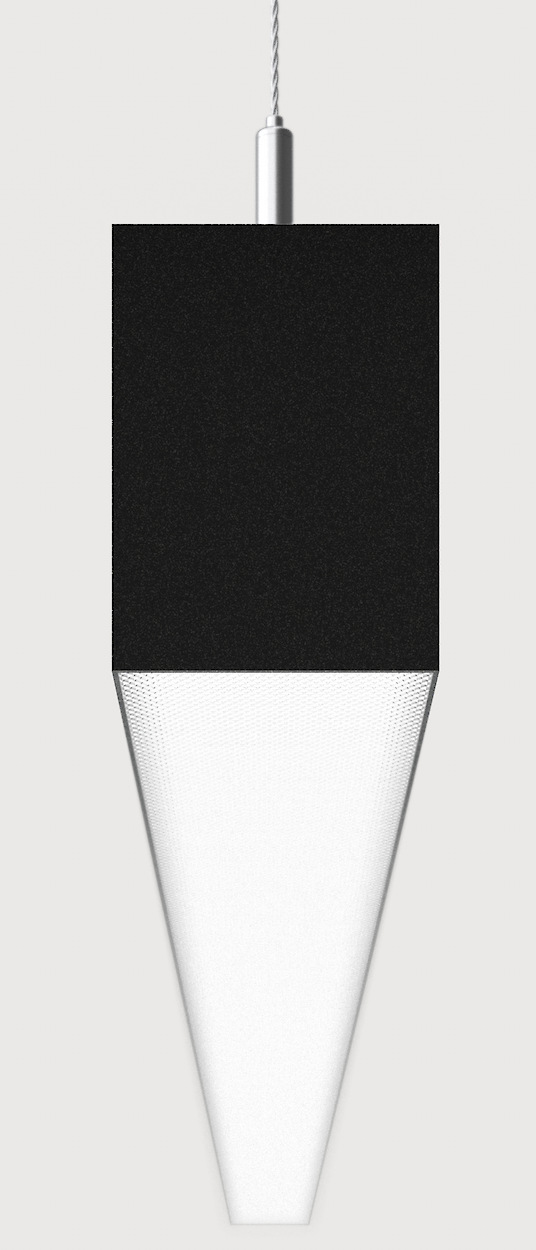

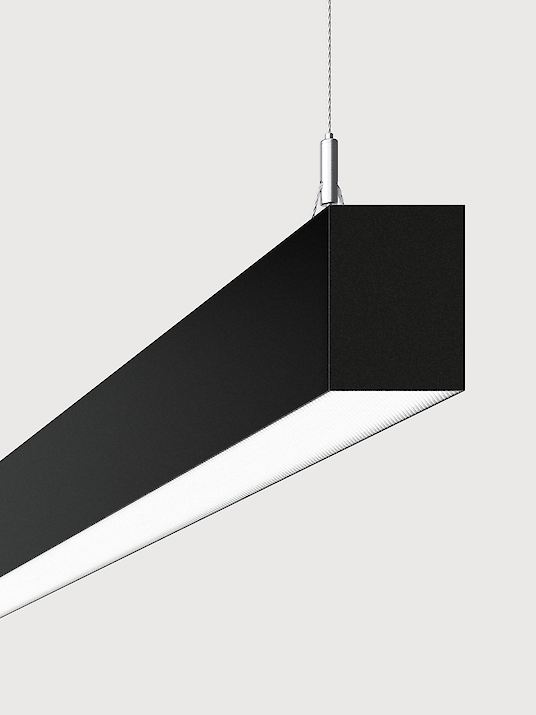

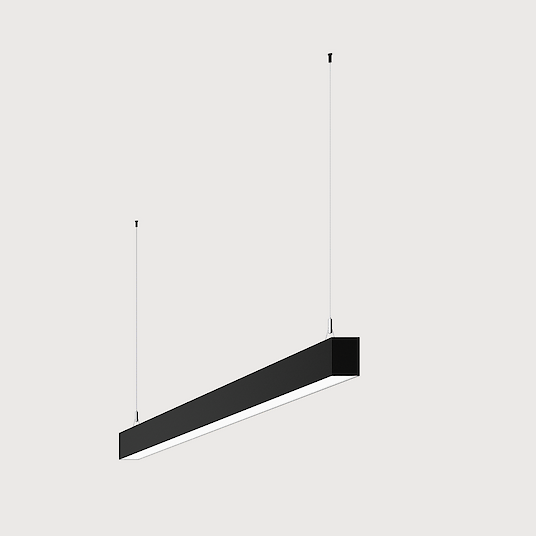

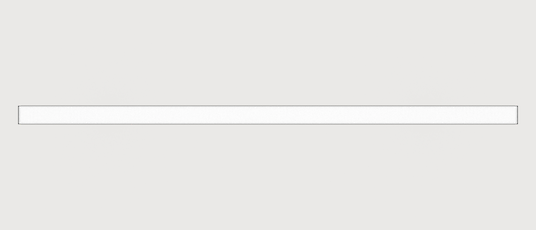

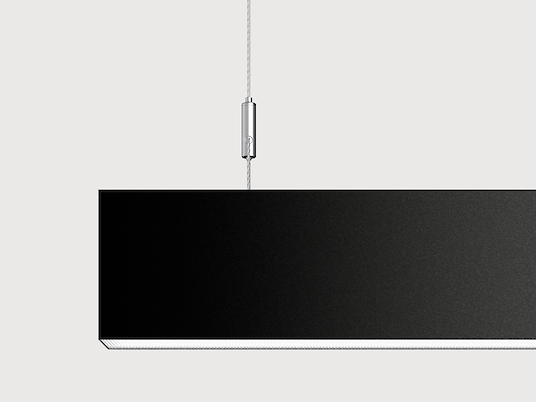

LED pendant luminaire. Direct-indirect or direct-only light distribution. Light channel made of 55mm wide aluminium profile. Bespoke lengths are possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19). Louvre available in various colour finishes. Microprismatic screen made of special acrylic glass with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable Y-cord suspension with transparent power supply cable. Colours ceiling rose match to luminaire body. On request: Integration of tracks and spotlights, emergency lighting components, sensor technology.
Product adjustments
90° Corner Opal/Microprismatic
Midpin Spotlight XM 770lm/10W/Ø40mm
Midpin Spotlight XP 770lm/10W/Ø40mm
Multisensor
Jet Black | Snow White
Jet Black | Satin Silver
Jet Black | Jet Black
Jet Black | Satin Gold
Jet Black | Anodic Champagne
Jet Black | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| LG3LWE-840H-L2002-YG | Matric-G3 | L=2002mm | Lens Louvre | Snow White | 4000K | Switchable | Y-susp. (Set) | 7180lm | 53W | |
| LG3LEE-840H-L2002-YA | Matric-G3 | L=2002mm | Lens Louvre | Silver Anodised | 4000K | Switchable | Y-susp. (Set) | 7180lm | 53W | |
| LG3LBE-840H-L2002-YB | Matric-G3 | L=2002mm | Lens Louvre | Jet Black | 4000K | Switchable | Y-susp. (Set) | 7180lm | 53W | |
| LG3LBE-840H-L2002-YG | Matric-G3 | L=2002mm | Lens Louvre | Jet Black | 4000K | Switchable | Y-susp. (Set) | 7180lm | 53W | |
| LG3LEL-840H-L2002-YA | Matric-G3 | L=2002mm | Lens Louvre | Silver Anodised | 4000K | Dimmable (DALI) | Y-susp. (Set) | 7180lm | 53W | |
| LG3LBL-840H-L2002-YB | Matric-G3 | L=2002mm | Lens Louvre | Jet Black | 4000K | Dimmable (DALI) | Y-susp. (Set) | 7180lm | 53W | |
| LG3LBL-840H-L2002-YG | Matric-G3 | L=2002mm | Lens Louvre | Jet Black | 4000K | Dimmable (DALI) | Y-susp. (Set) | 7180lm | 53W | |
| LG3LWE-840H-L2002-YB | Matric-G3 | L=2002mm | Lens Louvre | Snow White | 4000K | Switchable | Y-susp. (Set) | 7180lm | 53W | |
| LG3GWL-830H-L890-Y | Matric-G3 | L=890mm | Wall-Washer | Snow White | 3000K | Dimmable (DALI) | Y-susp. (Set) | 1440lm | 21W | |
| LG3LBE-830H-L2002-YG | Matric-G3 | L=2002mm | Lens Louvre | Jet Black | 3000K | Switchable | Y-susp. (Set) | 6713lm | 53W |
