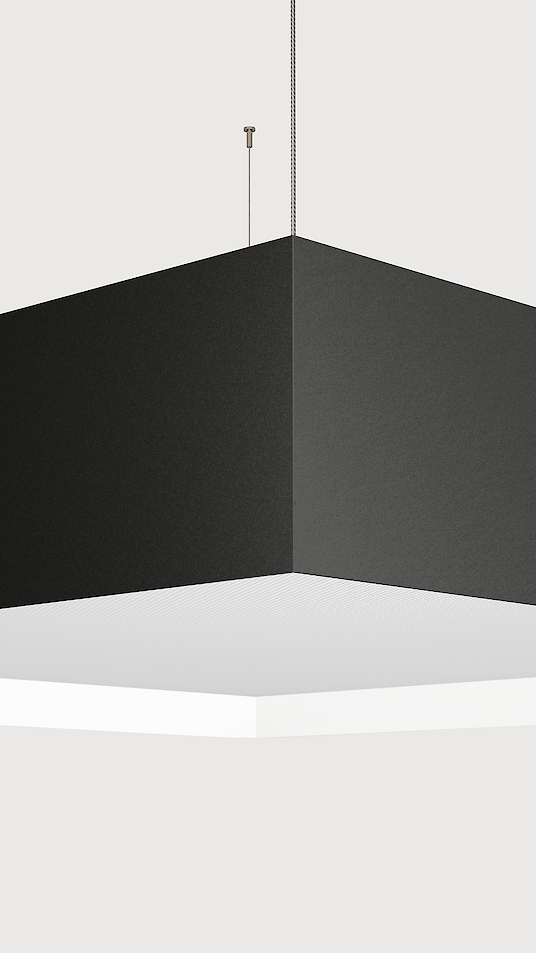

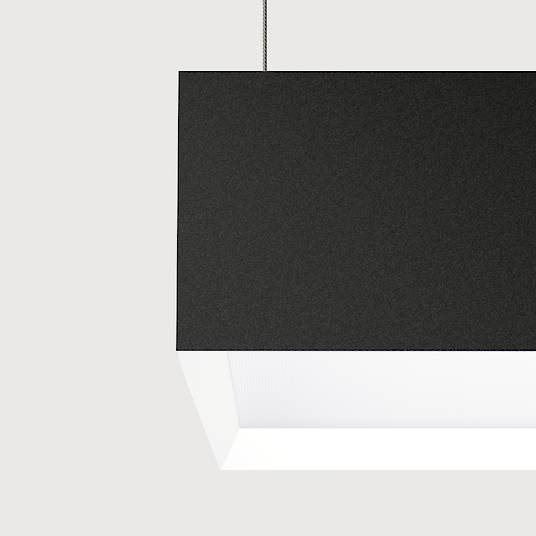

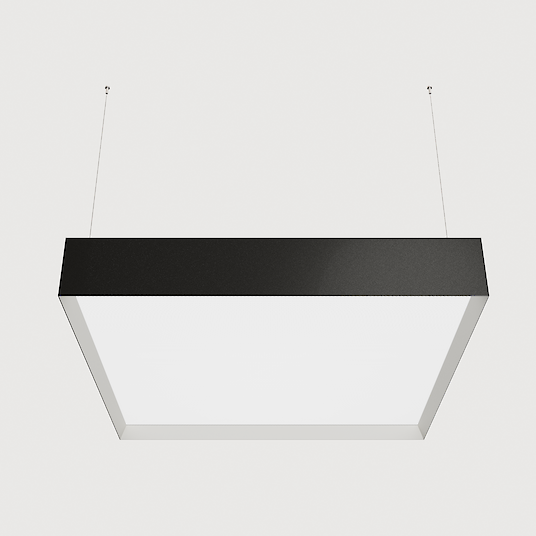

LED pendant luminaire

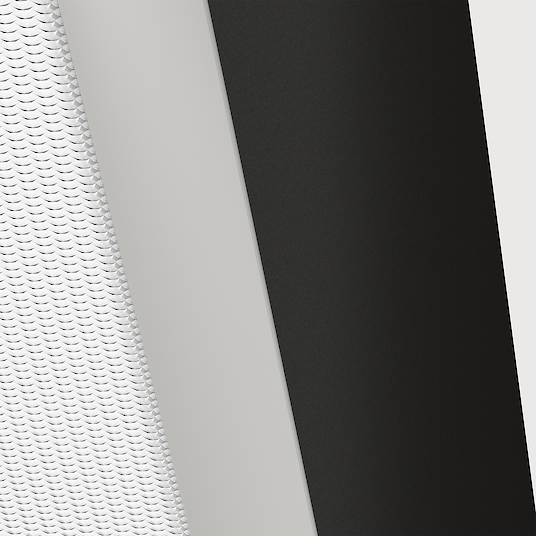

Direct-indirect or direct-only light distribution. Luminaire body made of aluminum profile. Outer housing and Decorative trim available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For surface options and combinations check Lightnet-Surface-Collection or RAL of your choice. Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable parallel cord suspension with transparent power supply cable. Colours ceiling rose match to luminaire body. On request: Integration of emergency lighting components.
Product adjustments
Snow White | Snow White
Snow White | Radiant Silver
Snow White | Jet Black
Snow White | Satin Gold
Snow White | Anodic Champagne
Snow White | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CP3AWE-827M-Q430-KW | Cubic-P3 | L=430mm | Microprismatic screen | Snow White | 2700K | Switchable | Parallel susp. (Set) | Reflector: Snow White | 4077lm | 30W | |
| CP3AWE-827M-Q430-KB | Cubic-P3 | L=430mm | Microprismatic screen | Snow White | 2700K | Switchable | Parallel susp. (Set) | Reflector: Jet Black | 4077lm | 30W | |
| CP3AWE-827M-Q430-KG | Cubic-P3 | L=430mm | Microprismatic screen | Snow White | 2700K | Switchable | Parallel susp. (Set) | Reflector: Satin Gold | 4077lm | 30W | |
| CP3ASE-827M-Q430-KS | Cubic-P3 | L=430mm | Microprismatic screen | Radiant Silver | 2700K | Switchable | Parallel susp. (Set) | Reflector: Radiant Silver | 4077lm | 30W | |
| CP3ABE-827M-Q430-KB | Cubic-P3 | L=430mm | Microprismatic screen | Jet Black | 2700K | Switchable | Parallel susp. (Set) | Reflector: Jet Black | 4077lm | 30W | |
| CP3ABE-827M-Q430-KG | Cubic-P3 | L=430mm | Microprismatic screen | Jet Black | 2700K | Switchable | Parallel susp. (Set) | Reflector: Satin Gold | 4077lm | 30W | |
| CP3AWE-830H-Q430-KW | Cubic-P3 | L=430mm | Microprismatic screen | Snow White | 3000K | Switchable | Parallel susp. (Set) | Reflector: Snow White | 5891lm | 44W | |
| CP3OWE-827H-Q530-KW | Cubic-P3 | L=530mm | Opal diffuser | Snow White | 2700K | Switchable | Parallel susp. (Set) | Reflector: Snow White | 10631lm | 78W | |
| CP3OWE-827H-Q530-KB | Cubic-P3 | L=530mm | Opal diffuser | Snow White | 2700K | Switchable | Parallel susp. (Set) | Reflector: Jet Black | 10631lm | 78W | |
| CP3OWE-827H-Q530-KG | Cubic-P3 | L=530mm | Opal diffuser | Snow White | 2700K | Switchable | Parallel susp. (Set) | Reflector: Satin Gold | 10631lm | 78W |
