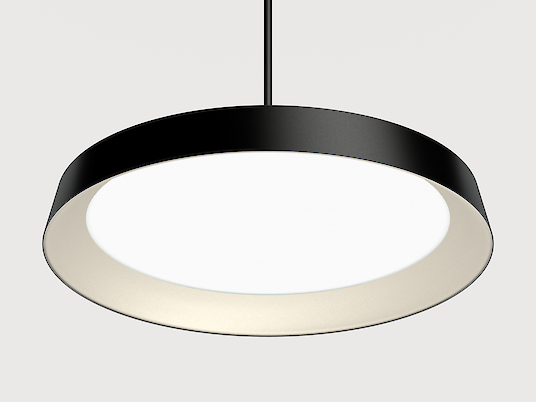

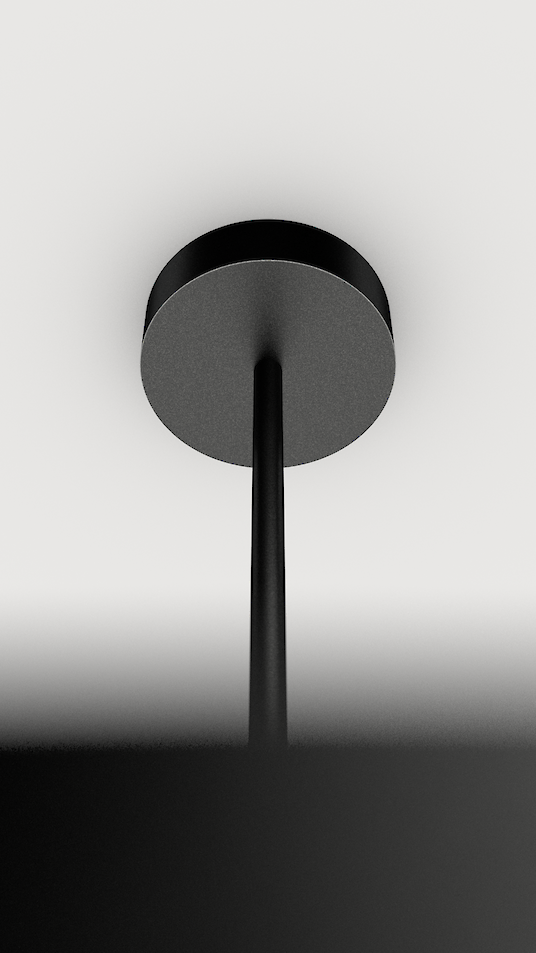

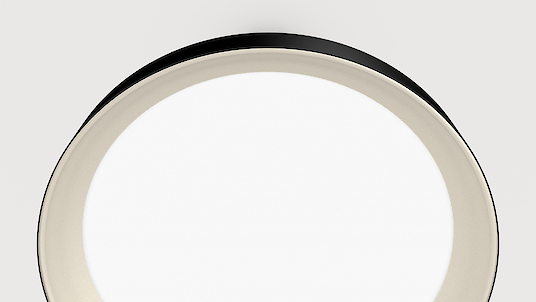

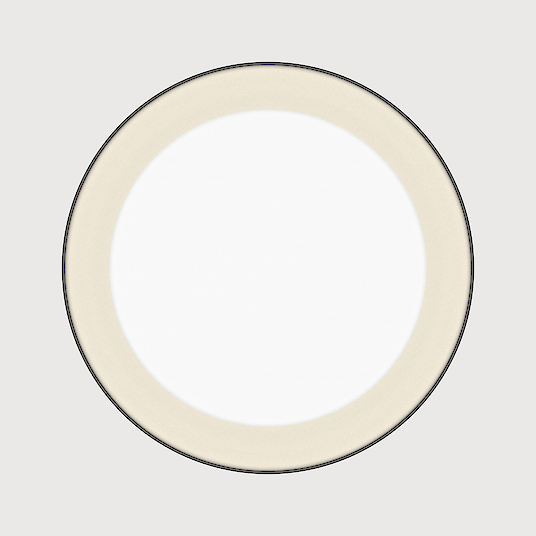

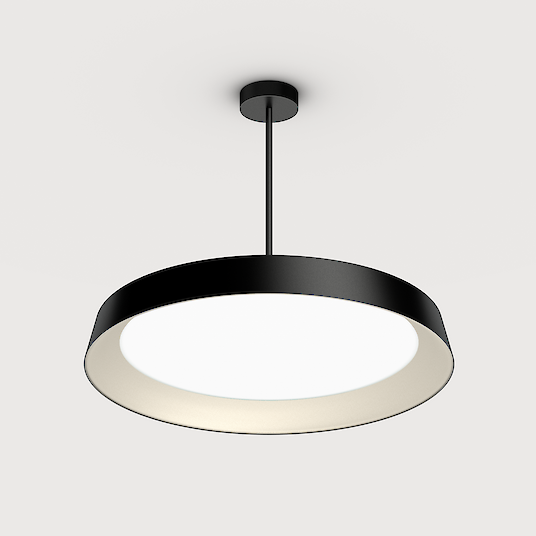

LED pendant luminaire with a rebated lens optic in a decorative ring. Direct-indirect or direct-only light distribution. Luminaire shade made of high-quality processed FRP (fiberglass reinforced plastic). Outer housing and Decorative reflector ring available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80 or CRI>90. Height-adjustable central cord suspension, parallel cord suspension with transparent power supply cable or rod suspension. Colours ceiling rose and rod suspension match to luminaire body. On request: Integration of emergency lighting components, sensor technology.
Product adjustments
Anodic Champagne | Anodic Champagne
Urban Graphite | Urban Graphite
Satin Copper | Satin Copper
Anodic Champagne | Jet Black
Jet Black | Satin Gold
Jet Black | Snow White
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MP3AWE-827M-D850-UW | Beam Me Up-P3 | D=850mm | Microprismatic screen | Snow White | 2700K | Switchable | Central susp. (Set) | Reflector: Snow White | 7003lm | 60W | |
| MP3AWE-827M-D850-UB | Beam Me Up-P3 | D=850mm | Microprismatic screen | Snow White | 2700K | Switchable | Central susp. (Set) | Reflector: Jet Black | 7003lm | 60W | |
| MP3OWL-827M-D850-KG | Beam Me Up-P3 | D=850mm | Opal diffuser | Snow White | 2700K | Dimmable (DALI) | Parallel susp. (Set) | Reflector: Satin Gold | 7153lm | 60W | |
| MP3OWL-827M-D850-KW | Beam Me Up-P3 | D=850mm | Opal diffuser | Snow White | 2700K | Dimmable (DALI) | Parallel susp. (Set) | Reflector: Snow White | 7153lm | 60W | |
| MP3OBE-840M-D850-KG | Beam Me Up-P3 | D=850mm | Opal diffuser | Jet Black | 4000K | Switchable | Parallel susp. (Set) | Reflector: Satin Gold | 7650lm | 60W | |
| MP3OBE-840M-D850-KB | Beam Me Up-P3 | D=850mm | Opal diffuser | Jet Black | 4000K | Switchable | Parallel susp. (Set) | Reflector: Jet Black | 7650lm | 60W | |
| MP3OAE-840M-D850-KA | Beam Me Up-P3 | D=850mm | Opal diffuser | Satin Silver | 4000K | Switchable | Parallel susp. (Set) | Reflector: Satin Silver | 7650lm | 60W | |
| MP3OWE-840M-D850-KB | Beam Me Up-P3 | D=850mm | Opal diffuser | Snow White | 4000K | Switchable | Parallel susp. (Set) | Reflector: Jet Black | 7650lm | 60W | |
| MP3OBE-830M-D850-KG | Beam Me Up-P3 | D=850mm | Opal diffuser | Jet Black | 3000K | Switchable | Parallel susp. (Set) | Reflector: Satin Gold | 7153lm | 60W | |
| MP3OBE-830M-D850-KB | Beam Me Up-P3 | D=850mm | Opal diffuser | Jet Black | 3000K | Switchable | Parallel susp. (Set) | Reflector: Jet Black | 7153lm | 60W |
