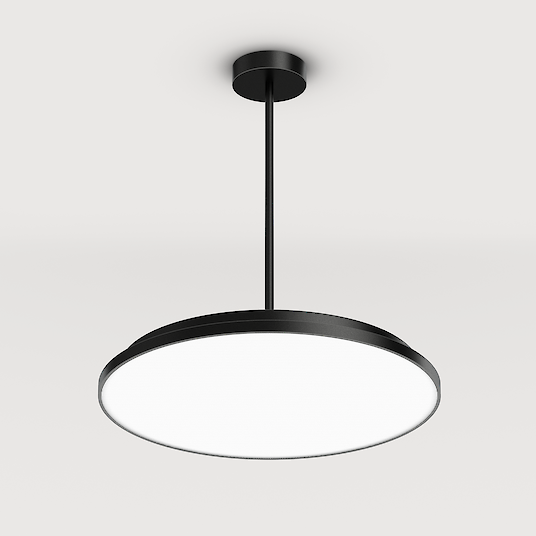

LED pendant luminaire. Direct-indirect or direct-only light distribution. Tiered luminaire body made of aluminium profile with 18mm visible frame. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable central cord suspension with transparent power supply cable or rod suspension. Colours ceiling rose and rod suspension match to luminaire body. On request: Integration of emergency lighting components, sensor technology.
Product adjustments
Multisensor
Emergency Module
Snow White
Radiant Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| BP7OSL-830H-D800-P | Basic-P7 | D=800mm | Opal diffuser | Radiant Silver | 3000K | Dimmable (DALI) | Rod susp. (Set) | 10210lm | 81W | |
| BP7OSL-830H-D800-U | Basic-P7 | D=800mm | Opal diffuser | Radiant Silver | 3000K | Dimmable (DALI) | Central susp. (Set) | 10210lm | 81W | |
| BP7ASL-830H-D800-P | Basic-P7 | D=800mm | Microprismatic screen | Radiant Silver | 3000K | Dimmable (DALI) | Rod susp. (Set) | 10051lm | 81W | |
| BP7ASL-830H-D800-U | Basic-P7 | D=800mm | Microprismatic screen | Radiant Silver | 3000K | Dimmable (DALI) | Central susp. (Set) | 10051lm | 81W | |
| BP7OSL-830M-D800-P | Basic-P7 | D=800mm | Opal diffuser | Radiant Silver | 3000K | Dimmable (DALI) | Rod susp. (Set) | 7461lm | 60W | |
| BP7OSL-830M-D800-U | Basic-P7 | D=800mm | Opal diffuser | Radiant Silver | 3000K | Dimmable (DALI) | Central susp. (Set) | 7461lm | 60W | |
| BP7ASL-830M-D800-P | Basic-P7 | D=800mm | Microprismatic screen | Radiant Silver | 3000K | Dimmable (DALI) | Rod susp. (Set) | 7349lm | 60W | |
| BP7ASL-830M-D800-U | Basic-P7 | D=800mm | Microprismatic screen | Radiant Silver | 3000K | Dimmable (DALI) | Central susp. (Set) | 7349lm | 60W | |
| BP7OSL-840H-D800-P | Basic-P7 | D=800mm | Opal diffuser | Radiant Silver | 4000K | Dimmable (DALI) | Rod susp. (Set) | 10920lm | 81W | |
| BP7OSL-840H-D800-U | Basic-P7 | D=800mm | Opal diffuser | Radiant Silver | 4000K | Dimmable (DALI) | Central susp. (Set) | 10920lm | 81W |
