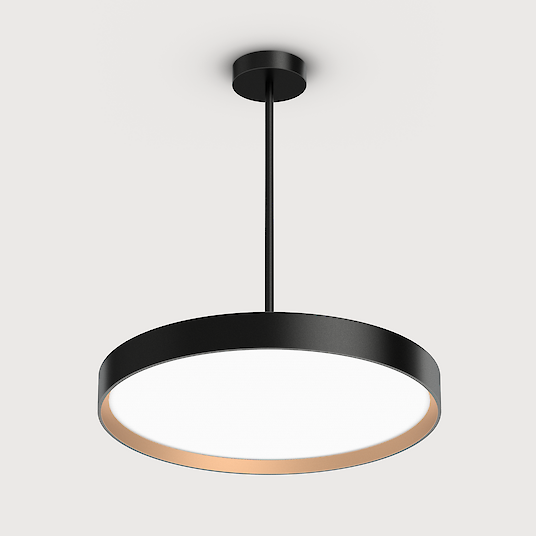

LED pendant luminaire

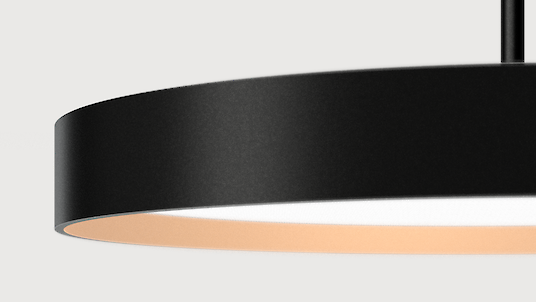

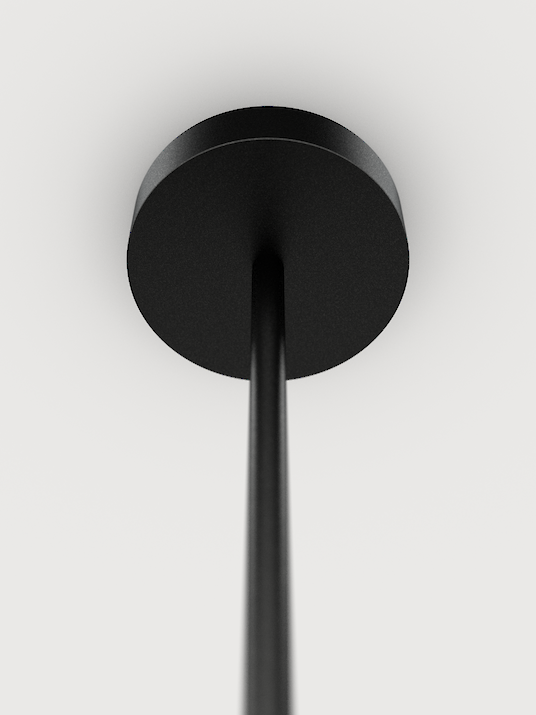

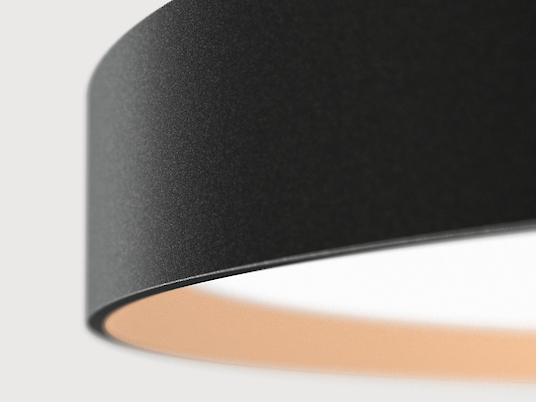

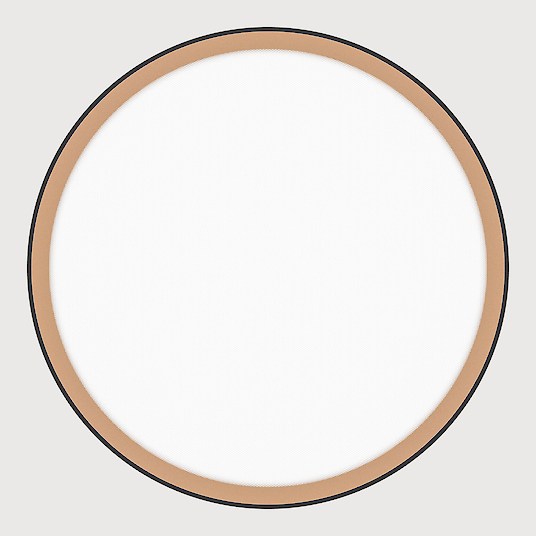

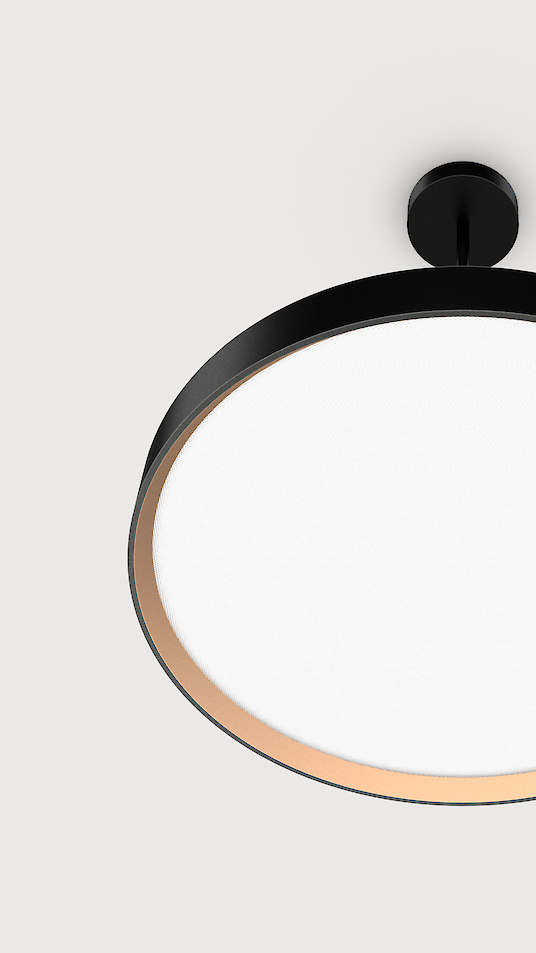

Direct-indirect or direct-only light distribution. Luminaire body made of aluminium profile with overall height of 58mm. Outer housing and Decorative reflector ring available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Height-adjustable central cord suspension with transparent power supply cable or rod suspension. Colours ceiling rose and rod suspension match to luminaire body. On request: Integration of emergency lighting components, sensor technology.
Product adjustments
Multisensor
Emergency Module
Snow White | Snow White
Radiant Silver | Radiant Silver
Urban Graphite | Urban Graphite
Jet Black | Jet Black
Anodic Champagne | Anodic Champagne
Satin Copper | Satin Copper
Snow White | Satin Copper
Snow White | Satin Gold
Snow White | Jet Black
Anodic Champagne | Jet Black
Jet Black | Satin Gold
Jet Black | Snow White
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Reflector Colour Inside | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BP3AWE-830M-D300-UW | Basic-P3 | D=300mm | Microprismatic screen | Snow White | 3000K | Switchable | Central susp. (Set) | Reflector: Snow White | 1384lm | 13W | |
| BP3AWE-830M-D400-UW | Basic-P3 | D=400mm | Microprismatic screen | Snow White | 3000K | Switchable | Central susp. (Set) | Reflector: Snow White | 2216lm | 20W | |
| BP3AWE-830M-D500-UW | Basic-P3 | D=500mm | Microprismatic screen | Snow White | 3000K | Switchable | Central susp. (Set) | Reflector: Snow White | 3273lm | 29W | |
| BP3AWE-830M-D600-UW | Basic-P3 | D=600mm | Microprismatic screen | Snow White | 3000K | Switchable | Central susp. (Set) | Reflector: Snow White | 5030lm | 43W | |
| BP3ASE-830M-D300-US | Basic-P3 | D=300mm | Microprismatic screen | Radiant Silver | 3000K | Switchable | Central susp. (Set) | Reflector: Radiant Silver | 1384lm | 13W | |
| BP3ASE-830M-D400-US | Basic-P3 | D=400mm | Microprismatic screen | Radiant Silver | 3000K | Switchable | Central susp. (Set) | Reflector: Radiant Silver | 2216lm | 20W | |
| BP3ASE-830M-D500-US | Basic-P3 | D=500mm | Microprismatic screen | Radiant Silver | 3000K | Switchable | Central susp. (Set) | Reflector: Radiant Silver | 3273lm | 29W | |
| BP3ASE-830M-D600-US | Basic-P3 | D=600mm | Microprismatic screen | Radiant Silver | 3000K | Switchable | Central susp. (Set) | Reflector: Radiant Silver | 5030lm | 43W | |
| BP3ABE-830M-D300-UB | Basic-P3 | D=300mm | Microprismatic screen | Jet Black | 3000K | Switchable | Central susp. (Set) | Reflector: Jet Black | 1384lm | 13W | |
| BP3ABE-830M-D400-UB | Basic-P3 | D=400mm | Microprismatic screen | Jet Black | 3000K | Switchable | Central susp. (Set) | Reflector: Jet Black | 2216lm | 20W |
