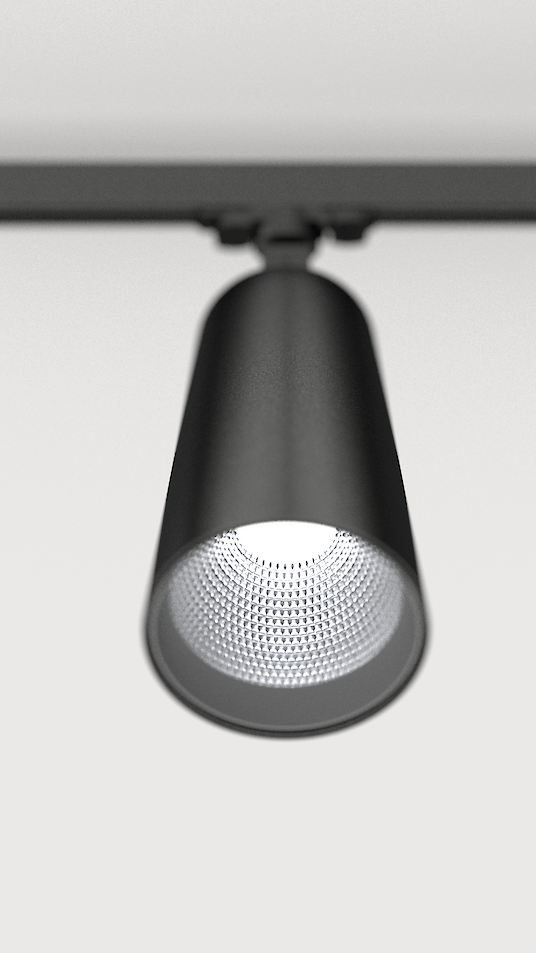

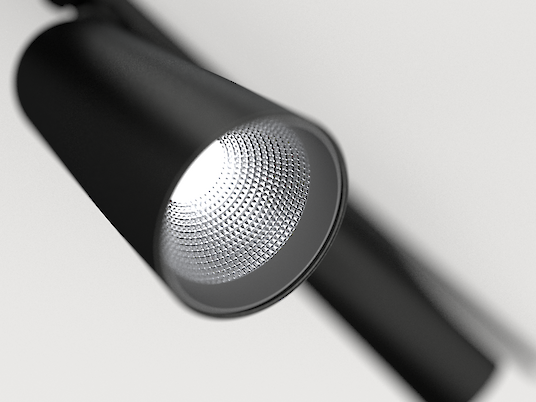

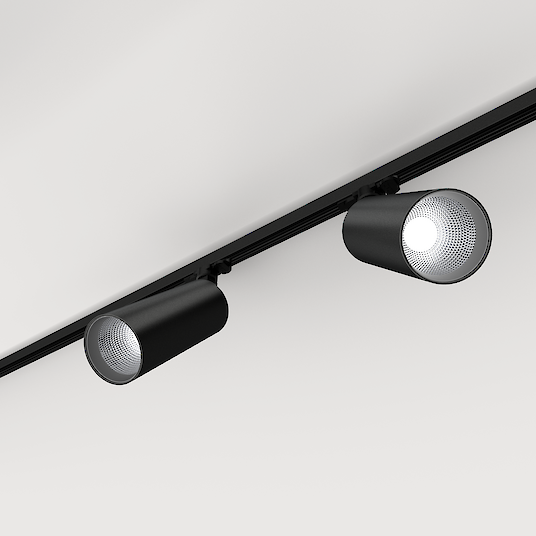

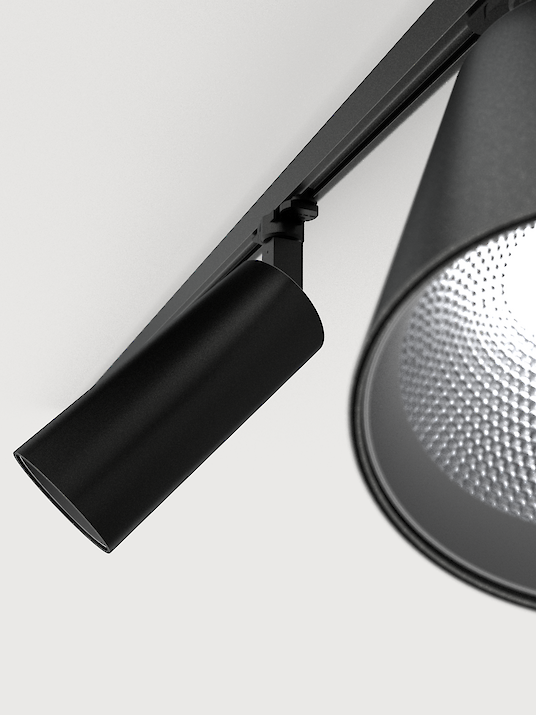

LED spotlight for 3-phase tracks
350° rotation and 90° tilt. Driver integrated into spotlight head, dimmable (DALI). Housing made of white, silver, black or champagne coated aluminum. LED Engine with XICATO ARTIST for highest light quality and colour rendering (CRI>97), including 5 year warranty for colour consistency (MacAdams 3) or ECO for highest energy efficiency with optimal price-performance ratio and CRI> 90. Colour temperature 2700K, 3000K or 4000K. Replaceable lens reflector optic with spherical facetted optic. Beam angle: 10° (Spot), 20° (Medium), 35° (Flood) or 50° (Wide Flood). Standard clear cover. Reflector ring available in different colours. Track adapter options, EUTRAC or GLOBAL. Optional additional filters or honeycomb grid.
Product adjustments
Optic Removal Tool for clear cover
Eutrac Adaptor
Global Adaptor
Honeycomb Louver
Prismatic Lens
Snow White | Snow White
Snow White | Jet Black
Snow White | Satin Gold
Radiant Silver | Radiant Silver
Jet Black | Jet Black
Jet Black | Satin Gold
Configuration and data download
| Downloads | Article code | Productname | Reflector Beam Angle | Surface finish | Control | Colour temperature | LED-Module Type | Reflector Colour Inside | Cover | Adaptor | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PC7AWL-930FM-WKE | Midpoint-C7 | Reflector: SPOT 10° | Snow White | Dimmable (DALI) | 3000K | Eco-LED (CRI>90) | Reflector: Snow White | Clear Cover | Eutrac Adaptor | 1860lm | 21W | |
| PC7ASL-930FM-SKE | Midpoint-C7 | Reflector: SPOT 10° | Radiant Silver | Dimmable (DALI) | 3000K | Eco-LED (CRI>90) | Reflector: Radiant Silver | Clear Cover | Eutrac Adaptor | 1860lm | 21W | |
| PC7ABL-930FM-BKE | Midpoint-C7 | Reflector: SPOT 10° | Jet Black | Dimmable (DALI) | 3000K | Eco-LED (CRI>90) | Reflector: Jet Black | Clear Cover | Eutrac Adaptor | 1860lm | 21W | |
| PC7AWL-930FM-GKE | Midpoint-C7 | Reflector: SPOT 10° | Snow White | Dimmable (DALI) | 3000K | Eco-LED (CRI>90) | Reflector: Satin Gold | Clear Cover | Eutrac Adaptor | 1860lm | 21W | |
| PC7AWL-930FM-BKE | Midpoint-C7 | Reflector: SPOT 10° | Snow White | Dimmable (DALI) | 3000K | Eco-LED (CRI>90) | Reflector: Jet Black | Clear Cover | Eutrac Adaptor | 1860lm | 21W | |
| PC7AWL-930FE-WKE | Midpoint-C7 | Reflector: SPOT 10° | Snow White | Dimmable (DALI) | 3000K | Eco-LED (CRI>90) | Reflector: Snow White | Clear Cover | Eutrac Adaptor | 1350lm | 19W | |
| PC7ASL-930FE-SKE | Midpoint-C7 | Reflector: SPOT 10° | Radiant Silver | Dimmable (DALI) | 3000K | Eco-LED (CRI>90) | Reflector: Radiant Silver | Clear Cover | Eutrac Adaptor | 1350lm | 19W | |
| PC7ABL-930FE-BKE | Midpoint-C7 | Reflector: SPOT 10° | Jet Black | Dimmable (DALI) | 3000K | Eco-LED (CRI>90) | Reflector: Jet Black | Clear Cover | Eutrac Adaptor | 1350lm | 19W | |
| PC7AWL-930FE-GKE | Midpoint-C7 | Reflector: SPOT 10° | Snow White | Dimmable (DALI) | 3000K | Eco-LED (CRI>90) | Reflector: Satin Gold | Clear Cover | Eutrac Adaptor | 1350lm | 19W | |
| PC7AWL-930FE-BKE | Midpoint-C7 | Reflector: SPOT 10° | Snow White | Dimmable (DALI) | 3000K | Eco-LED (CRI>90) | Reflector: Jet Black | Clear Cover | Eutrac Adaptor | 1350lm | 19W |
