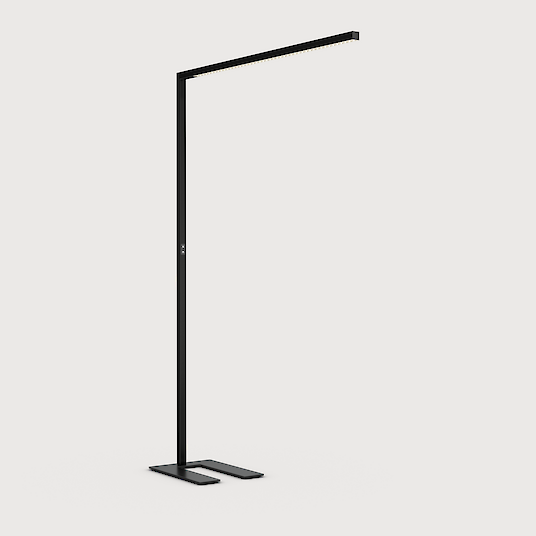

LED free-standing luminaire

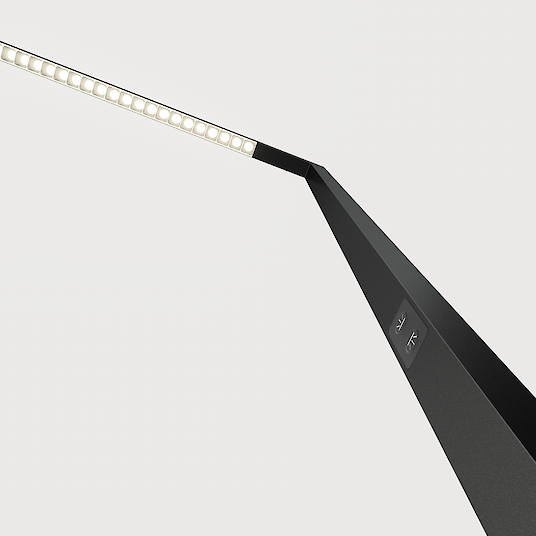

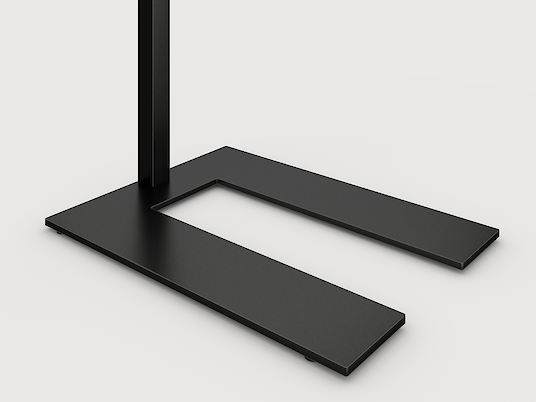

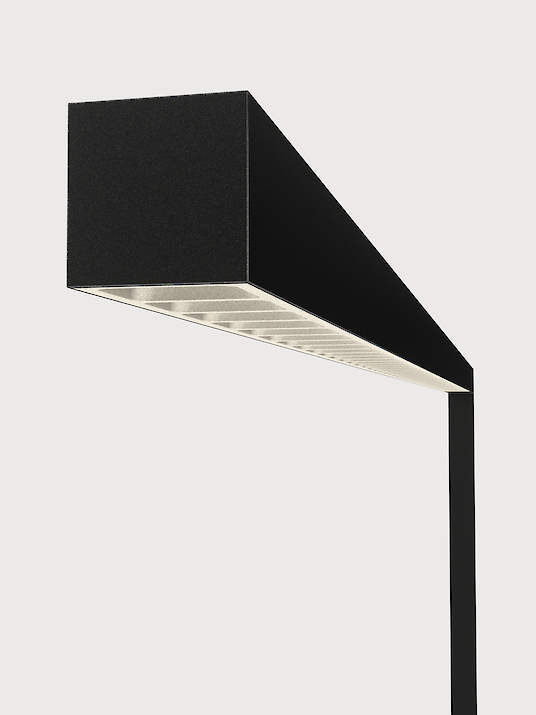

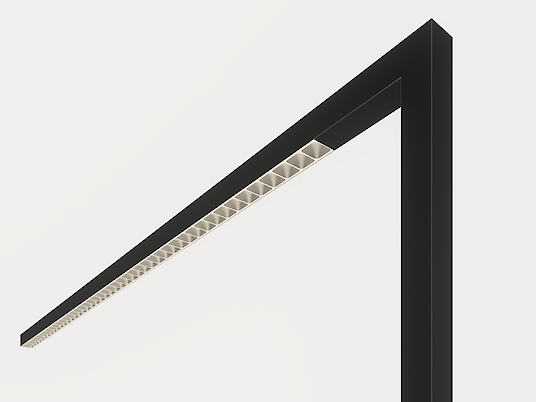

Direct-indirect light distribution. Luminaire body made of aluminum profile. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19). Louvre available in various colour finishes. Microprismatic screen with optimized glare reduction (UGR<19) especially for workplaces with uniform and enhanced light transmission. Intuitive pole mounted control panel for dimming and switching the direct/indirect light separately, joint control of the light chambers with Tuneable White or integration of multi-sensor or swarm technology. Optional: HCL-Control for automatic biodynamic light adapted to the course of the day. Colour temperature 2700K, 3000K, 3500K, 4000K, 6500K or Tuneable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Rectangular steel base plate with U- or Side Cut-Out for different table designs, colour matching luminaire body. 4m power cable with country-specific plug (EU, CH, UK).
Product adjustments
Multisensor | Swarm Control
Separately Dimmable
Ivory White | Snow White
Ivory White | Satin Silver
Ivory White | Jet Black
Ivory White | Anodic Champagne
Ivory White | Satin Copper
Ivory White | Satin Gold
Satin Silver | Jet Black
Satin Silver | Satin Silver
Jet Black | Jet Black
Jet Black | Anodic Champagne
Jet Black | Satin Gold
Anodic Champagne | Jet Black
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Base-Type | Reflector Colour Inside | Plug | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LSXLWR-835H-L1570-UG-A | Matric-SX | L=1570mm | Lens Louvre | Snow White | 3500K | Swarm Control | U-base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 15430lm | 106W | |
| LSXLSR-830H-L1570-UA-A | Matric-SX | L=1570mm | Lens Louvre | Radiant Silver | 3000K | Swarm Control | U-base | Reflector: Satin Silver | Schuko CEE 7/7 (E+F) | 14427lm | 106W | |
| LSXLWR-830H-L1570-UG-A | Matric-SX | L=1570mm | Lens Louvre | Snow White | 3000K | Swarm Control | U-base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 14427lm | 106W | |
| LSXLBR-830H-L1570-UB-A | Matric-SX | L=1570mm | Lens Louvre | Jet Black | 3000K | Swarm Control | U-base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 14427lm | 106W | |
| LSXLSR-835H-L1570-UA-A | Matric-SX | L=1570mm | Lens Louvre | Radiant Silver | 3500K | Swarm Control | U-base | Reflector: Satin Silver | Schuko CEE 7/7 (E+F) | 15430lm | 106W | |
| LSXLWM-840H-L1570-UW-A | Matric-SX | L=1570mm | Lens Louvre | Snow White | 4000K | Dim-Multisensor | U-base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 15430lm | 106W | |
| LSXLWX-835H-L1470-IW-A | Matric-SX | L=1470mm | Lens Louvre | Snow White | 3500K | Separately stepless dimmable | T-base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 15430lm | 106W | |
| LSXLBM-840H-L1570-UG-A | Matric-SX | L=1570mm | Lens Louvre | Jet Black | 4000K | Dim-Multisensor | U-base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 15430lm | 106W | |
| LSXLBM-840H-L1570-UB-A | Matric-SX | L=1570mm | Lens Louvre | Jet Black | 4000K | Dim-Multisensor | U-base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 15430lm | 106W | |
| LSXLWR-830H-L1570-UW-A | Matric-SX | L=1570mm | Lens Louvre | Snow White | 3000K | Swarm Control | U-base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 14427lm | 106W |
