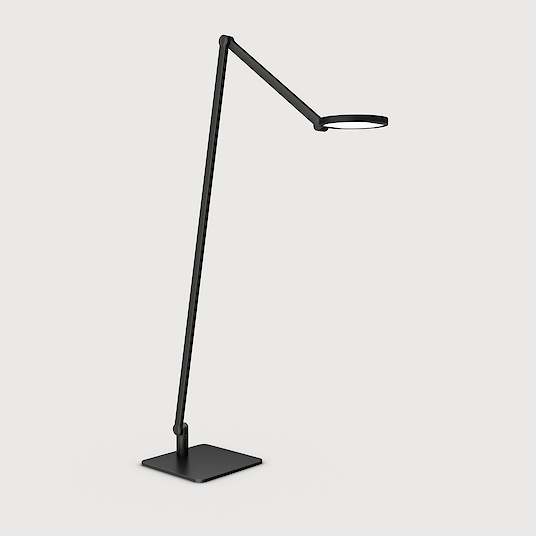

LED free-standing luminaire

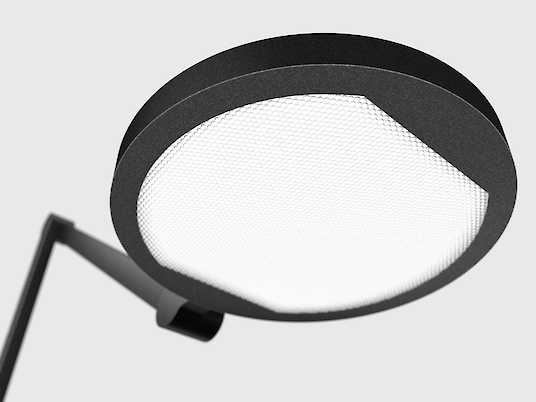

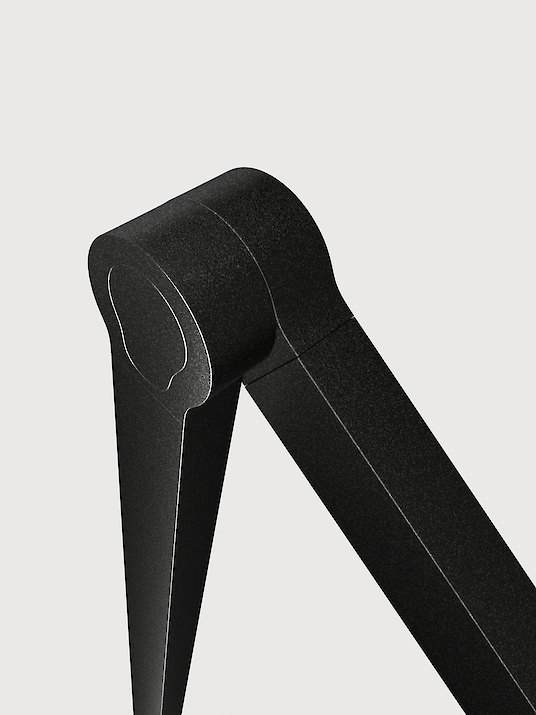

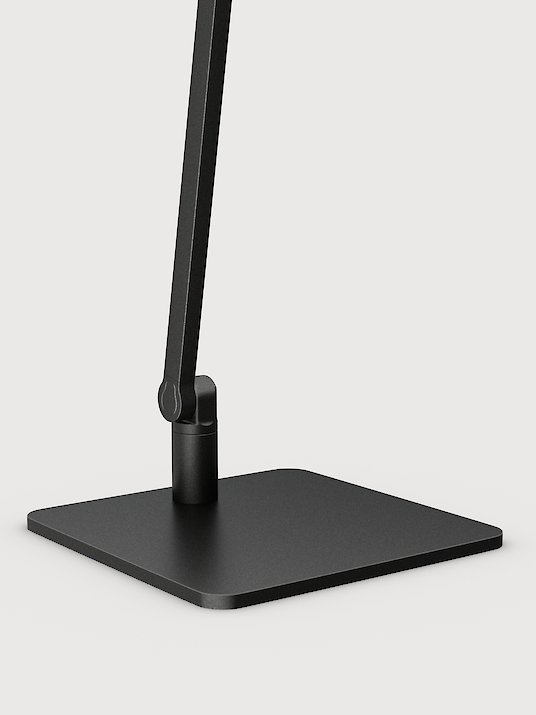

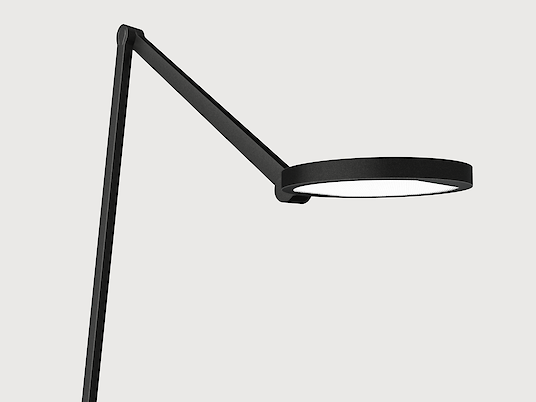

Direct only light distribution. Microprismatic screen made of acrylic glass for optimised glare control and light direction. Highest possible transmittance with homogeneous illumination of the relevant work areas. Minimalistic luminaire head with perfect uniform and enhanced light transmission. High-quality with precision aluminium joints. No visible cables, springs or cords. Surface available in white, silver, black or champagne coated. Intuitive control via touch control panel in the luminaire head. Light output level continuously dimmable. Standard colour temperature 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Steel Base plate.
Product adjustments
Snow White
Radiant Silver
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Base-Type | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| US1AVS-827M-D150-P | Lucille-S1 | D=150mm | Microprismatic screen | Ivory White | 2700K | Switch&dim | Rectangular base | 935lm | 13W | |
| US1AAS-827M-D150-P | Lucille-S1 | D=150mm | Microprismatic screen | Satin Silver | 2700K | Switch&dim | Rectangular base | 935lm | 13W | |
| US1ABS-827M-D150-P | Lucille-S1 | D=150mm | Microprismatic screen | Jet Black | 2700K | Switch&dim | Rectangular base | 935lm | 13W | |
| US1AVS-830M-D150-P | Lucille-S1 | D=150mm | Microprismatic screen | Ivory White | 3000K | Switch&dim | Rectangular base | 935lm | 13W | |
| US1AAS-830M-D150-P | Lucille-S1 | D=150mm | Microprismatic screen | Satin Silver | 3000K | Switch&dim | Rectangular base | 935lm | 13W | |
| US1ABS-830M-D150-P | Lucille-S1 | D=150mm | Microprismatic screen | Jet Black | 3000K | Switch&dim | Rectangular base | 935lm | 13W | |
| US1AVS-835M-D150-P | Lucille-S1 | D=150mm | Microprismatic screen | Ivory White | 3500K | Switch&dim | Rectangular base | 1000lm | 13W | |
| US1AAS-835M-D150-P | Lucille-S1 | D=150mm | Microprismatic screen | Satin Silver | 3500K | Switch&dim | Rectangular base | 1000lm | 13W | |
| US1ABS-835M-D150-P | Lucille-S1 | D=150mm | Microprismatic screen | Jet Black | 3500K | Switch&dim | Rectangular base | 1000lm | 13W | |
| US1AVS-840M-D150-P | Lucille-S1 | D=150mm | Microprismatic screen | Ivory White | 4000K | Switch&dim | Rectangular base | 1000lm | 13W |
