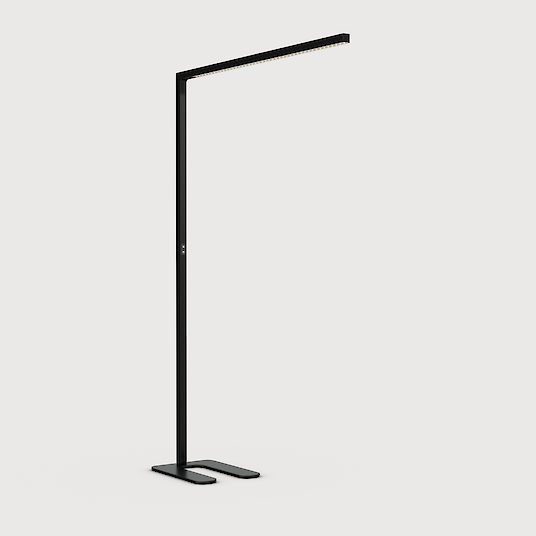

Liquid Line SX | System 40mm Floor One Head

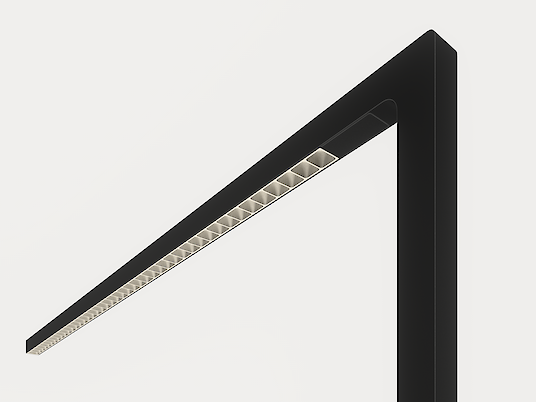

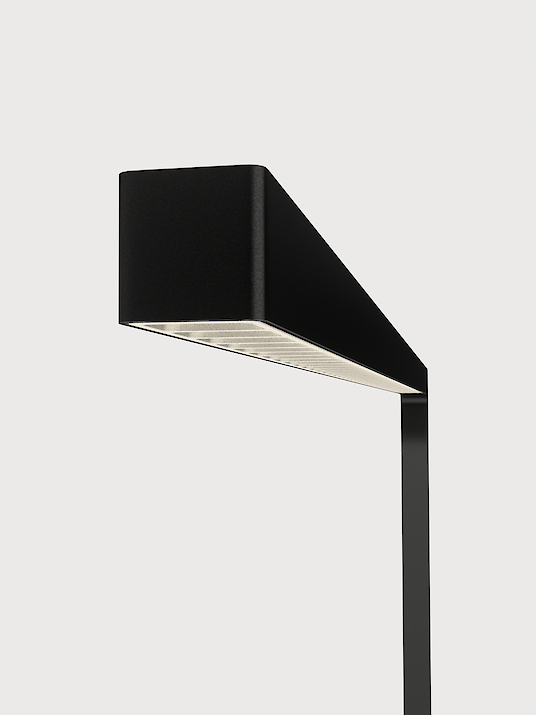

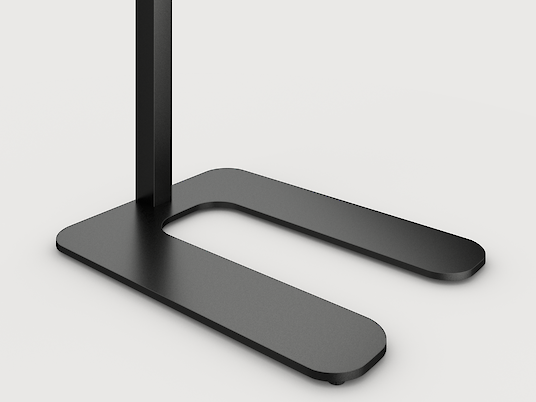

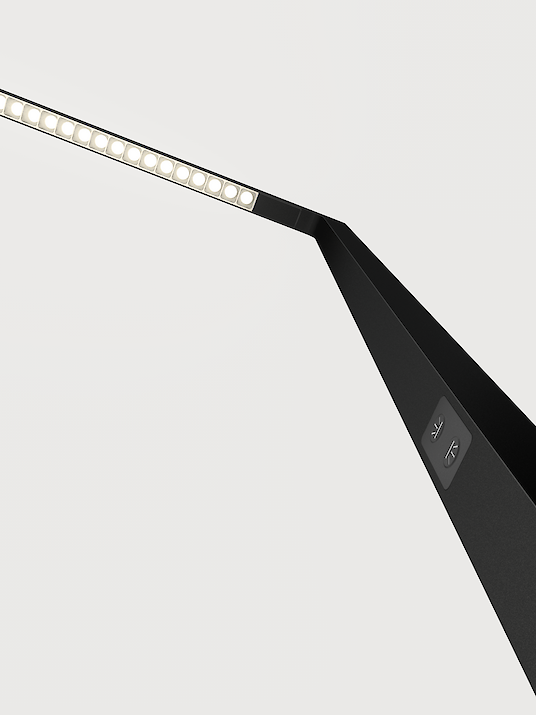

LED free-standing luminaire. Direct-indirect light distribution. Luminaire head with smooth curves made of aluminium, crafted in one piece with no visible seams. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Direct light using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19). Louvre available in various colour finishes. Intuitive pole mounted control panel for dimming and switching the direct/indirect light separately, joint control of the light chambers with Tuneable White or integration of multi-sensor or swarm technology. Optional: HCL Control for automatic, time dependent, biodynamic lighting. Colour temperature 2700K, 3000K, 3500K, 4000K, 6500K or Tuneable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Steel base plate for different table designs, colour matching luminaire body. 4m power cable with country-specific plug (EU, CH, UK).

Product adjustments

Multisensor | HCL | Swarm Control

Separately Dimmable

Snow White | Snow White

Snow White | Satin Silver

Snow White | Jet Black

Snow White | Anodic Champagne

Snow White | Satin Copper

Snow White | Satin Gold

Configuration and data download

Length L/Diameter D (mm)

Light characteristics

Optical system

Surface finish

Colour temperature

Control

Current/Power

Base-Type

Reflector Colour Inside

Plug

Apply
Filter
Downloads Article code Productname Length L/Diameter D (mm) Optical system Surface finish Colour temperature Control Base-Type Reflector Colour Inside Plug Luminous Flux Power consumption
QSXASR-830M-L1590-X-A Liquid Line-SX L=1590mm Microprismatic screen Radiant Silver 3000K Swarm Control X-base (Two Side Cut-Out) Schuko CEE 7/7 (E+F) 9490lm 70W
QSXABR-835H-L1590-H-A Liquid Line-SX L=1590mm Microprismatic screen Jet Black 3500K Swarm Control H-base Schuko CEE 7/7 (E+F) 15470lm 112W
QSXABX-830M-L1490-X-A Liquid Line-SX L=1490mm Microprismatic screen Jet Black 3000K Separately stepless dimmable X-base (Two Side Cut-Out) Schuko CEE 7/7 (E+F) 9490lm 70W
QSXABX-840M-L1490-X-A Liquid Line-SX L=1490mm Microprismatic screen Jet Black 4000K Separately stepless dimmable X-base (Two Side Cut-Out) Schuko CEE 7/7 (E+F) 10150lm 70W
QSXABX-835M-L1490-X-A Liquid Line-SX L=1490mm Microprismatic screen Jet Black 3500K Separately stepless dimmable X-base (Two Side Cut-Out) Schuko CEE 7/7 (E+F) 10150lm 70W
QSXABM-835M-L1590-H-A Liquid Line-SX L=1590mm Microprismatic screen Jet Black 3500K Dim-Multisensor H-base Schuko CEE 7/7 (E+F) 10150lm 70W
QSXABM-830H-L1590-H-A Liquid Line-SX L=1590mm Microprismatic screen Jet Black 3000K Dim-Multisensor H-base Schuko CEE 7/7 (E+F) 14464lm 112W
QSXABM-840H-L1590-H-A Liquid Line-SX L=1590mm Microprismatic screen Jet Black 4000K Dim-Multisensor H-base Schuko CEE 7/7 (E+F) 15470lm 112W
QSXABR-835M-L1590-H-A Liquid Line-SX L=1590mm Microprismatic screen Jet Black 3500K Swarm Control H-base Schuko CEE 7/7 (E+F) 10150lm 70W
QSXABR-830H-L1590-H-A Liquid Line-SX L=1590mm Microprismatic screen Jet Black 3000K Swarm Control H-base Schuko CEE 7/7 (E+F) 14464lm 112W
