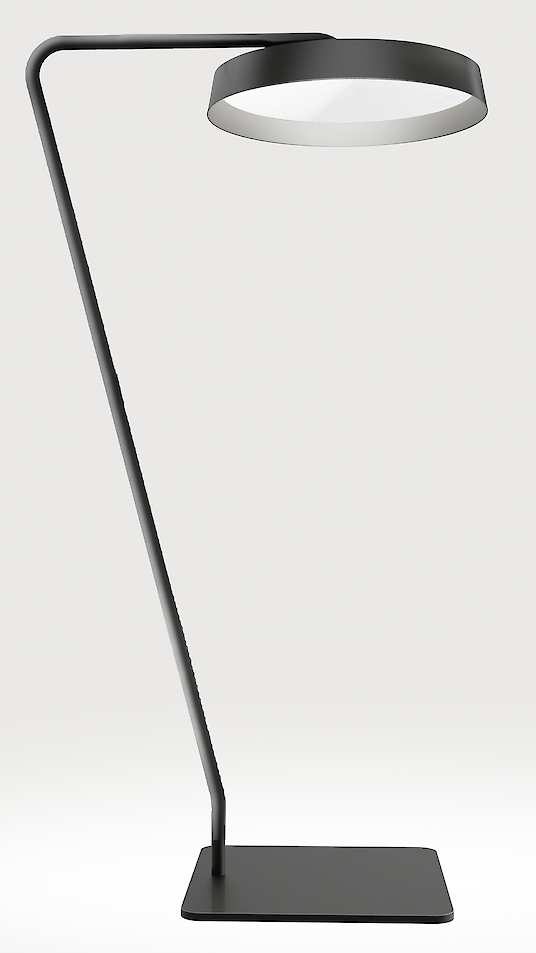

LED free-standing luminaire with rebated lens optic and inner décor
Direct-indirect light distribution. Luminaire shade made of high-quality processed fiberglass. Outer housing and Décorative reflector ring available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Intuitive control panel in luminaire pole for dimming and switching the direct/indirect light separately, for Tuneable White common control of the light chambers. Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tuneable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Base plate made of steel, colour matching luminaire body. 4m power cable with country-specific plug (EU, CH, UK).
Product adjustments
Separately Dimmable
Snow White | Satin Gold
Snow White | Satin Copper
Satin Silver | Jet Black
Jet Black | Satin Silver
Jet Black | Satin Gold
Jet Black | Anodic Champagne
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Base-Type | Reflector Colour Inside | Plug | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS6AWX-827M-D650-UW-A | Beam Me Up-S6 | D=650mm | Microprismatic screen | Snow White | 2700K | Separately stepless dimmable | U-base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS6AWX-827M-D650-UB-A | Beam Me Up-S6 | D=650mm | Microprismatic screen | Snow White | 2700K | Separately stepless dimmable | U-base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS6AWX-827M-D650-UG-A | Beam Me Up-S6 | D=650mm | Microprismatic screen | Snow White | 2700K | Separately stepless dimmable | U-base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS6AAX-827M-D650-UA-A | Beam Me Up-S6 | D=650mm | Microprismatic screen | Satin Silver | 2700K | Separately stepless dimmable | U-base | Reflector: Satin Silver | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS6ABX-827M-D650-UB-A | Beam Me Up-S6 | D=650mm | Microprismatic screen | Jet Black | 2700K | Separately stepless dimmable | U-base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS6ABX-827M-D650-UG-A | Beam Me Up-S6 | D=650mm | Microprismatic screen | Jet Black | 2700K | Separately stepless dimmable | U-base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS6AWX-830M-D650-UW-A | Beam Me Up-S6 | D=650mm | Microprismatic screen | Snow White | 3000K | Separately stepless dimmable | U-base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS6AWX-830M-D650-UB-A | Beam Me Up-S6 | D=650mm | Microprismatic screen | Snow White | 3000K | Separately stepless dimmable | U-base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS6AWX-830M-D650-UG-A | Beam Me Up-S6 | D=650mm | Microprismatic screen | Snow White | 3000K | Separately stepless dimmable | U-base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 11127lm | 93W | |
| MS6AAX-830M-D650-UA-A | Beam Me Up-S6 | D=650mm | Microprismatic screen | Satin Silver | 3000K | Separately stepless dimmable | U-base | Reflector: Satin Silver | Schuko CEE 7/7 (E+F) | 11127lm | 93W |
