LED free-standing luminaire

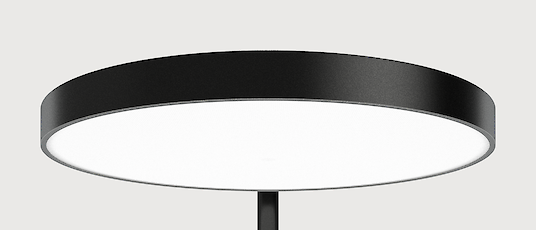

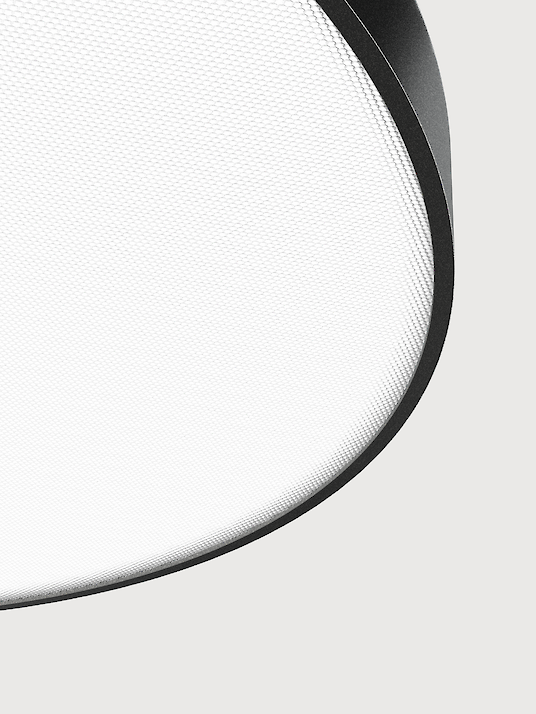

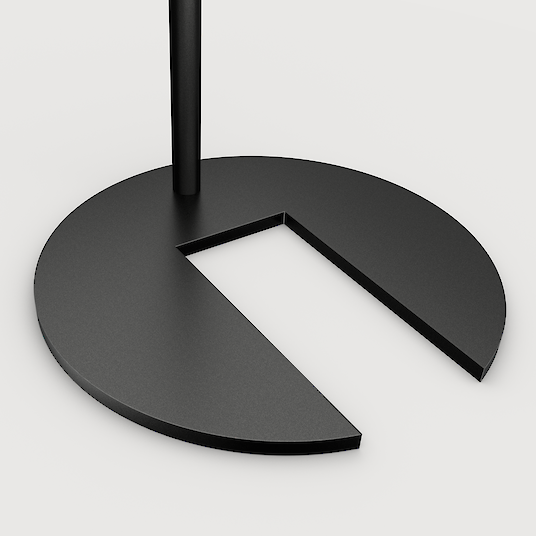

Direct-indirect light distribution. Luminaire head made of aluminium profile with slender overall height of 38mm and diameter of 500mm. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Intuitive pole mounted control panel for dimming and switching the direct/indirect light separately, joint control of the light chambers with Tuneable White or integration of multisensor or swarm technology. Optional: HCL Control for automatic, time dependent, biodynamic lighting. Colour temperature 2700K, 3000K, 3500K, 4000K, 6500K or Tuneable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Round steel base plate with U-Cut-Out, colour matching luminaire body. 4m power cable with country-specific plug (EU, CH, UK).
Product adjustments
Multisensor | HCL | Swarm Control
Separately Dimmable
Snow White
Radiant Silver
Urban Graphite
Jet Black
Anodic Champagne
Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Base-Type | Plug | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BS2ABM-840M-D500-U-A | Basic-S2 | D=500mm | Microprismatic screen | Jet Black | 4000K | Dim-Multisensor | U-base | Schuko CEE 7/7 (E+F) | 11700lm | 81W | |
| BS2AWR-830M-D500-U-A | Basic-S2 | D=500mm | Microprismatic screen | Snow White | 3000K | Swarm Control | U-base | Schuko CEE 7/7 (E+F) | 10940lm | 81W | |
| BS2ASR-830M-D500-U-A | Basic-S2 | D=500mm | Microprismatic screen | Radiant Silver | 3000K | Swarm Control | U-base | Schuko CEE 7/7 (E+F) | 10940lm | 81W | |
| BS2ABR-830M-D500-U-A | Basic-S2 | D=500mm | Microprismatic screen | Jet Black | 3000K | Swarm Control | U-base | Schuko CEE 7/7 (E+F) | 10940lm | 81W | |
| BS2AWR-835M-D500-U-A | Basic-S2 | D=500mm | Microprismatic screen | Snow White | 3500K | Swarm Control | U-base | Schuko CEE 7/7 (E+F) | 11700lm | 81W | |
| BS2ASR-835M-D500-U-A | Basic-S2 | D=500mm | Microprismatic screen | Radiant Silver | 3500K | Swarm Control | U-base | Schuko CEE 7/7 (E+F) | 11700lm | 81W | |
| BS2ABR-835M-D500-U-A | Basic-S2 | D=500mm | Microprismatic screen | Jet Black | 3500K | Swarm Control | U-base | Schuko CEE 7/7 (E+F) | 11700lm | 81W | |
| BS2AWR-840M-D500-U-A | Basic-S2 | D=500mm | Microprismatic screen | Snow White | 4000K | Swarm Control | U-base | Schuko CEE 7/7 (E+F) | 11700lm | 81W | |
| BS2ASR-840M-D500-U-A | Basic-S2 | D=500mm | Microprismatic screen | Radiant Silver | 4000K | Swarm Control | U-base | Schuko CEE 7/7 (E+F) | 11700lm | 81W | |
| BS2ABR-840M-D500-U-A | Basic-S2 | D=500mm | Microprismatic screen | Jet Black | 4000K | Swarm Control | U-base | Schuko CEE 7/7 (E+F) | 11700lm | 81W |
